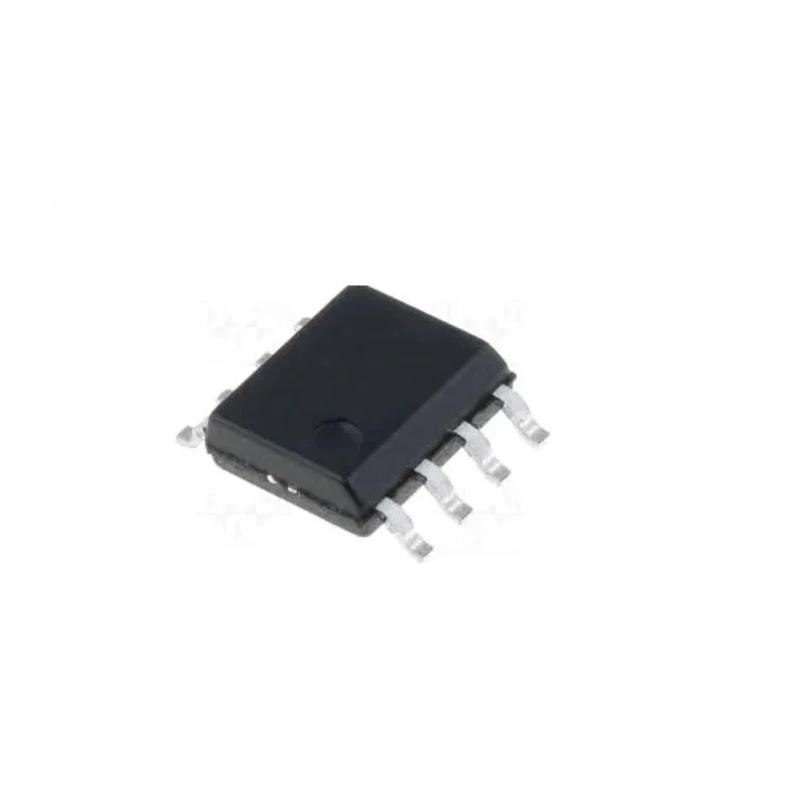

Microchip Surface Mount Temperature Sensor 2 Wire Serial Interface 0.5°C Accuracy 8-Pin SOIC TCN75
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | 0.5 °C |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 5mm |
| Model | TCN75 |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | TCN75 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Sub Type | Temperature |
| Minimum Operating Temperature | -55°C |
| Interface Type | 2 Wire Serial |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- This device operates over a temperature range from -55 °C to 125 °C.
- The sensor is programmable for trip point and hysteresis with power-up default settings.
- Standard 2-wire serial interface enables communication and configuration.
- Low power consumption with a typical operating current of 250 microamperes.
- Thermal event output can serve as interrupt or comparator for thermostat-like operation.
- Multiple TCN75 sensors (up to 8) can share the same bus for efficient system integration.
- The device is surface mountable, packaged in an SOIC form factor measuring 5 mm x 3.1 mm x 1.1 mm.
- Operating supply voltage ranges from 2.7 V to 5.5 V with 5 V tolerant input/output pins.
Product Description
Microchip TCN75 is a highly accurate surface mount temperature sensor featuring ±0.5 °C typical accuracy and an 8-pin SOIC package. Designed for robust temperature monitoring and control, it communicates over a 2-wire serial bus compatible with standard protocols.
This device operates across a wide temperature range from -55 °C up to +125 °C, making it suitable for diverse industrial, commercial, and HVAC applications. The sensor is fully programmable for temperature trip point and hysteresis, allowing precise temperature threshold detection and control tailored to specific needs.
The INT/CMPTR output can be configured as a simple comparator to emulate thermostat behavior or as an interrupt for signaling thermal events, enhancing system integration flexibility. With the capacity to connect up to 8 TCN75 sensors on the same bus, it supports complex multi-point temperature sensing architectures.
The device operates at a low supply current of approximately 250 microamperes, extending battery life in portable applications. The operating supply voltage ranges between 2.7 V to 5.5 V, with 5 V tolerant I/O pins when powered at 3 V, further adding versatility in electronic system design.
Its compact 8-pin SOIC package measures 5 mm in length, 3.1 mm in width, and 1.1 mm in height, ideal for surface mounting on densely packed circuits. The package is RoHS compliant, ensuring environmentally friendly manufacturing standards.
0.5 °C typical accuracy for precise temperature measurement. Wide temperature operating range from -55 °C to +125 °C. Programmable trip point and hysteresis with power-up defaults. 2-wire serial interface compatible with industry standards.
Thermal event alarm output configurable as interrupt or comparator. Low power consumption at 250 µA typical. Up to 8 sensors can share a single 2-wire bus. 5 V tolerant I/O pins at 3 V supply voltage. Compact SOIC package suitable for surface mount applications.
Common applications include industrial temperature monitoring, HVAC control systems, manufacturing process control, laboratory instrumentation, and general environmental sensing. This product is ideal for engineers and developers seeking a reliable and programmable temperature sensor solution.
Explore the comprehensive selection of Temperature Sensors and related components at EnvMart to find optimal solutions for your technical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a temperature range from -55 °C to +125 °C, making it suitable for various applications.
The TCN75 features a typical accuracy of ±0.5 °C, ensuring precise temperature measurements.
It uses a standard 2-wire serial interface, allowing for easy integration with other devices.
The typical operating current for the TCN75 is approximately 250 microamperes, which helps extend battery life in portable applications.
Up to 8 TCN75 sensors can share the same 2-wire bus, facilitating efficient system integration.
The sensor is packaged in an 8-pin SOIC form factor, measuring 5 mm in length, 3.1 mm in width, and 1.1 mm in height.
The operating supply voltage for this model ranges from 2.7 V to 5.5 V, with 5 V tolerant input/output pins.
This temperature sensor is designed for surface mounting, making it suitable for densely packed circuits.
Yes, the TCN75 is RoHS compliant, ensuring it meets environmentally friendly manufacturing standards.
Common applications include industrial temperature monitoring, HVAC control systems, and laboratory instrumentation, among others.
Yes, the thermal event output can be configured as an interrupt or as a comparator for thermostat-like operation.
The TCN75 is manufactured in India.
