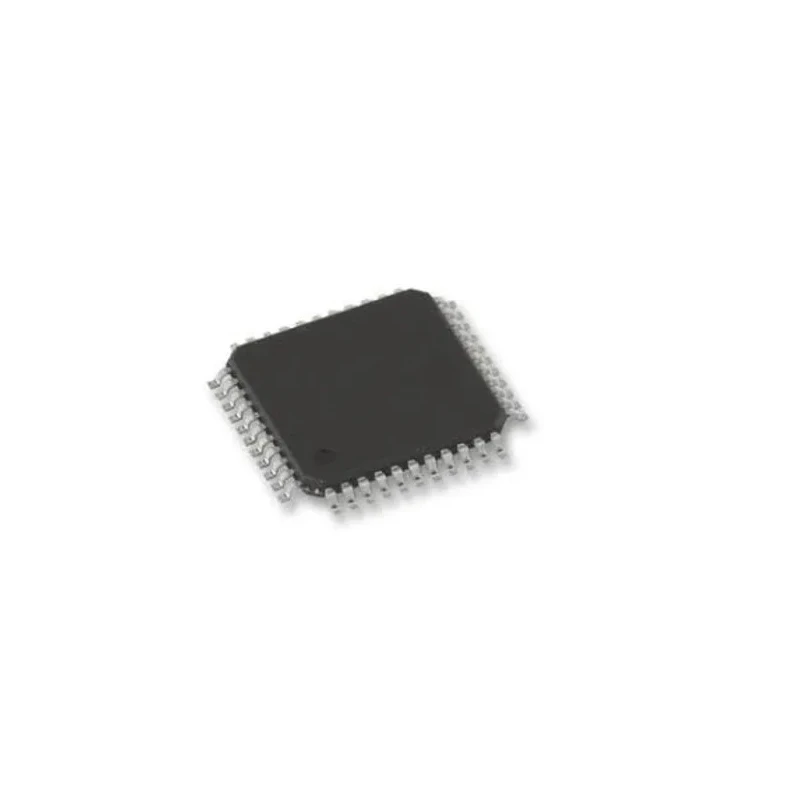

Microchip 8-bit PIC Microcontroller, 64 MHz, 128kB FLASH, 44-Pin TQFP PIC18F47Q43-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 10mm |
| Model | PIC18F47Q43-I/PT |
| Width | 1mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 36 |
| Instruction Set Architecture | RISC |
| ADCs | 35 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 8 Bit |
Key Features
- Features a 12-bit ADC with Computation (ADCC) for capacitive touch sensing and filtering.
- Includes a new 16-bit PWM module providing dual independent outputs.
- Equipped with six DMA controllers for hardware and software data transfers.
- Operates at a supply voltage range from 1.8V to 5.5V with low power consumption.
- Supports vectored interrupt controller with fixed latency and selectable priority levels.
- Has 36 user-programmable I/O pins and includes 1 x 8-bit DAC.
- Program memory size of 128kB FLASH and RAM size of 8kB.
- Complies with REACH and RoHS3 standards.
Product Description
Microchip PIC18F47Q43-I/PT is an 8-bit PIC microcontroller designed with a RISC architecture optimized for high performance at 64 MHz clock frequency. It features 128kB of FLASH program memory and 8kB RAM, making it suitable for embedded systems requiring robust processing capabilities.
This microcontroller includes 35 channels of 12-bit ADC with Computation (ADCC) to facilitate advanced capacitive touch sensing with capabilities such as averaging, filtering, and threshold comparison. It has a new 16-bit PWM module generating dual independent PWM outputs on the same time base, expanding flexibility in motor control and power management applications.
Other advanced features include a vectored interrupt controller with fixed latency of three instruction cycles, six Direct Memory Access (DMA) controllers supporting programmable data transfers triggered by hardware or software, and a Memory Access Partition (MAP) supporting data protection schemes and bootloader applications. It also includes a Device Information Area (DIA) that stores factory calibration values enhancing temperature sensor accuracy.
The device supports a wide voltage range from 1.8V minimum to 5.5V maximum supply voltage with operating temperature ranging from -40°C to 85°C. It contains 36 programmable I/O pins and 1 x 8-bit DAC.
Constructed in a compact 44-pin TQFP surface mount package measuring 10mm by 1mm, this microcontroller meets REACH and RoHS3 environmental standards.
This PIC microcontroller is ideal for industrial, embedded, automotive, consumer electronics, and IoT applications requiring reliable control, power efficiency, and advanced peripheral integration.
Features 12-bit ADC with capacitive touch sensing capabilities. High-resolution PWM module with dual independent outputs. Multiple DMA controllers offer efficient data handling. Supports various communication protocols including UART, SPI, and I2C.
Operating voltage range suitable for low power systems. Compliance with major environmental safety standards. Explore a broad range of microcontrollers and embedded solutions in the Microcontroller category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC18F47Q43-I/PT operates at a maximum clock frequency of 64 MHz.
It features a program memory size of 128kB FLASH.
This model includes 36 user-programmable I/O pins.
It operates within a supply voltage range from 1.8V to 5.5V.
The operating temperature range is from -40°C to 85°C.
It supports 35 channels of 12-bit ADC with Computation (ADCC).
It is constructed in a 44-pin TQFP surface mount package.
It includes a 16-bit PWM module providing dual independent outputs.
It complies with REACH and RoHS3 environmental standards.
This model supports various communication protocols including UART, SPI, and I2C.
It has a RAM size of 8kB.
The device is based on a RISC architecture.
