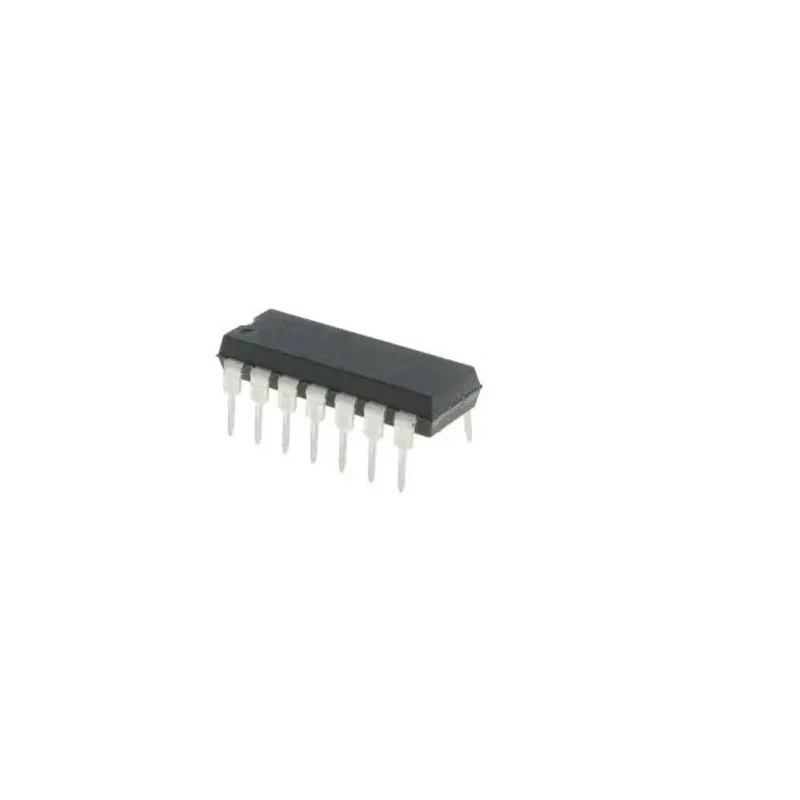

Microchip 8 bit PIC Microcontroller 28kB FLASH 32 MHz 14-Pin DIP PIC16F18426-I/P

Microchip PIC16F18426-I/P is an 8 bit PIC microcontroller designed for versatile embedded system applications. It features a 28kB FLASH program memory and operates at a maximum clock frequency of 32 MHz within a compact 14-pin Dual In-line Package (DIP) suitable for through-hole mounting.

This microcontroller integrates intelligent analog functions and core independent peripherals (CIPs) enhancing performance while minimizing power consumption. The device supports a wide range of communication interfaces including DSM, SPI, I2C, Peripheral Pin Select (PPS), LIN, and EUSART, making it adaptable to many system designs.

Operating voltage ranges from 2.5V to 5.5V, allowing it to be used in various low power and general purpose applications. It includes 2kB of RAM and a 10-bit Analog-to-Digital Converter (ADC) providing high-accuracy data acquisition capabilities.

The PIC16F18426-I/P employs a RISC instruction set architecture optimized for low instruction cycle times, achieving a minimum 125 ns instruction cycle, which supports rapid computational throughput. The device has 14 programmable I/O pins and 8 timers, allowing precise timing and control in embedded projects.

It is designed to operate efficiently in harsh environments with an operating temperature range from -40°C to 85°C and complies with REACH and RoHS environmental standards, ensuring sustainability and safety.

Intelligent analog design with core independent peripherals and communication interfaces. Wide voltage operation from 2.5 V to 5.5 V for flexible power supply. Includes 2kB RAM and a 10-bit ADC for precise measurements. Supports DSM, SPI, I2C, PPS, LIN, and EUSART interfaces.

RISC architecture with 32 MHz clock and 125 ns instruction cycle. 14 Programmable I/Os and 8 timers for control versatility. Operates between -40°C to 85°C ambient temperatures. Complies with REACH and RoHS standards for environmental safety.

This microcontroller is ideal for applications in industrial control systems, consumer electronics, automotive subsystems, and other embedded technology solutions requiring efficient processing, flexible I/O, and low power consumption. Its robust feature set makes it applicable in laboratory instrumentation, manufacturing automation, communication devices, and more.
