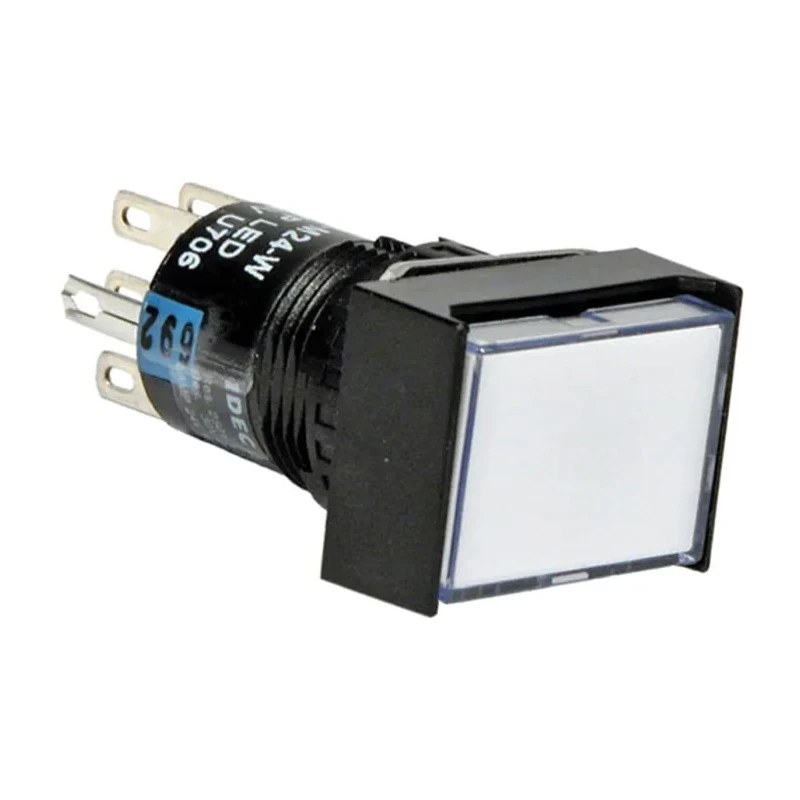

Idec AL Series Illuminated Push Button Switch, Latching, Panel Mount, 30 mm Cutout, DPDT, White LED, IP40, 250 V AL6H-A24-W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Idec |
| Height | 33.5mm |
| Model | AL6H-A24-W |
| IP Rating | IP40 |
| Width | 24mm |
| Mount Type | Panel |
| Series | AL |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Quick Connect, Solder Tag |
| Standards/Approvals | CSA, UL |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Colour | Yellow |
| Actuator Style | Button |
| Switch Contact Current | 1A |
| Contact AC Voltage | 250V ac |
Key Features
- This push button switch features a yellow actuator color and white LED illumination.
- Designed for panel mounting with a 30 mm cutout, IP40 protection rating ensuring dust resistance.
- Double Pole Double Throw (DPDT) contact configuration for versatile switching.
- Operates at 250 V AC contact voltage with a contact current rating of 1 A.
- Suitable for operating temperatures ranging from -25°C to 120°C.
- Quick connect and solder tag terminal types for reliable electrical connections.
- Compact dimensions with a height of 33.5 mm and width of 24 mm, allowing space-saving installation.
- Certified to CSA and UL standards ensuring industrial safety compliance.
Product Description
Idec AL6H-A24-W is an AL Series illuminated push button switch designed for industrial and electrical automation applications. It features a yellow colored actuator with a white LED illumination providing clear, visible status indication.
The switch utilizes a latching operation type, making it ideal for control panel interfaces where on-off toggling is required. It is intended for panel mount installation with a standard 30 mm cutout size, facilitating easy integration into control cabinets.
This push button switch incorporates a robust Double Pole Double Throw (DPDT) contact configuration rated for 250 V AC and a contact current of 1 A. Quick connect and solder tag terminals support versatile wiring methods for secure electrical connections.
It has an IP40 ingress protection rating, protecting against solid objects and ensuring reliable operation in industrial environments. The compact dimensions of 33.5 mm in height and 24 mm in width support space-efficient design requirements.
Operating temperature ranges from -25°C to 120°C, making it suitable for demanding temperature conditions typically encountered in electrical and automation systems. The switch is certified to CSA and UL standards, providing assurance of industry-recognized safety and quality.
This product is widely used in industrial automation, manufacturing controls, electrical panels, and machinery controls. Its snap action and compact form factor make it suitable for PLC inputs, logic level switching, and other control applications requiring reliable push button actuation.
Idec offers a variety of push button options including illuminated and non-illuminated devices, selectors, pilot lights, and reset switches. Installation and wiring are simplified via quick connect and solder tag terminals.
For professional industrial setups, this Idec AL Series push button switch AL6H-A24-W ensures reliable switching performance with clear LED indication and sturdy build quality. Explore more options in the Switches & Sockets category at EnvMart for your automation needs.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing versatile switching capabilities.
It operates at a contact voltage of 250 V AC with a contact current rating of 1 A.
The switch requires a standard panel cutout size of 30 mm for installation.
This unit has a height of 33.5 mm and a width of 24 mm, supporting space-efficient design.
It has an IP40 ingress protection rating, ensuring resistance against solid objects.
The switch operates effectively within a temperature range of -25°C to 120°C.
It features quick connect and solder tag terminal types for reliable electrical connections.
This model is certified to CSA and UL standards, ensuring compliance with industrial safety requirements.
The actuator is yellow, and it features white LED illumination for clear status indication.
Yes, it is widely used in industrial automation, manufacturing controls, and electrical panels due to its robust design.
It utilizes a latching operation type, making it suitable for on-off toggling in control panels.
This switch is part of the Idec AL Series, which includes various illuminated and non-illuminated options.
