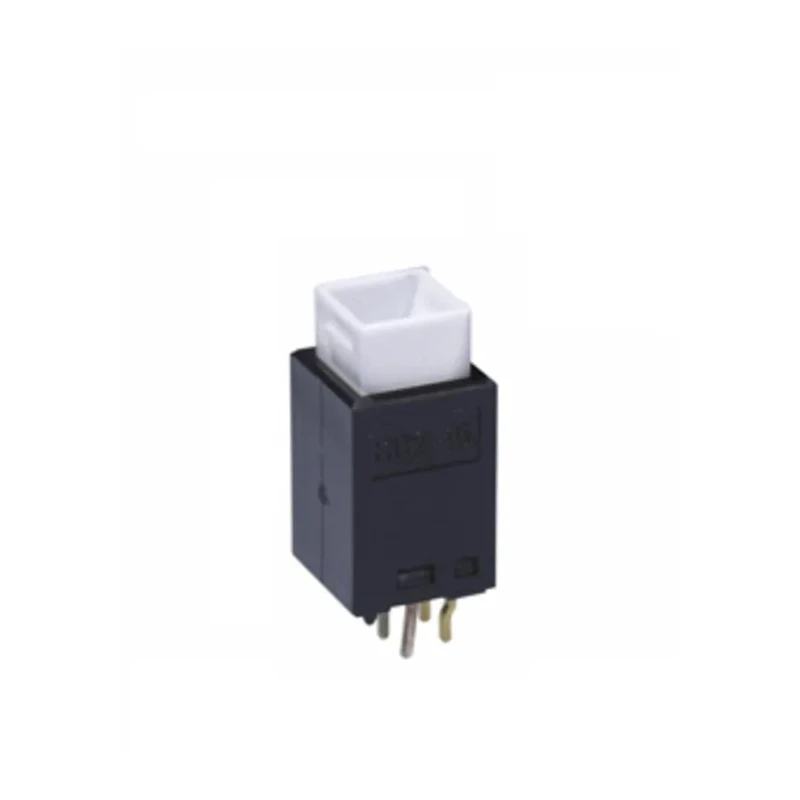

NKK Switches HB Series Illuminated Push Button Switch Off-On Through Hole 8 mm Cutout SPST Red Green LED 28 V dc HB215SKG03CF
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | NKK Switches |
| Height | 17mm |
| Model | HB215SKG03CF |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | HB |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 8 mm |
| Terminal type | PC Pin |
| Standards/Approvals | CSA, UL Recognised |
| LED Colour | Red, Green |
| Switch Operation | Off-On |
| Actuator Colour | Black |
| Contact DC Voltage | 28V dc |
| Actuator Style | Plunger |
| Contact AC Voltage | 28V ac |
| Legend | Option of Legends on Caps or Film Insert |
Key Features
- Compact design with 17 mm height and 7.5 mm width for easy integration.
- Features a bicolour red and green LED illumination for clear status indication.
- SPST configuration with through hole mount and PC pin terminals ensures secure and reliable connections.
- Operates at 28 V dc and 28 V ac for versatile electrical applications.
- Plunger actuator style with black colour for durable and tactile feedback.
- Operates reliably across a temperature range of -25°C to 50°C.
- Equipped with Sliding Twin Crossbar mechanism for smooth positive detent actuation and long life.
- Approvals include CSA and UL recognition ensuring compliance and quality.
Product Description
NKK Switches HB215SKG03CF is a high-quality illuminated push button switch from the HB Series designed for electrical, automation, and control systems. This push button switch provides Off-On operation with a compact 8 mm panel cutout size and through hole mounting, making it suitable for PCB installations requiring reliable tactile feedback.
The switch features a bicolour LED illumination with red and green LEDs, providing full-face illumination to clearly indicate operational status. Its plunger-style black actuator offers crisp tactile feedback with quiet actuation, ideal for broadcast equipment, telecommunication devices, and medical instrumentation.
Compact and robust, the switch has a height of 17 mm from PCB to top of cap and a 7.5 mm square cap. The Sliding Twin Crossbar (STC) mechanism ensures stable, logic-level reliability with positive detent actuation and long life expectancy. Power terminals are crimped to secure PCB mounting and withstand soldering processes without dislodgement.
Operating voltage is rated at 28 V dc and 28 V ac, with a standard operating temperature range from -25°C up to 50°C. This switch is CSA and UL recognised, meeting high safety and quality standards.
Typical applications include broadcast systems, telecommunications, medical equipment, and various measuring instruments requiring robust, visible push button controls with dual LED status indicators.
Compact design with 17 mm height and 7.5 mm width for seamless installation. Bicolour red and green LED illumination for clear operational feedback. SPST contact configuration with reliable through hole mount. Durable plunger actuator with smooth tactile response.
Operates safely between -25°C and 50°C temperature range. Sliding Twin Crossbar mechanism for enhanced contact stability and long service life. CSA and UL recognised for quality assurance. Suitable for industrial, broadcast, telecommunications, medical, and instrumentation applications.
Discover a wide range of Push Button Switches and components in the Electronics & Electricals category at EnvMart, providing durable and reliable controls for various industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 28 V dc and 28 V ac, making it suitable for various electrical applications.
The switch requires an 8 mm panel cutout for proper installation.
It features a Single Pole Single Throw (SPST) contact configuration, allowing for Off-On operation.
The switch has a height of 17 mm and a width of 7.5 mm, providing a compact design for easy integration.
It utilizes a plunger actuator style, which provides tactile feedback during operation.
This unit operates reliably across a temperature range of -25°C to 50°C.
It is equipped with PC pin terminals that ensure secure connections and reliable PCB mounting.
The HB215SKG03CF is CSA and UL recognised, ensuring compliance with safety and quality standards.
The switch features bicolour LED illumination with red and green colors for clear operational status indication.
It employs a Sliding Twin Crossbar mechanism, which ensures stable actuation and long life expectancy.
Yes, there is an option for legends on caps or film inserts for customization.
Typical applications include broadcast systems, telecommunications, medical equipment, and various measuring instruments.
