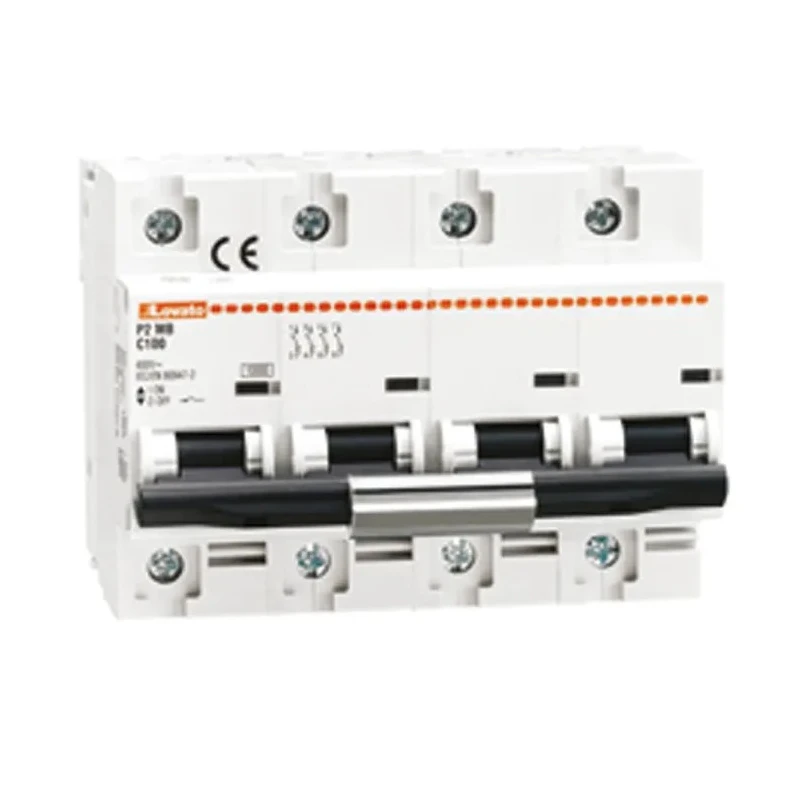

Lovato Electric Modulo Miniature Circuit Breaker, 4-Pole, 100A, Type C, 400V ac AC, 60V dc DC, 10 kA Breaking P2MB
Specifications
| Country of Origin | India |
|---|---|
| Range | Modulo |
| Brand | Lovato Electric |
| Height | 85mm |
| Model | P2MB |
| Depth | 80mm |
| IP Rating | IP20 |
| Width | 108mm |
| Mount Type | DIN Rail |
| Current Rating | 100A |
| Series | P2MB |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 4 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Break Time | Instantaneous |
| Rated Impulse Withstand Voltage | 4kV |
| Rated Insulation Voltage | 400V |
Key Features
- Rated for 400V AC and 60V DC operation.
- Breaking capacity of 10 kA ensures reliable interruption of fault currents.
- Equipped with thermal magnetic tripping mechanism for precise protection.
- Compact DIN rail mountable design with screw terminal connections.
- IP20 protection rating suitable for indoor electrical panels.
- Compliant with IEC/EN/BS standards and approvals including CSA, cURus, EAC, and UL 1077.
- Instantaneous break time for rapid fault response.
Product Description
Lovato Electric P2MB Miniature Circuit Breaker is a high-quality electrical protection device designed to provide superior circuit interruption for industrial and commercial electrical installations. Featuring a 4-pole configuration, it supports a rated current of 100A with a Type C trip curve suitable for general applications requiring moderate inrush current tolerance.
This breaker operates reliably at 400V AC and 60V DC, making it versatile for AC and DC circuits. It boasts a robust breaking capacity of 10 kA, ensuring that it can safely interrupt high fault currents without damage or hazard.
The device uses a thermal magnetic mechanism which combines thermal tripping for overload protection and instantaneous magnetic tripping for short circuit detection, providing fast and reliable operation under fault conditions. It is designed for DIN rail mounting with screw terminals for secure electrical connections, facilitating easy installation and maintenance.
The compact physical dimensions of 108 mm width, 85 mm height, and 80 mm depth allow it to fit seamlessly into electrical distribution panels. The unit carries international standards and approvals including CSA, cURus, EAC, IEC/EN/BS 60898-1, IEC/EN/BS 60947-2, and UL 1077 certifications, attesting to its quality and safety compliance.
The P2MB series is part of the Modulo range by Lovato Electric, known for reliability and positive indication via a flag window to show the operational status of the breaker. Its IP20 rating provides protection against solid objects, making it suited for indoor panel environments in industrial, manufacturing, electrical distribution, HVAC, and commercial applications.
Rated to interrupt fault currents up to 10 kA safely. Thermal magnetic trip mechanism ensures accurate tripping and circuit protection. Standard DIN rail mounting and screw terminals for ease of installation. Compact dimensions and IP20 rating for secure panel integration.
Certified under multiple international safety standards. Positive indication flag window to easily identify tripped status. Suitable for a wide range of electrical protection needs in industrial and commercial settings. Explore Lovato Electric products and the Modulo P2MB range with EnvMart to enhance your electrical safety and circuit protection setup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 10 kA, ensuring reliable interruption of fault currents.
It operates at a rated voltage of 400V AC and 60V DC, making it suitable for both AC and DC circuits.
This miniature circuit breaker features a 4-pole configuration.
The current rating of this model is 100A.
It utilizes a thermal magnetic tripping mechanism for precise protection against overloads and short circuits.
The dimensions are 108 mm in width, 85 mm in height, and 80 mm in depth.
It is designed for DIN rail mounting, allowing for easy installation in electrical panels.
This circuit breaker has an IP20 protection rating, suitable for indoor electrical panels.
It is compliant with multiple international standards including IEC/EN/BS 60898-1, IEC/EN/BS 60947-2, CSA, cURus, EAC, and UL 1077.
It features screw terminals for secure electrical connections.
The tripping characteristics are classified as Type C, suitable for applications requiring moderate inrush current tolerance.
Yes, it includes a positive indication flag window to show the operational status of the breaker.
