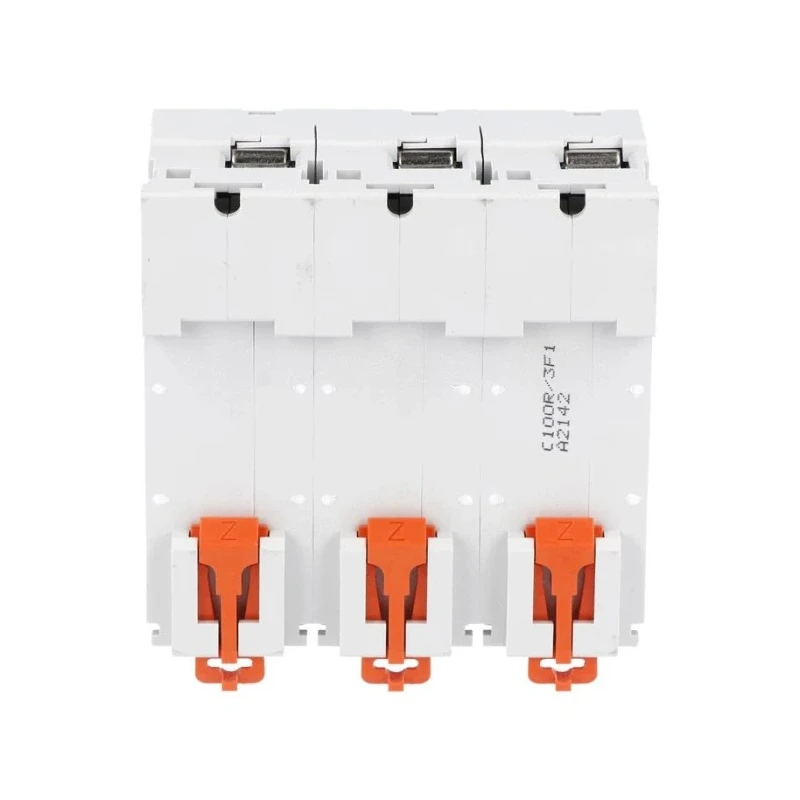

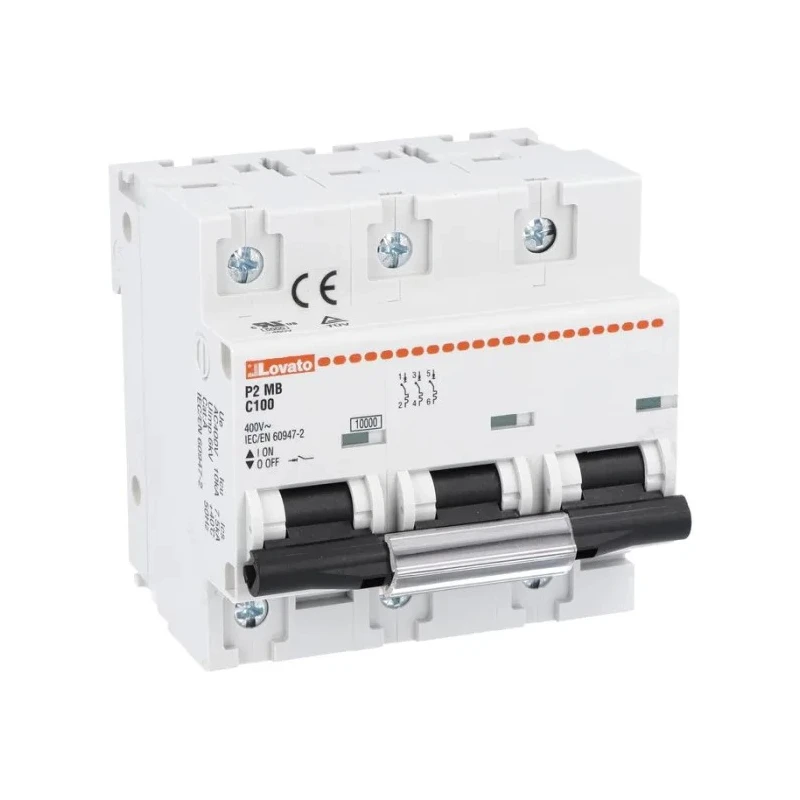

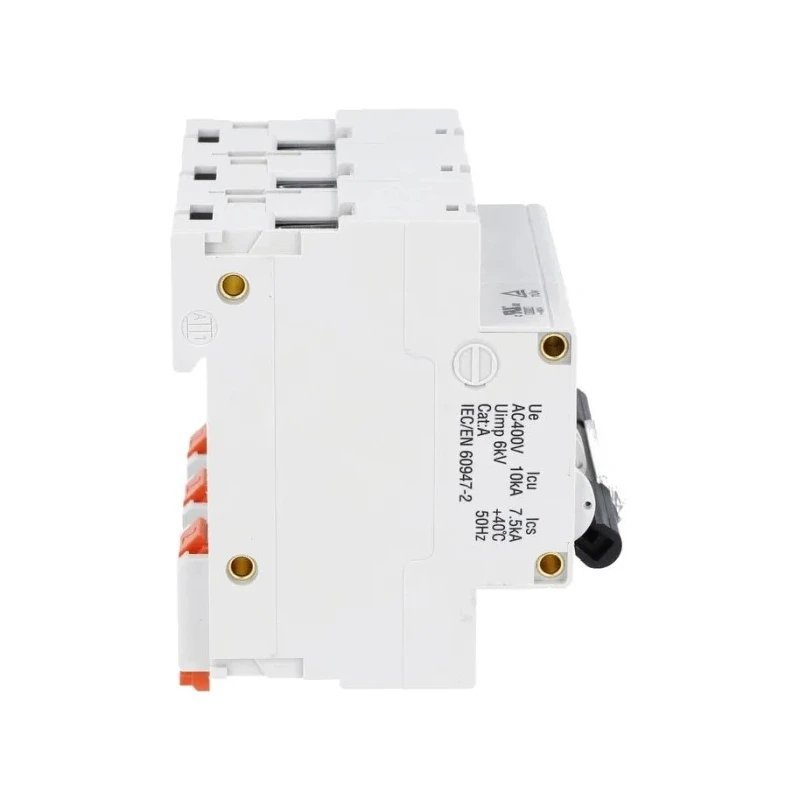

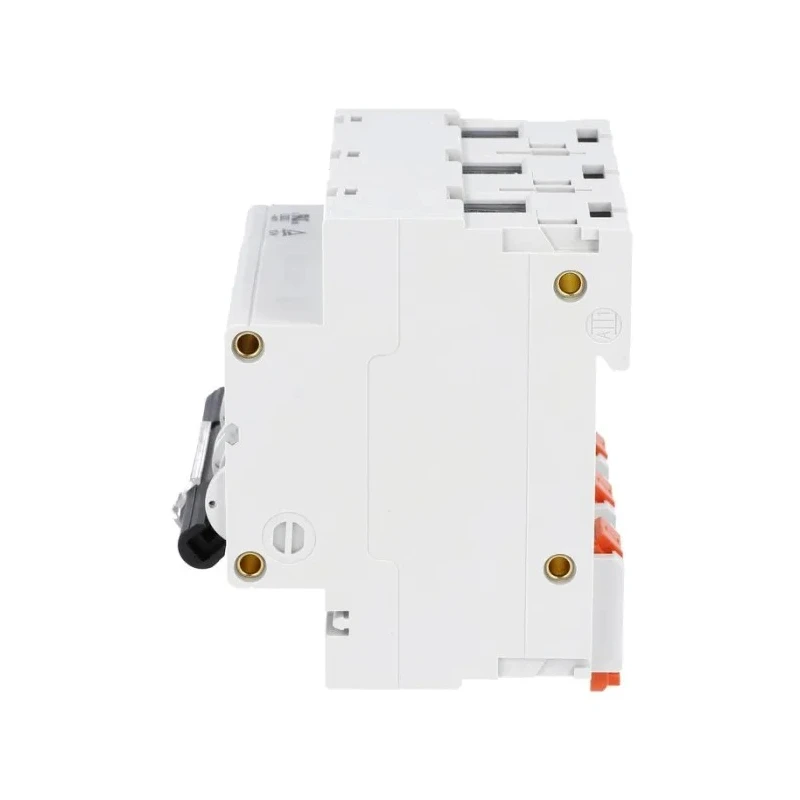

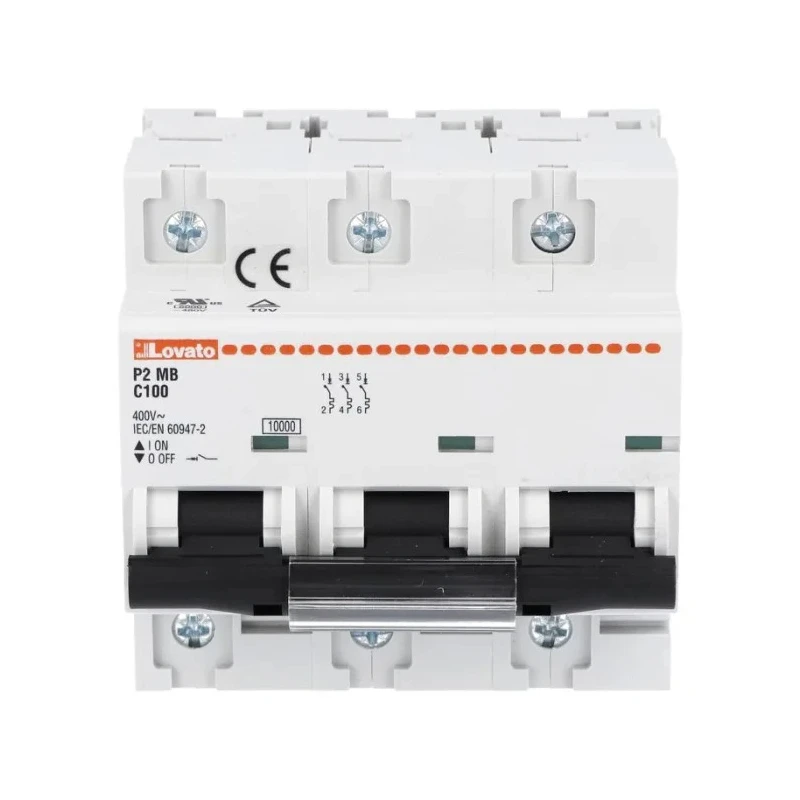

Lovato Electric Modulo Miniature Circuit Breaker, 3-Pole, 100A, Type C, 400V AC, 60V DC, 10 kA Breaking Capacity P2MB

Lovato Electric P2MB3PC100 Miniature Circuit Breaker is a high-quality 3-pole electrical safety device designed to protect industrial and commercial electrical circuits from overloads and short circuits. Rated at 100A with a Type C tripping characteristic, it offers reliable and quick protection suitable for three-phase systems operating at 400V AC and 60V DC. The 10 kA breaking capacity ensures it can safely interrupt high fault currents, protecting equipment and personnel.

This circuit breaker features a thermal magnetic instantaneous trip mechanism for effective circuit interruption. It is designed for easy installation with DIN rail mounting and screw terminal connections, fitting typical electrical panels and switchboards seamlessly. The IP20 rating provides protection against access to hazardous parts.

Built to meet various international standards including CSA, cURus, EAC, IEC/EN/BS 60898-1, IEC/EN/BS 60947-2, and UL 1077, this breaker assures durability and performance under demanding conditions. Its compact size (85mm height, 81mm width, 80mm depth) facilitates efficient panel design.

The P2MB3PC100 is ideal for protecting machinery in industrial automation systems, controlling reliable electrical distribution in commercial buildings, and preventing overload damage in motor circuits. It is compatible with other components in the Modulo product range, allowing coordinated circuit protection solutions.

Installation should comply with local electrical codes using appropriate DIN rails, and the device should be reset by switching back to ON after addressing any fault conditions. Routine inspections ensure continued dependable operation, especially in adverse environmental conditions.

Designed for 3-pole, three-phase circuit protection with 100A rating. Type C tripping ensures prompt response to overloads and short circuits. Supports AC voltage of 400V and DC voltage up to 60V. High breaking capacity of 10 kA enhances electrical safety.

Compact and DIN rail mountable for easy integration into panels. Conforms to multiple international electrical standards for quality assurance. Thermal magnetic trip mechanism provides instantaneous fault tripping. Robust housing rated at IP20 for workplace safety.

Manufactured in Italy with strict quality control measures. Explore more circuit protection solutions in the Miniature Circuit Breaker category and other offerings by Lovato Electric at EnvMart.
