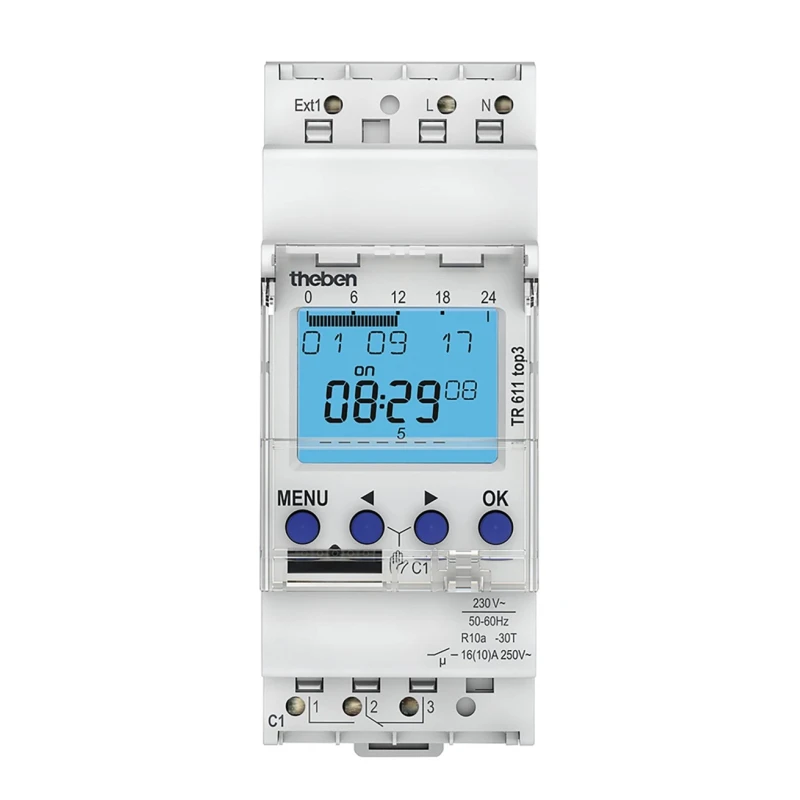

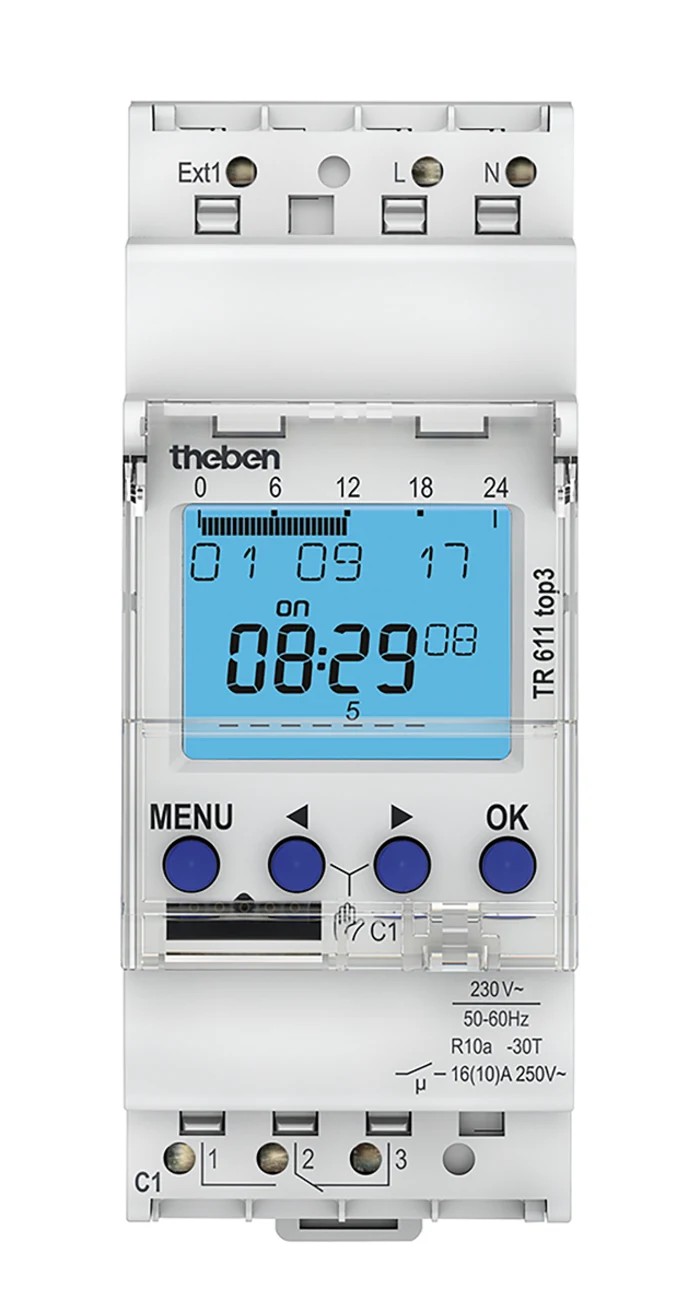

Theben Digital DIN Rail Time Switch 230V AC, Weekly Program, 84 Memory Spaces, Lithium Battery 10 Year Life Top3 TR611
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Theben |
| Battery Life | 10year |
| Height | 128.2mm |
| Model | Top3 |
| Depth | 76.2mm |
| Series | TR 611 Top3 |
| Contact Configuration | SPDT |
| Sub Type | Digital |
| Wire Diameter | 0.5 - 2.5 mm² |
| Terminal type | DuoFix Spring |
| Number Of Channels | 1 |
| Maximum Supply Voltage | 230V ac |
| Units Measured | Weekly |
| Memory Spaces | 84 |
| Segment Length | 1s |
Key Features
- Equipped with DuoFix spring terminals for secure wiring with wire diameter 0.5 - 2.5 mm².
- Single pole double throw (SPDT) contact configuration for flexible switching.
- Zero-cross switching protects relays and supports high lamp loads except 24V devices.
- Features an interface for OBELISK top2 memory card for PC programming.
- Button for quick plug-in connection release and text-oriented user guidance on display.
- Supports preset date, time, and program copying with 10 year power reserve.
- Includes integrated operating hour counter and reset option.
- Compact dimensions with 128.2 mm height and 76.2 mm depth.
Product Description
Theben Top3 digital DIN rail time switch operates at 230V AC and is designed for weekly time measurement with high precision and user convenience. This device offers 84 memory locations to accommodate complex switching programs, ensuring versatile control for industrial and commercial applications.
The DuoFix spring terminal technology enables reliable connections for wires and strands ranging from 0.5 to 2.5 mm², suitable for diverse installation requirements.
Its single pole double throw (SPDT) contact configuration supports various switching scenarios, while zero-cross switching reduces relay wear and enhances durability under high lamp loads.
Users benefit from a user-friendly interface with text-oriented guidance on a clear display, plus a dedicated button for plug-in connection release, simplifying maintenance and programming.
The time switch includes an interface for the OBELISK top2 memory card that facilitates easy PC programming, program copying, and storing, enhancing operational efficiency. It also features a 10 year lithium battery ensuring long-lasting memory retention and power reserve, even when disconnected from the mains.
Built in Germany, it complies with no specific certifications but follows high-quality manufacturing standards inherent to the brand. Typical use cases include automation control in electrical panels, industrial process management, lighting control in facilities, and scheduling tasks in HVAC systems.
Equipped with DuoFix spring terminals for secure wiring with wire diameter 0.5 - 2.5 mm². Single pole double throw (SPDT) contact configuration for flexible switching. Zero-cross switching protects relays and supports high lamp loads except 24V devices.
Features an interface for OBELISK top2 memory card for PC programming. Button for quick plug-in connection release and text-oriented user guidance on display. Supports preset date, time, and program copying with 10 year power reserve.
Includes integrated operating hour counter and reset option. Compact dimensions with 128.2 mm height and 76.2 mm depth. Explore comprehensive selections of Time Switches and DIN rail devices for all electrical automation needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this time switch is 230V AC.
This model offers 84 memory spaces for storing complex switching programs.
It features a single pole double throw (SPDT) contact configuration, allowing for flexible switching scenarios.
The dimensions of this unit are 128.2 mm in height and 76.2 mm in depth.
It uses DuoFix spring terminals, which accommodate wire diameters ranging from 0.5 to 2.5 mm².
Yes, it includes an interface for the OBELISK top2 memory card, which allows for easy PC programming and program copying.
The integrated lithium battery has a life of 10 years, ensuring long-lasting memory retention even when disconnected from mains power.
This time switch is suitable for applications such as automation control in electrical panels, industrial process management, lighting control, and HVAC scheduling tasks.
It measures time on a weekly basis, making it suitable for various scheduling needs.
The segment length for this time switch is 1 second, allowing for precise time programming.
It is manufactured in Germany, adhering to high-quality manufacturing standards.
The zero-cross switching feature protects relays and supports high lamp loads, except for 24V devices.
