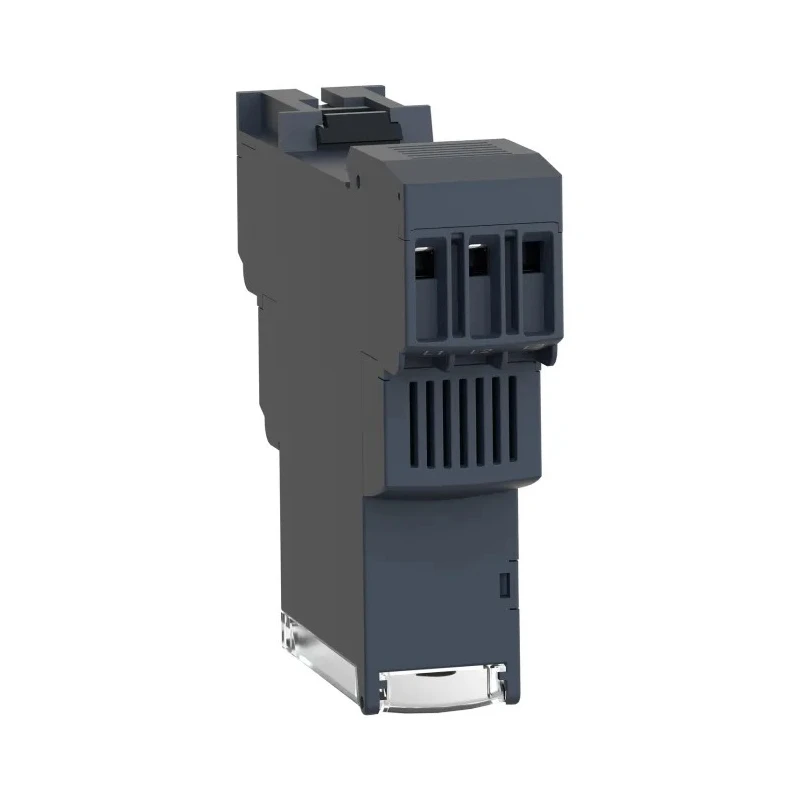

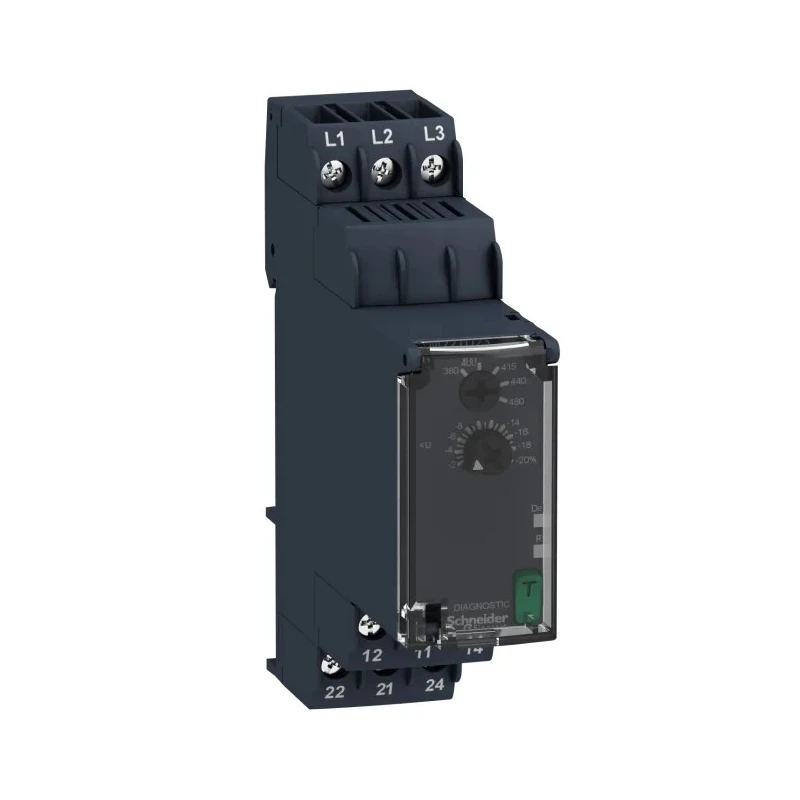

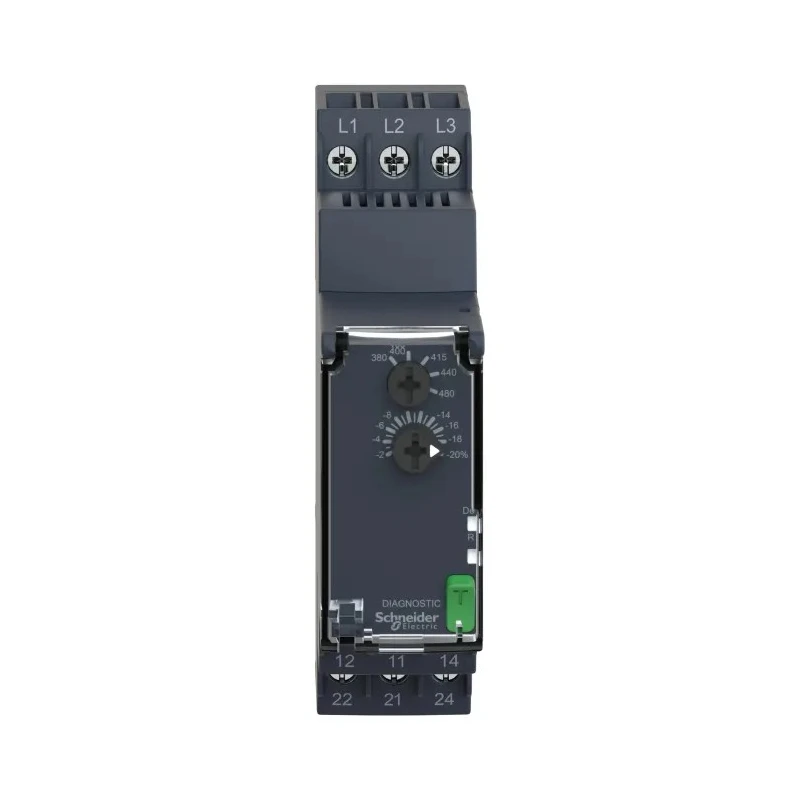

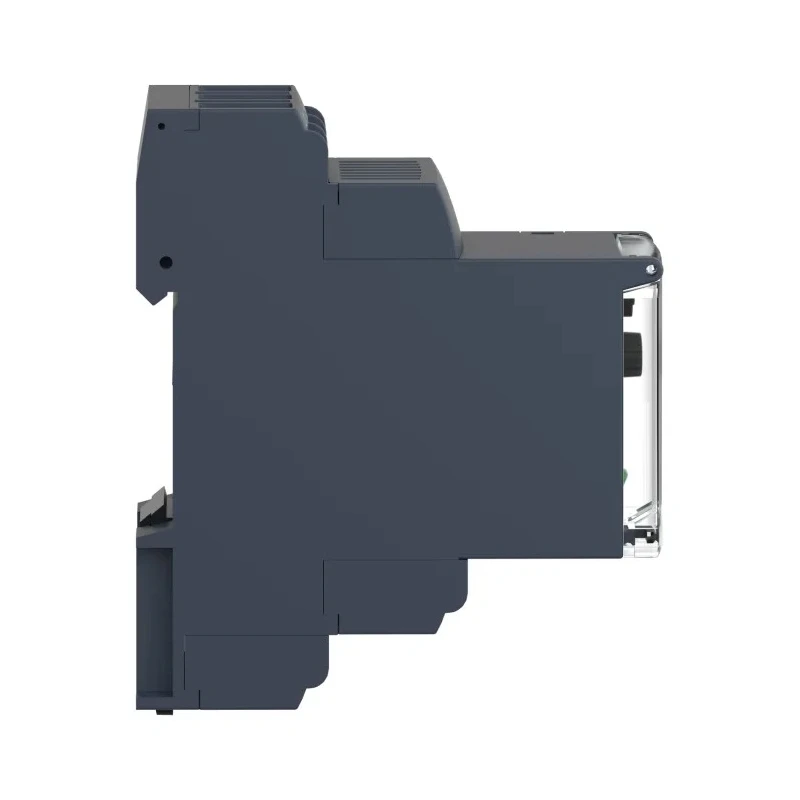

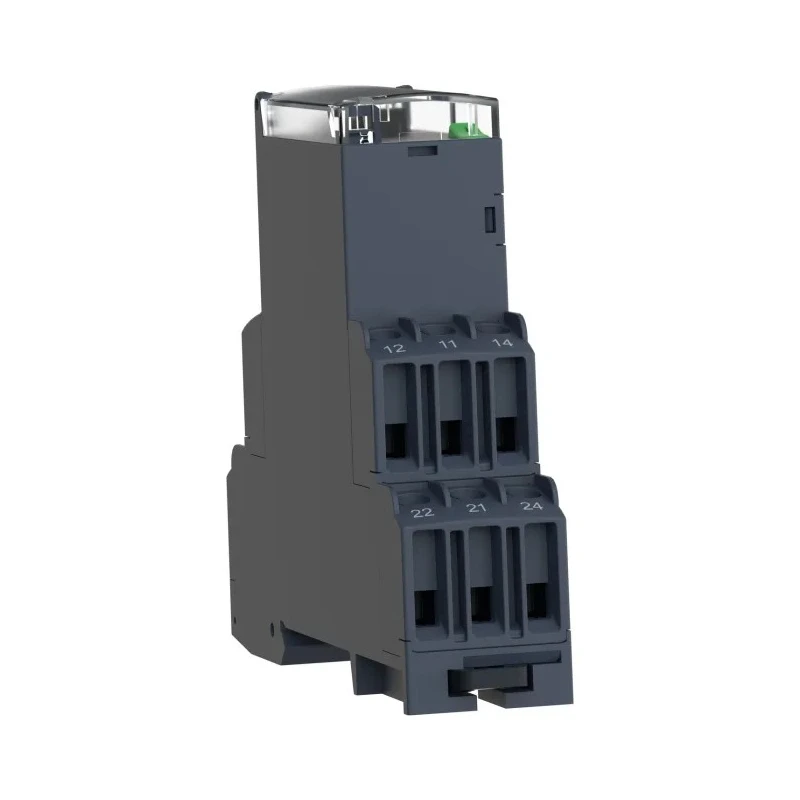

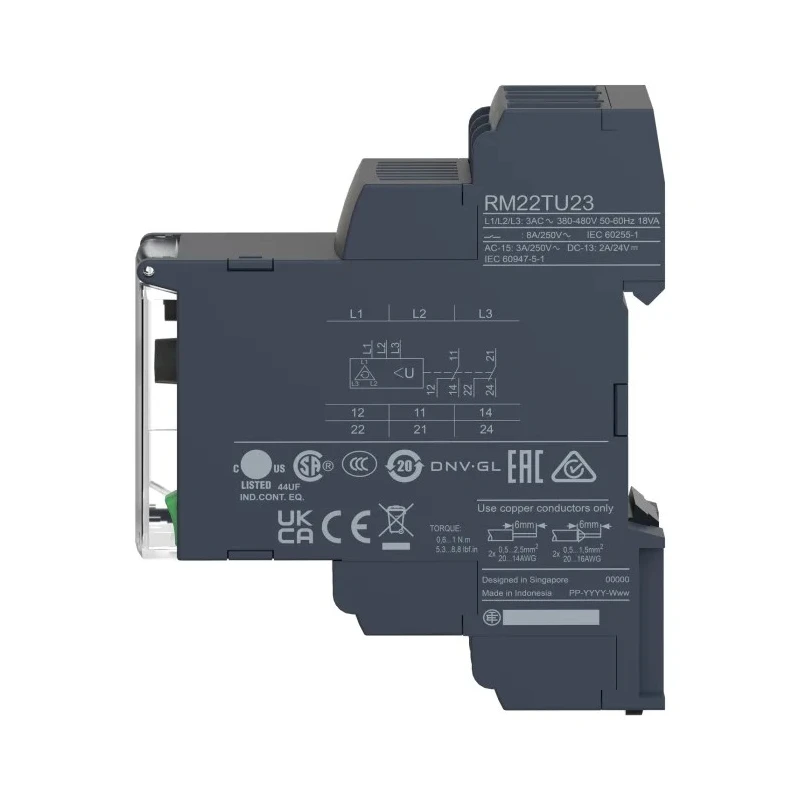

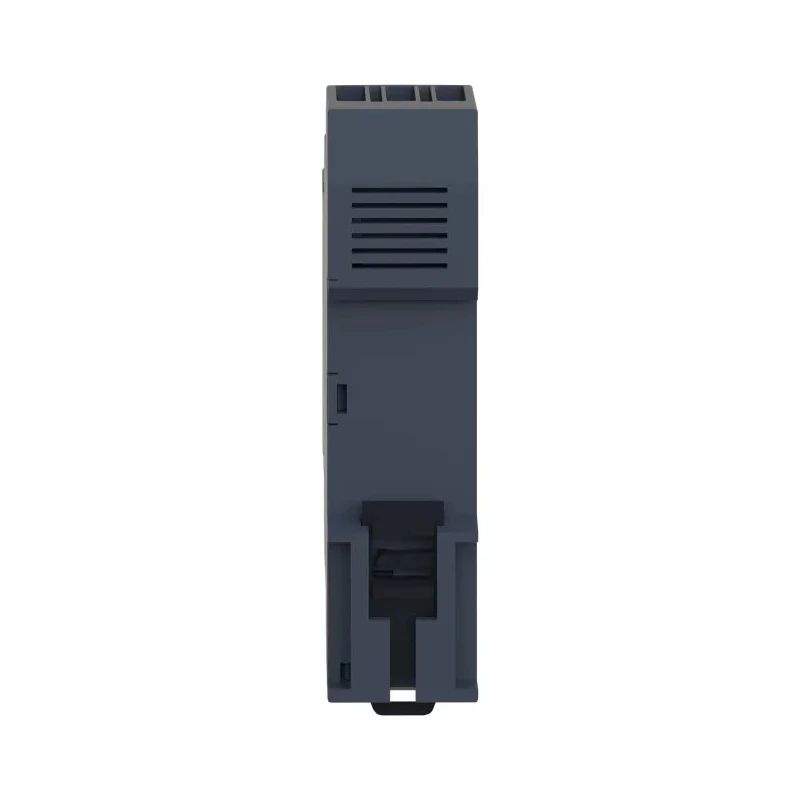

Schneider Electric Monitoring Relay 3 Phase RM22TU23

Schneider Electric RM22TU23 Monitoring Relay is engineered for three-phase electrical systems with a monitoring range below 100 units. It is designed for industrial and commercial applications requiring precise voltage and current condition monitoring within 380V AC and 480V AC supply environments.

The device features memory functionality that preserves relay state during power interruptions, making it highly reliable for automation and control systems. Equipped with 2 change-over (2 CO) contacts, the relay facilitates flexible switching capabilities appropriate for various electrical control schemes.

The mounting type is DIN rail, providing easy integration into electrical switchboards with standard rails. Screw-type terminals ensure secure and straightforward wiring connections. Its IP20, IP40, and IP50 ingress protection ratings allow use in diverse installation conditions, protecting against dust and moisture intrusion.

The operating temperature range from -20°C to 60°C makes it suitable for harsh industrial environments. Power consumption is limited to 15 VA, offering energy efficiency in continuous operation. The relay supports switching voltages up to 250V AC, compatible with numerous control loads.

Manufactured under the Harmony Control series, it complies with global standards including IEC 60255-27, CE, RoHS, REACH, CCC, GL, and EN/IEC 60255-1 ensuring quality, safety, and performance consistency. Dimensions are compact, with a height of 90mm, width of 22.5mm, and length of 22.9mm, optimizing space within control panels.

This monitoring relay is suited for industrial automation, electrical distribution systems, motor control centers, and other demanding environments requiring reliable, accurate phase monitoring. Its versatility makes it ideal for electrical engineers and technicians aiming to protect equipment and maintain system integrity.

Country of origin is Indonesia, reflecting quality manufacturing standards. Schneider Electric continues to deliver innovative and robust control devices tailored for modern electrical infrastructure.

The relay features memory functionality to retain operational settings. Contact configuration includes 2 change-over contacts for versatile applications. DIN rail mount type allows easy installation in electrical panels.

Terminal connections use screw type for secure and reliable wiring. With an IP rating covering IP20, IP40, and IP50, it suits varied environmental conditions. Designed to operate reliably between -20°C and 60°C temperature range.

Consumes 15 VA power, efficient for control and monitoring circuits. Switching voltage up to 250V AC supports a wide range of electrical systems. Standards compliances include IEC 60255-27, CE, RoHS, and more, ensuring quality and safety.

Compact dimensions with height 90mm, width 22.5mm, and length 22.9mm fit standard control panels. Explore the range of Schneider Electric Monitoring Relays and enhance your industrial automation solutions with EnvMart.
