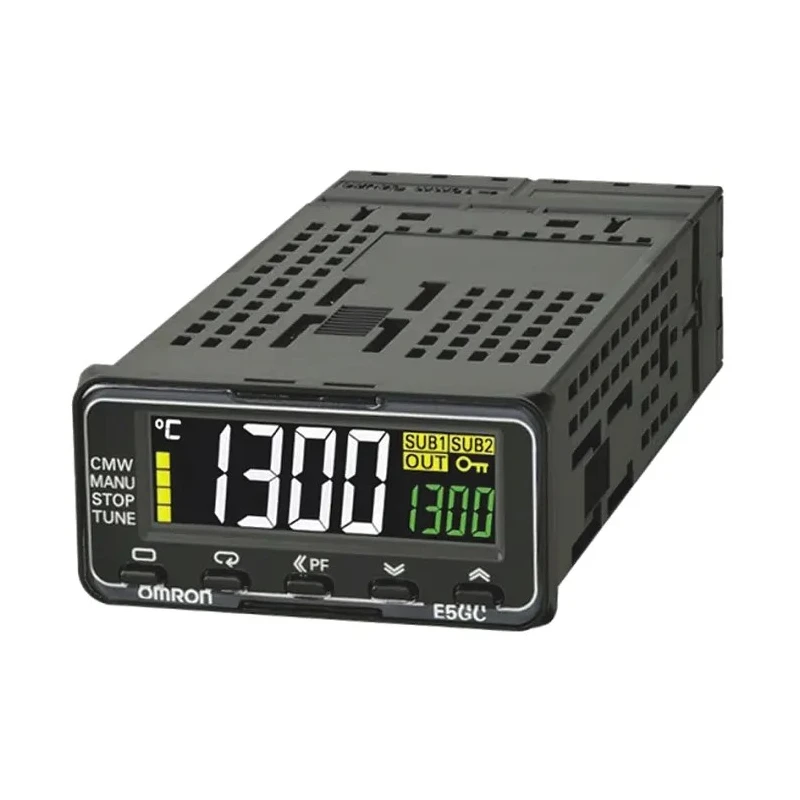

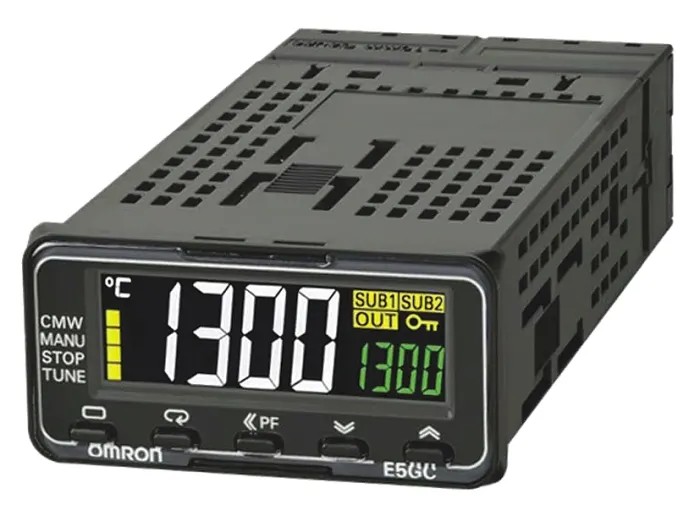

Omron PID Temperature Controller DIN Rail Mount 24V AC/DC, 2 Inputs, 1 Current Output E5GC

Omron E5GC-CX2DCM-000 PID Temperature Controller offers advanced temperature management for industrial and laboratory applications. This DIN rail mount controller operates on a 24V AC/DC supply and provides two input channels compatible with various thermocouples including B and K types along with platinum resistance thermometers, enabling precise sensing and control in manufacturing, HVAC, and process control environments.

The controller supports both ON/OFF and PID control modes, allowing flexible temperature regulation depending on application needs. The linear 4-20 mA current output ensures seamless communication with other control system components and accurate process adjustments.

Designed for compact panel installation, the controller measures only 48 mm in width and 24 mm in length, with a panel depth of 90 mm, allowing space-efficient mounting on standard DIN rails. The robust construction offers IP20 and IP66 ratings, providing protection against dust and moisture for reliable operation in diverse environments.

The single line LCD display presents clear, straightforward temperature readings and status information. Screwless clamp terminals facilitate quick and secure wiring. The device also supports RS485 communication for digital integration, enhancing automation and remote monitoring capabilities.

Certified to meet multiple safety and performance standards including EN 61010-1, UL 61010-1, CSA C22.2 No.61010-1, EN61326-1, and KC mark, this temperature controller ensures compliance and reliable operation across global markets.

Offers both ON/OFF and PID control modes for adaptable temperature regulation. Accommodates thermocouple and platinum resistance thermometer inputs for versatile sensing. Provides linear 4-20 mA current output for precise process control integration.

Compact DIN rail mount design with space-saving panel dimensions. IP20 and IP66 protection for use in controlled and harsh industrial environments. Clear LCD display for monitoring and configuration. Screwless clamp terminals for easy installation.

Supports RS485 digital communication interface. Conforms to international safety and quality standards.

This Omron PID temperature controller is ideally suited for manufacturing process control, laboratory temperature regulation, HVAC system monitoring, and various industrial automation applications. Its flexible input/output options and robust design make it a reliable choice to maintain accurate thermal conditions across a wide application spectrum.

Explore our full range of precision Temperature Controllers and industrial automation products for optimized process performance and control.
