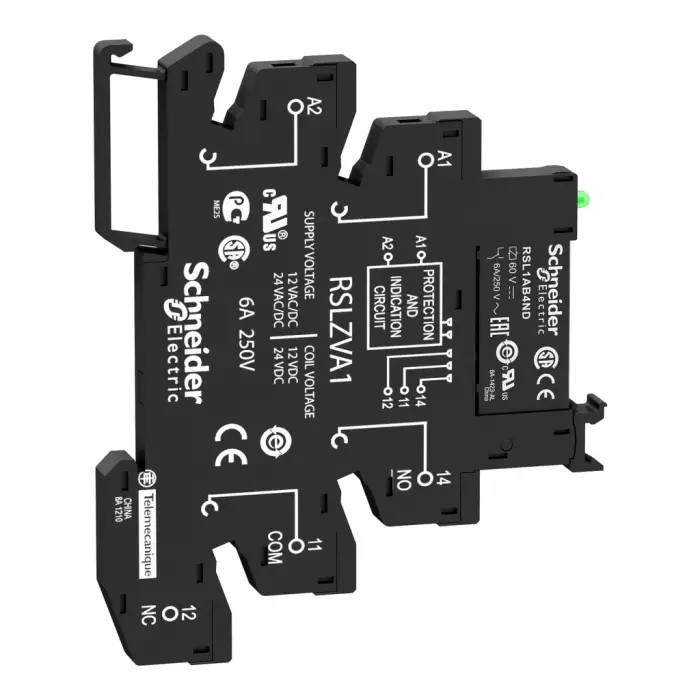

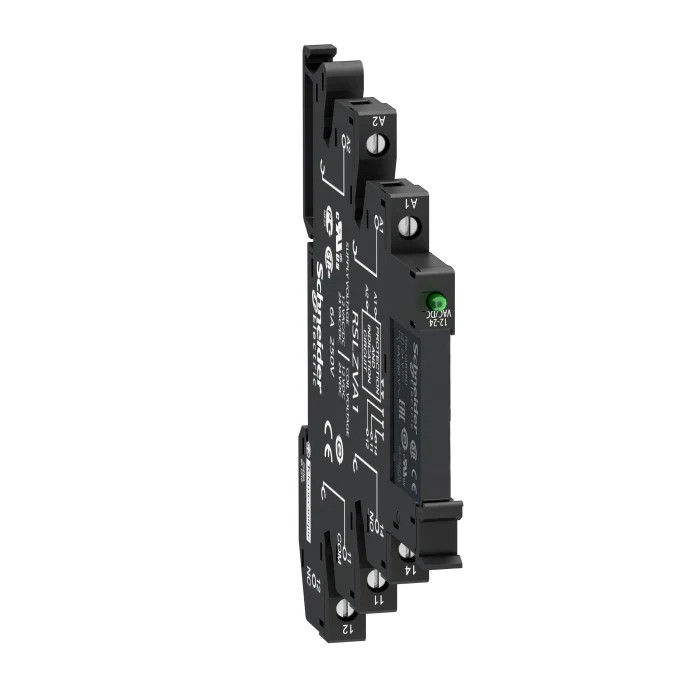

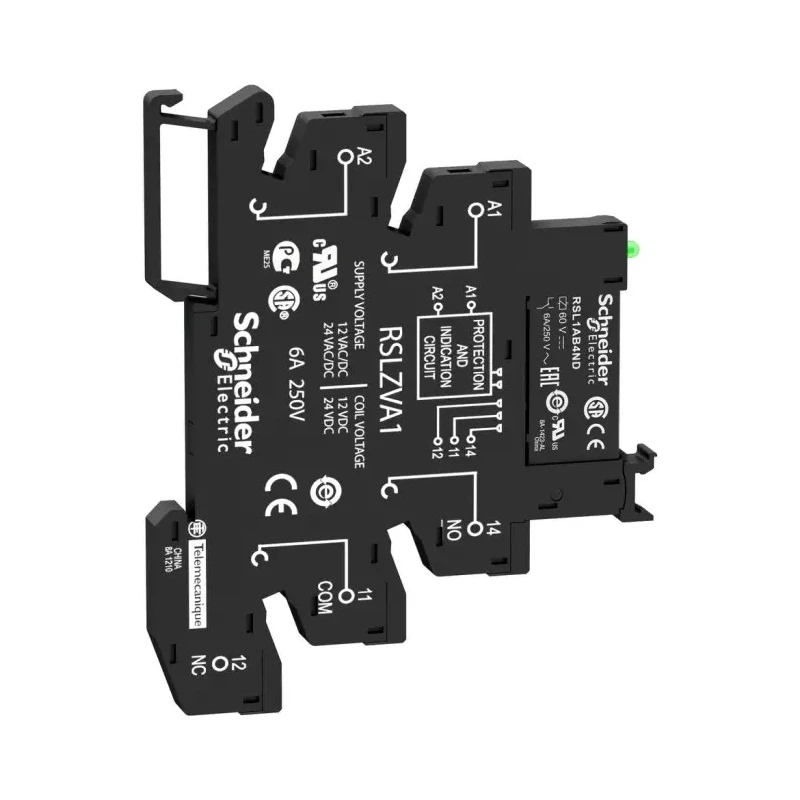

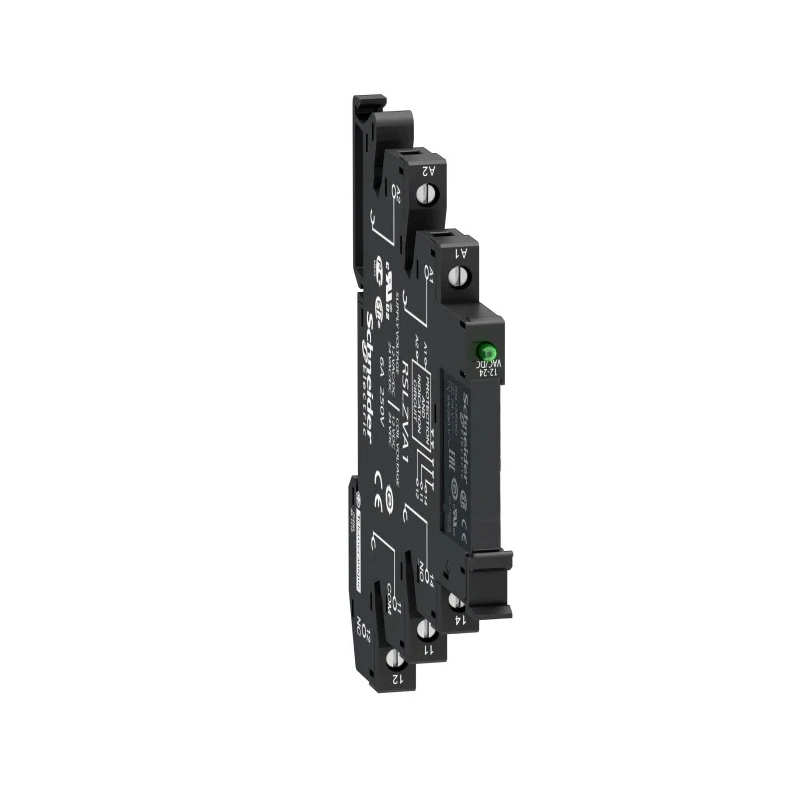

Schneider Electric Harmony Relay RSL Series Interface Relay, DIN Rail Mount, 48V DC Coil, SPDT Contact, 6A RSL1PVEU
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 96mm |
| Length | 6.2mm |
| Model | RSL1PVEU |
| Width | 78.7mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RSL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 100mA |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Resistance | 10600Ω |
| Coil Voltage | 48V dc |
| Coil Current | 6A |
| Switching DC Voltage | 48V dc |
| Switching AC Voltage | 277V ac |
Key Features
- The relay features a DIN rail mount for flexible installation in control panels.
- Constructed with silver alloy contacts for durability and conductivity.
- Incorporates an LED indicator for clear status display in all lighting conditions.
- Operates within a wide temperature range from -40°C to 85°C ensuring robust performance.
- Suitable for hard-wired logic automation to complement industrial PLC systems.
- Compact slim design of 6.2 mm length and 78.7 mm width optimizes panel space.
- Coil resistance rated at 10600 ohms ensuring controlled current of 6A.
- RoHS compliant, supporting environmentally conscious industrial applications.
Product Description
Schneider Electric RSL1PVEU Harmony Relay RSL Series is a high-performance electromechanical interface relay designed for industrial automation and electrical control systems. Featuring a 48V DC coil voltage and a single pole double throw (SPDT) contact configuration rated at 6A, this relay ensures reliable switching for signal conditioning tasks.
Its DIN rail mounting capability allows easy integration into control cabinets and panel boards, reducing enclosure size while enhancing machine reliability. The relay contains silver alloy contacts for enhanced conductivity and long operational life.
Equipped with an LED indicator status display, the relay provides clear visual feedback for operational status both during the day and at night. Designed to operate over a broad temperature range of -40°C to 85°C, it withstands harsh environmental conditions typical in industrial settings.
With switching voltages supporting up to 48V DC and 277V AC, this relay is suitable for diverse applications, including hard-wired logic automated systems that complement programmable logic controllers (PLCs).
The relay's compact slim design at only 6.2 mm length and 78.7 mm width allows installation in constrained spaces. It offers a coil resistance of 10600 ohms, controlling a coil current of 6A for optimal operation. RoHS compliance assures adherence to environmental and safety standards.
This model is part of Schneider Electric's trusted Harmony Relay RSL series, known for durability and precision in industrial automation. Manufactured in China under strict quality controls to meet global industrial requirements.
This electromechanical relay is ideal for use in electrical automation, signal conditioning, control panels, industrial machinery, and manufacturing equipment. Its reliability and slim form factor make it an excellent choice for engineers and designers requiring efficient interface relays for their control systems.
Explore more solutions in the Electromechanical Interface Relay category on EnvMart to find compatible control and signal devices suitable for your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 48V DC.
This model features a single pole double throw (SPDT) contact configuration.
The maximum operating temperature is 85°C.
The relay has a width of 78.7 mm and a length of 6.2 mm.
It supports DIN rail mounting for easy installation in control panels.
The coil resistance is rated at 10600 ohms.
The relay is rated for a switching current of 6A.
The contacts are constructed from silver alloy, enhancing durability and conductivity.
The minimum operating temperature is -40°C.
This model is RoHS compliant, supporting environmentally conscious applications.
It is suitable for hard-wired logic automation and can complement industrial PLC systems.
The maximum switching voltage is 48V DC and 277V AC.
