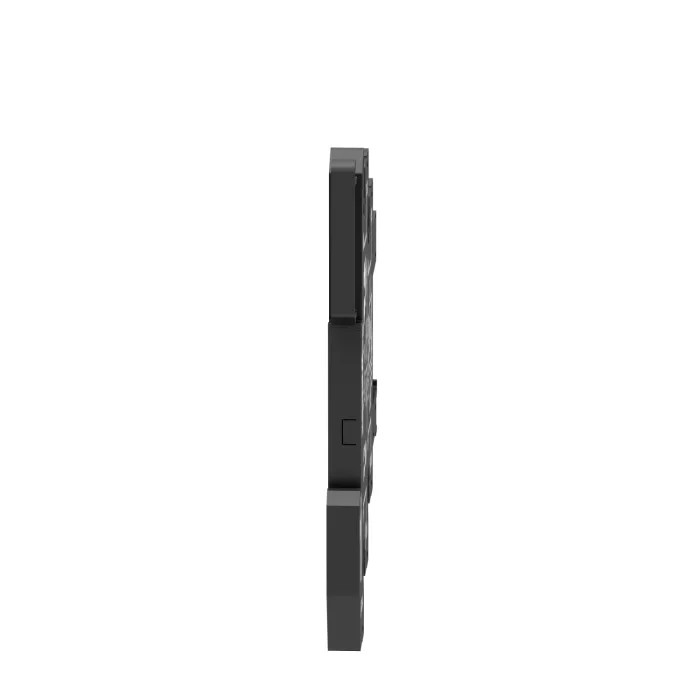

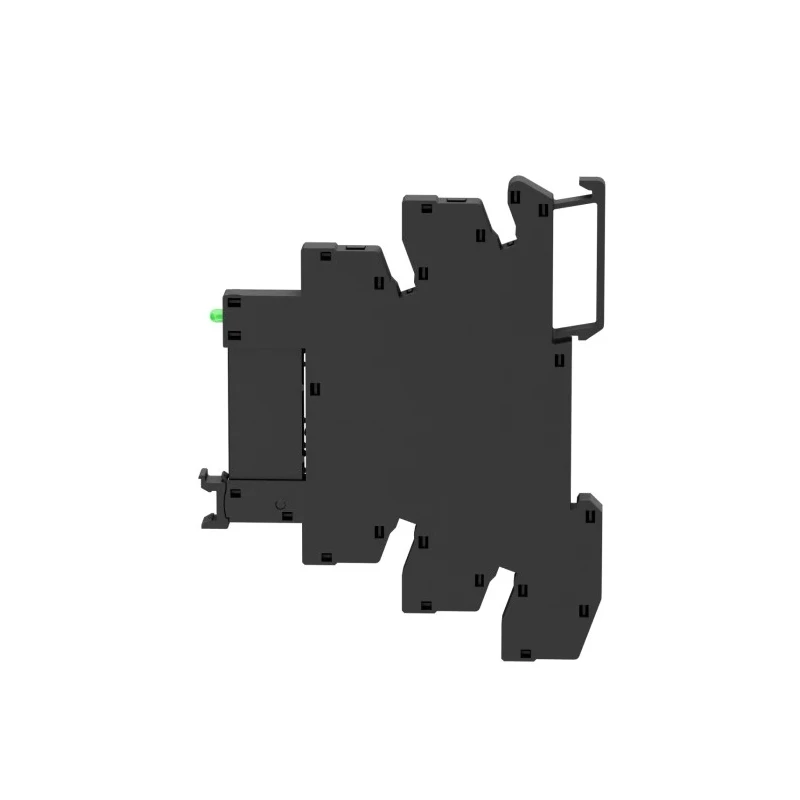

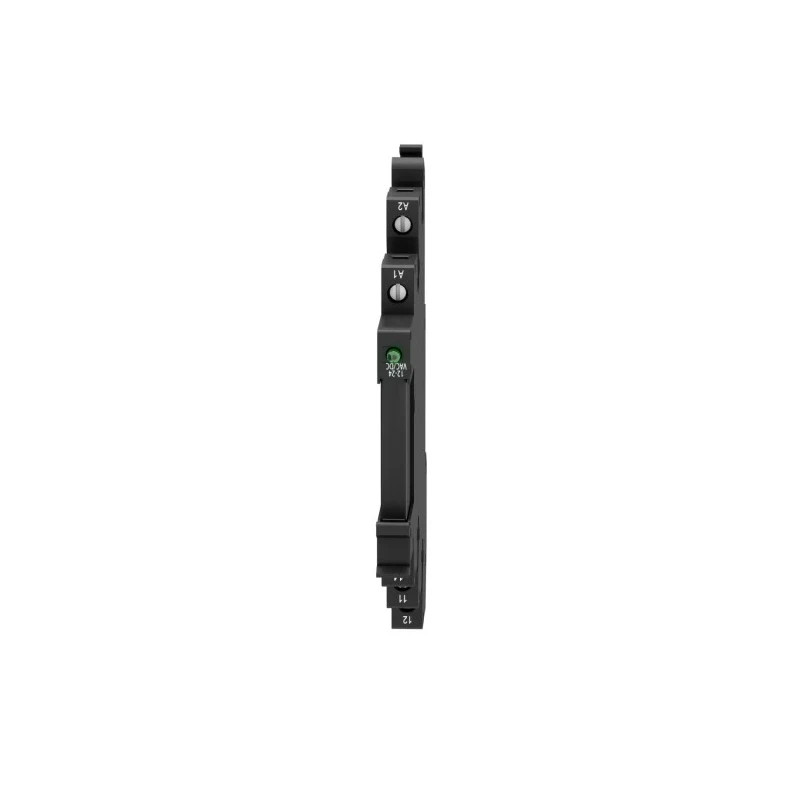

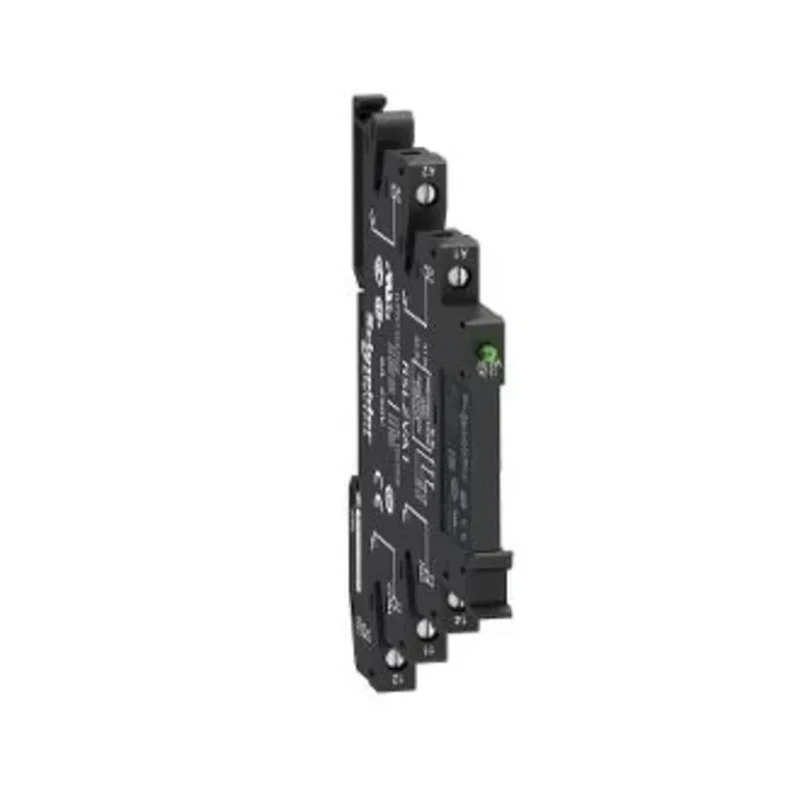

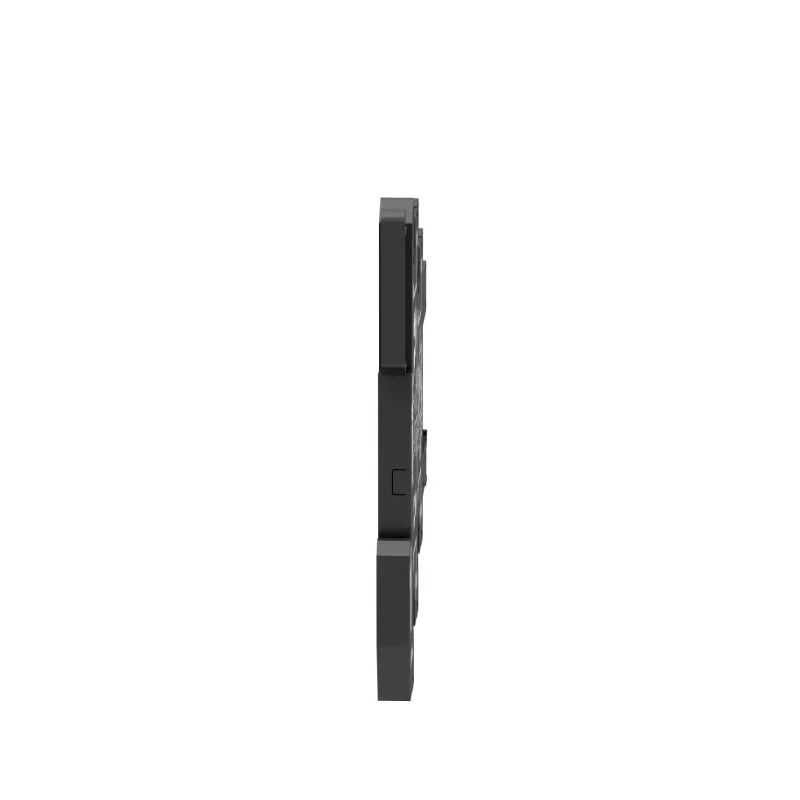

Schneider Electric Harmony Relay RSL Series Interface Relay, 24V DC Coil, SPDT Contact, 6A Load Current RSL1PVBU
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 96mm |
| Length | 6.2mm |
| Model | RSL1PVBU |
| Width | 78.7mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RSL |
| Maximum Operating Temperature | +55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 100mA |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Resistance | 3390Ω |
| Coil Voltage | 24V dc |
| Coil Current | 6A |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 277V ac |
| RS PRO Interface Relay, DIN Rail, 24V ac/dc Coil, SPDT, 8ARS Stock No. | 144-1579Brand: RS PRO |
| Schneider Electric Interface Relay Module -, IP40Brand | Schneider Electric |
Key Features
- Compact DIN rail mount design for easy integration in control panels.
- 24V DC coil voltage ensures compatibility with common industrial power supplies.
- SPDT contact configuration for versatile switching applications.
- Load current rated at 6A suitable for various electrical control circuits.
- Operating temperature range from -40°C to +55°C allows use in extreme environments.
- Integrated LED indicator for operational status monitoring.
- Silver alloy contact material for reliable conductivity and low contact resistance.
- Mechanical durability rated for 10 million cycles guarantees long-term reliability.
Product Description
Schneider Electric RSL1PVBU Harmony Relay RSL Series Interface Relay is engineered for precise control in electrical automation systems. Featuring a 24V DC coil, this DIN rail mount relay utilizes a SPDT contact configuration with a 6A load current rating, making it highly adaptable for controlling various electrical actuators and sensors in industrial environments.
The compact relay measures 6.2mm x 78.7mm x 96mm, optimizing panel space without compromising functionality. Its operating temperature range from -40°C to +55°C enables reliable performance across harsh conditions encountered in manufacturing, HVAC, water treatment, and commercial electrical panels.
Key design features include screw terminals for secure wiring, silver alloy contacts for optimal conductivity, and a mechanical life expectancy of 10 million cycles to ensure durable operation. An integrated LED status indicator simplifies monitoring and diagnostics during installation and maintenance.
This Interface Relay finds applications in automation control systems, electrical panels in industrial manufacturing, machine control circuits, and actuator switching. Its robust design and high-quality build make it a dependable solution for critical relay switching needs.
Compact DIN rail mount design for streamlined control panel integration. 24V DC coil voltage compatible with industrial automation power systems. SPDT contact for versatile normally open and normally closed switching. 6A contact load to handle a variety of electrical loads safely.
Wide operating temperature range to withstand industrial environments. Integrated LED status for real-time operational feedback. Silver alloy contacts ensure reliable electrical performance. High mechanical durability with 10 million operation cycles.
Explore the broader range of Schneider Electric relays for varied industrial and commercial automation requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC, making it compatible with common industrial power supplies.
The RSL1PVBU has a load current rating of 6A, suitable for various electrical control circuits.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
It can operate within a temperature range of -40°C to +55°C, suitable for use in extreme environments.
The relay measures 6.2mm in width, 78.7mm in length, and 96mm in height, allowing for compact installation on DIN rails.
It is equipped with screw terminals for secure wiring connections, ensuring reliable electrical performance.
The relay has a mechanical durability rated for 10 million cycles, indicating its long-term operational reliability.
The contacts are made from silver alloy, which provides reliable conductivity and low contact resistance.
This relay can switch up to 24V DC and 277V AC, making it versatile for different electrical loads.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
It is designed for DIN rail mounting, facilitating easy integration into control panels.
The RSL1PVBU is suitable for automation control systems, electrical panels in industrial manufacturing, machine control circuits, and actuator switching.
