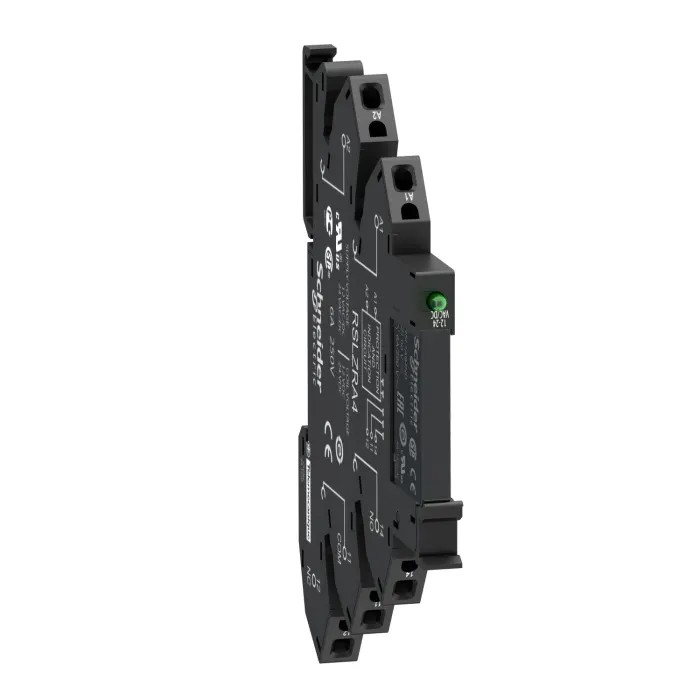

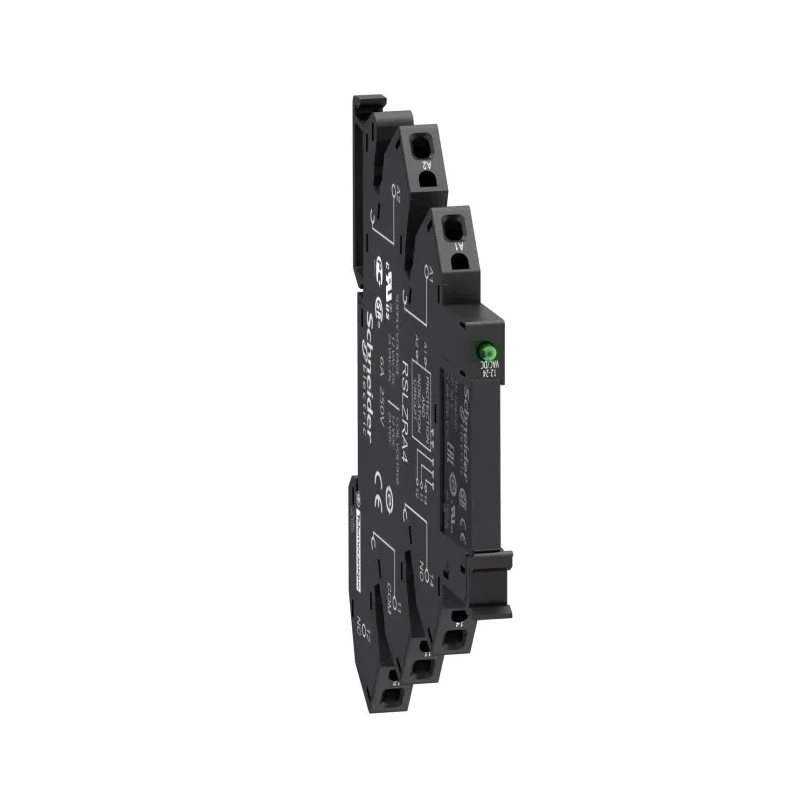

Schneider Electric Electromechanical Interface Relay Harmony Relay RSL Series, DIN Rail Mount, 12V DC Coil, SPDT RSL1PRJU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 103mm |
| Length | 6.2mm |
| Model | RSL1PRJU |
| Width | 78.7mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RSL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 100mA |
| Terminal type | Spring Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Coil Current | 6A |
| Switching DC Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Schneider Electric Relay SocketBrand | Schneider Electric |
Key Features
- Operates with a 12V DC coil voltage for precise control.
- Features SPDT contact configuration suitable for versatile switching.
- Spring terminal connection ensures secure and easy wiring.
- Durable silver alloy contacts for reliable conduction.
- Wide operating temperature range from -40°C to 85°C for harsh environments.
- Complies with RoHS for environmental safety and standards compliance.
- Switching AC voltage rating of 277V AC and switching DC voltage of 12V DC.
- Designed for DIN Rail mounting in electrical panels and automation systems.
Product Description
Schneider Electric RSL1PRJU is an electromechanical interface relay from the Harmony Relay RSL Series, designed for industrial, manufacturing, and automation control applications. It features a reliable 12V DC coil voltage and SPDT contact configuration, widely used for signal conditioning and switching.
This relay mounts conveniently on DIN Rail, facilitating easy integration into electrical panels. The spring terminal type ensures secure terminal connections while supporting quick wiring and maintenance.
The contact material is silver alloy, known for excellent conductivity and resistance to corrosion, enhancing relay longevity. Its coil resistance of 848Ω and coil current of 6A optimize reliable coil energizing with minimal losses.
Operating temperature is robust, ranging from -40°C to +85°C, enabling use in demanding industrial environments. The switch ratings include a switching AC voltage of 277V and switching DC voltage of 12V, with a 100mA switching current capacity, suitable for controlling various loads.
Compact physical dimensions - 103mm height, 78.7mm width, and 6.2mm length - allow for space-efficient installations on DIN Rails inside automation control cabinets or electrical distribution boards.
Operates with a 12V DC coil voltage for precise control. Features SPDT contact configuration suitable for versatile switching. Spring terminal connection ensures secure and easy wiring. Durable silver alloy contacts for reliable conduction.
Wide operating temperature range from -40°C to 85°C for harsh environments. Compact dimensions enable space-saving installation. RoHS compliant ensuring environmental safety. Switching voltage ratings: 12V DC and 277V AC.
Designed for DIN Rail mounting. Optimized coil resistance and current for efficient operation.
This relay is ideal for applications in electrical automation, industrial manufacturing control systems, signal conditioning, and HVAC systems. It supports control panel functions requiring reliable, precise switching performance within compact spaces.
For further exploration of similar Schneider Electric relays and Interface Relay applications, browse the related product categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 12V DC, allowing for precise control in various applications.
The RSL1PRJU features a Single Pole Double Throw (SPDT) contact configuration, suitable for versatile switching tasks.
It has a switching AC voltage rating of 277V AC and a switching DC voltage rating of 12V DC, making it versatile for different loads.
The relay can operate in temperatures ranging from -40°C to +85°C, making it suitable for harsh environments.
It employs a spring terminal connection, ensuring secure and easy wiring for installation and maintenance.
The dimensions of the RSL1PRJU are 103mm in height, 78.7mm in width, and 6.2mm in length, allowing for space-efficient installation.
The coil resistance is 848Ω, which optimizes reliable coil energizing with minimal losses during operation.
This relay supports a maximum switching current capacity of 100mA, suitable for controlling various loads effectively.
Yes, it complies with RoHS standards, ensuring environmental safety and compliance in its use.
It is ideal for applications in electrical automation, industrial manufacturing control systems, signal conditioning, and HVAC systems.
This relay is manufactured in India, contributing to its availability in various markets.
It is part of the Harmony Relay RSL Series, designed specifically for industrial and automation control applications.
