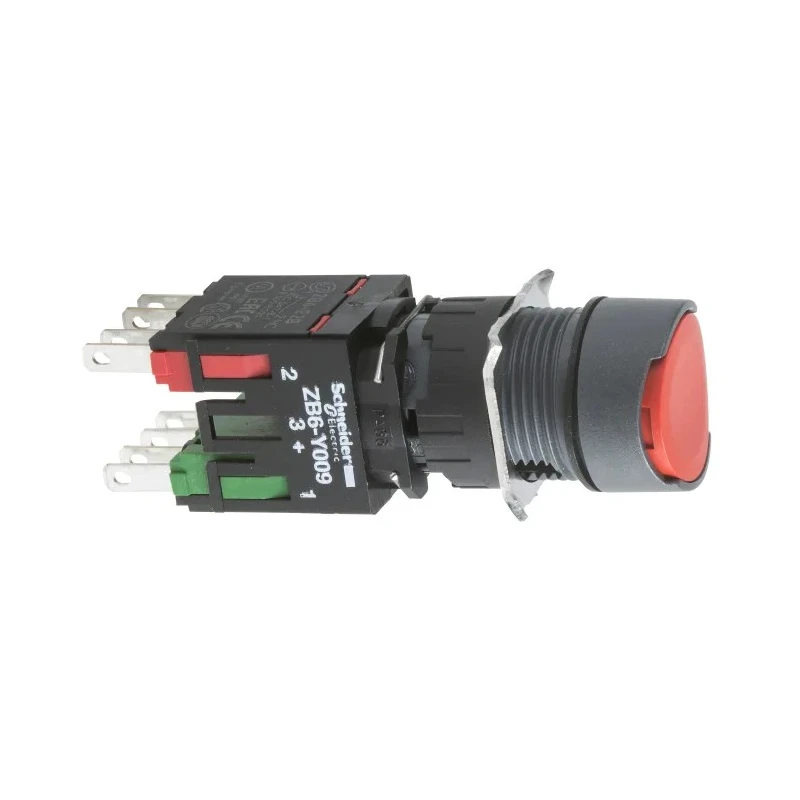

Schneider Electric Harmony XB6 Series 16 mm Panel Mount Push Button Switch, Spring Return, 1 NO/1 NC Contacts, Red LED, IP65

Schneider Electric XB6AA45B Harmony XB6 Series Push Button Switch is a robust panel-mounted switch designed for industrial control systems requiring precise and reliable operation. Featuring a 16 mm panel cutout and a spring return mechanism, it provides tactile feedback and resets automatically after actuation. The round red actuator with integrated red LED ensures high visibility even in low-light conditions while clearly indicating switch status.

This switch supports 1 normally open (NO) and 1 normally closed (NC) contact configuration, rated for 250 V DC and 240 V AC operational voltages. Its compact form factor measures 18 mm in height and width, with a length of 57 mm, facilitating integration into control panels with limited space. The terminal design allows quick connect and soldering, accommodating various wiring setups.

Engineered for harsh conditions, the XB6AA45B is IP65 rated, providing excellent protection against dust ingress and water jets, making it suitable for outdoor and industrial environments. It operates reliably across a broad temperature range from -25°C to 70°C, ensuring consistent performance in diverse settings.

Compliance with international standards such as EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, JIS C 4520, EN/IEC 60947-1, and UL 508 underscores its adherence to safety and quality requirements demanded in industrial automation, electrical panels, manufacturing, and machinery applications.

This push button switch has a spring return operation for reliable user control. It features a round red actuator with red LED illumination for clear visibility. Rated for contact DC voltage of 250 V and AC voltage of 240 V, suitable for industrial applications.

Dimensions are compact with 18 mm height, 18 mm width, and 57 mm length allowing easy panel integration. Constructed to withstand operating temperatures from -25°C to 70°C ensuring durability. Terminal types include quick connect and solder tag for versatile wiring options.

The switch complies with multiple standards including EN/IEC 60947 series and UL 508 for safety and quality assurance. IP65 rating guarantees dust-tight and water jet resistance for rugged environments. Suitable for industrial, automation, machinery, and panel control applications requiring reliable push button control.

This product is ideal for use in various sectors including industrial automation, electrical panels, machinery control, HVAC systems, and manufacturing facilities where dependable and visible manual control inputs are necessary. Explore the wide portfolio of Schneider Electric products for comprehensive automation and control solutions on EnvMart.
