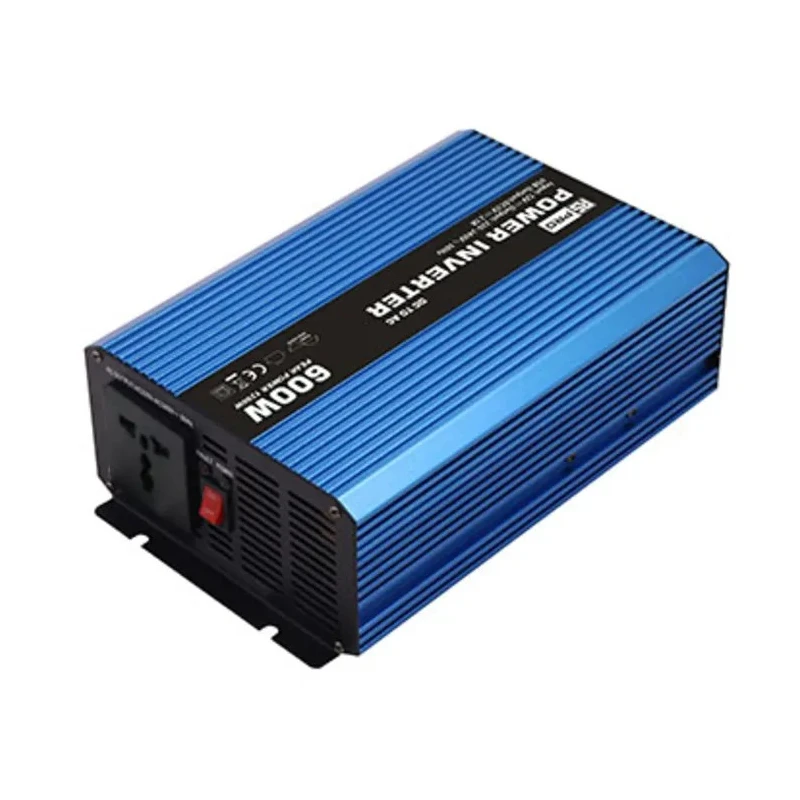

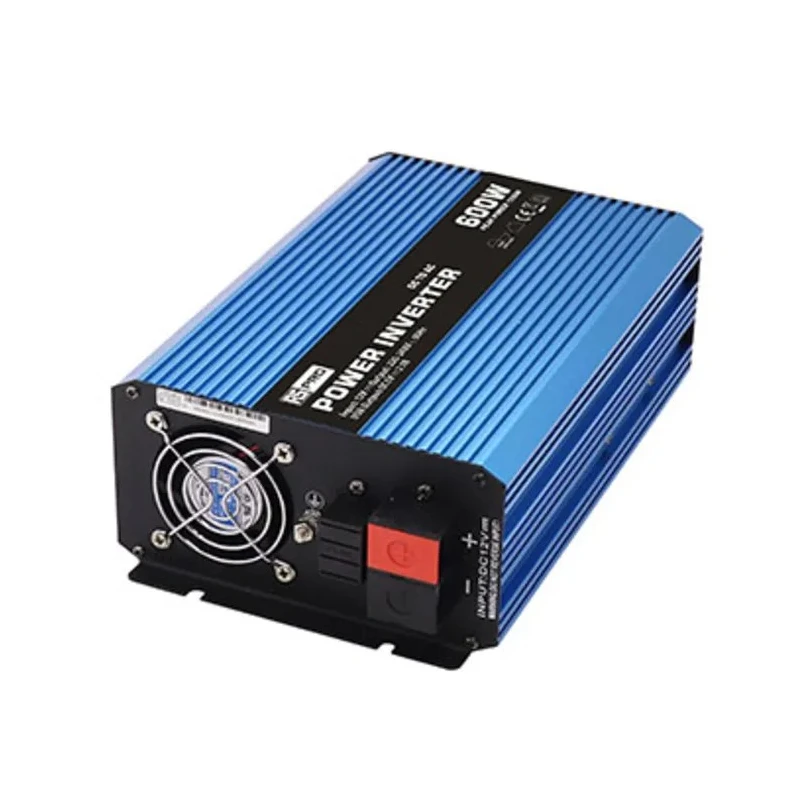

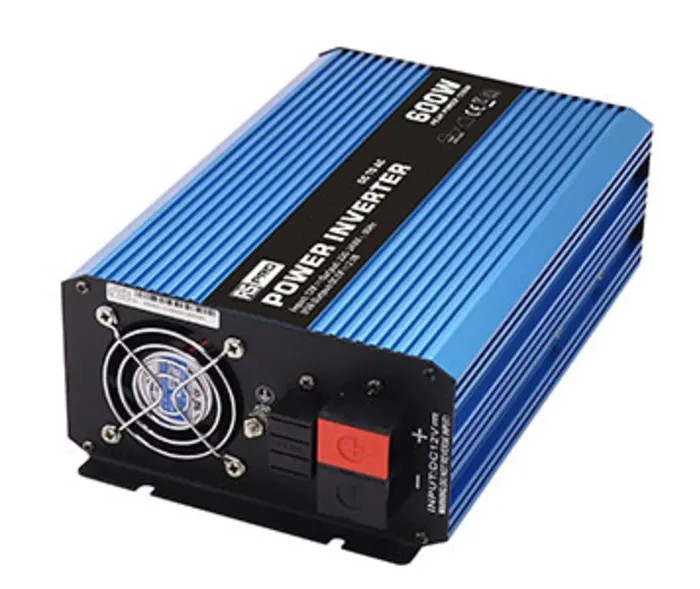

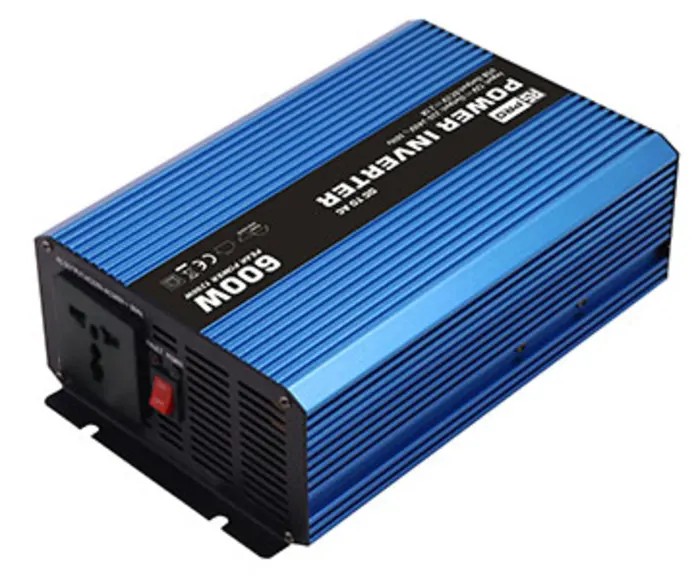

RS PRO Chassis 600W Power Inverter, 12V Input, 230V Output 179-3327

RS PRO 179-3327 Power Inverter is a 600W fixed installation DC-AC converter designed to transform 12V DC input from a car battery into a stable 230V AC output. This pure sine wave inverter is ideal for powering sensitive electronic devices such as laptops, digital clocks, and smart home equipment.

Encased in a robust anodised aluminium chassis, it offers excellent heat dissipation while facilitating easy installation through chassis mounting. The inverter features overload protection, over-heating protection, reverse polarity safeguards, and short circuit protections, ensuring operational safety and device longevity.

With a continuous power output of 600W and surge power up to 1200W, this inverter supports a universal output connector type and a single-phase electrical output current of 5.22A. Its high efficiency rating above 90% ensures effective power conversion with minimal losses.

The device operates reliably between -20°C and +50°C and complies with stringent European standards including EN 60950-1 for IT equipment safety, various electromagnetic compatibility directives (ECE R10.05:2014, EN 61000-6-1, EN 61000-6-3), and environmental compliance like RoHS. It also meets electrostatic control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.

Typical applications include automotive power supply scenarios, portable and fixed power solutions for industrial, laboratory, commercial, and home use where AC power from a DC source is required. The product’s compact size and reliable specifications make it suitable for integration in diverse electrical systems requiring robust power inversion.

Generates pure sine wave output for safe operation of sensitive devices. Provides continuous 600W power with surge capacity up to 1200W. Equipped with overload, over-heating, reverse polarity, and short circuit protection.

Constructed with durable anodised aluminium chassis for effective heat dissipation. Features universal output connector and single-phase electrical output. Operating temperature range from -20°C to +50°C for varied environments.

Rated efficiency greater than 90%, ensuring energy-saving operation. Compact dimensions: Length 249.2mm, Width 150mm, Depth 77.7mm. Mean time between failures (MTBF) of 50,000 hours for reliable performance. Conforms to multiple European standards ensuring safety and electromagnetic compatibility.
