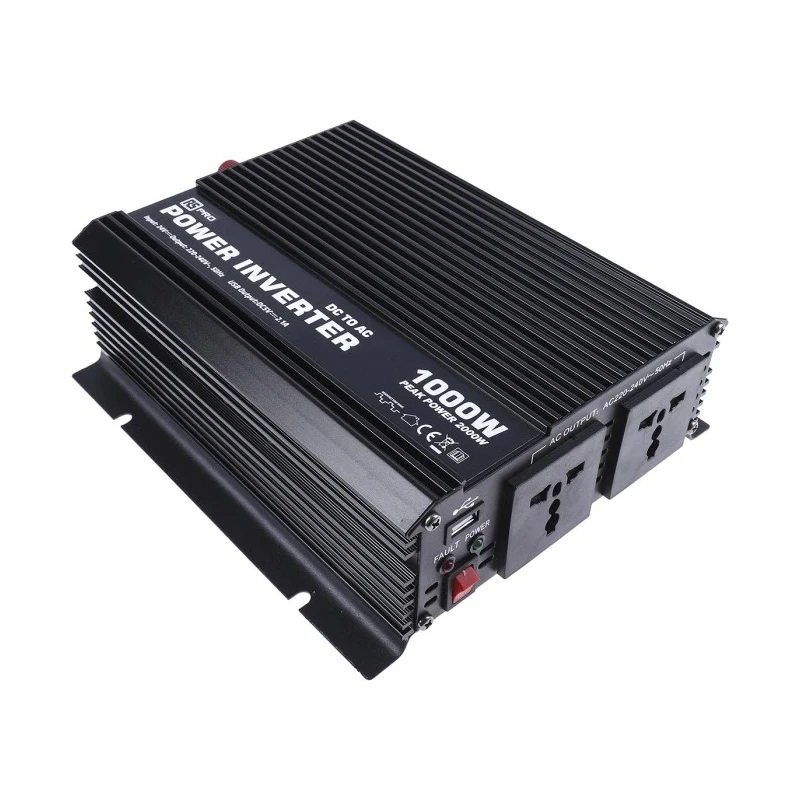

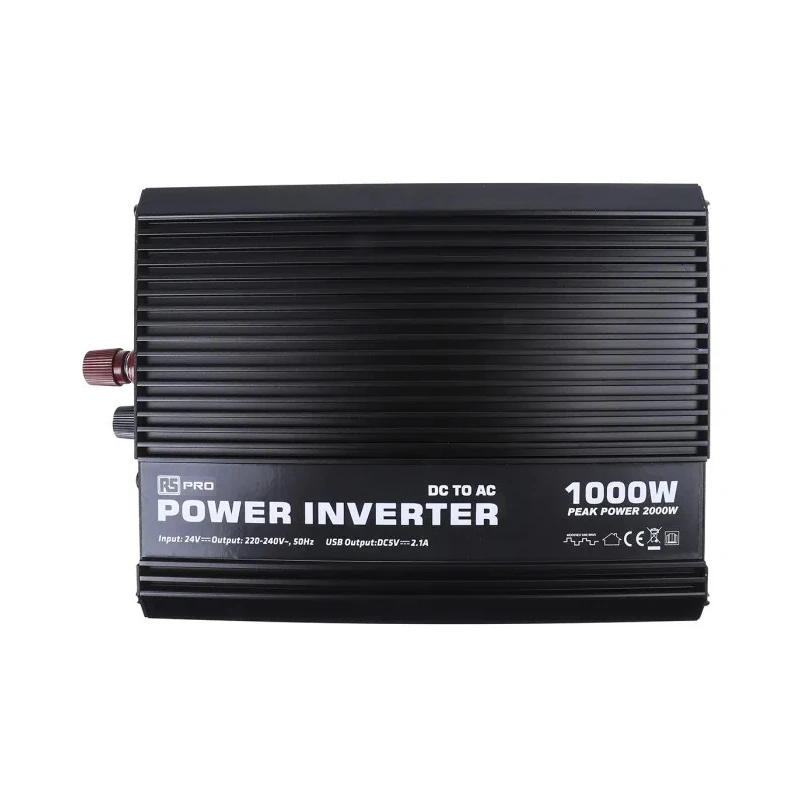

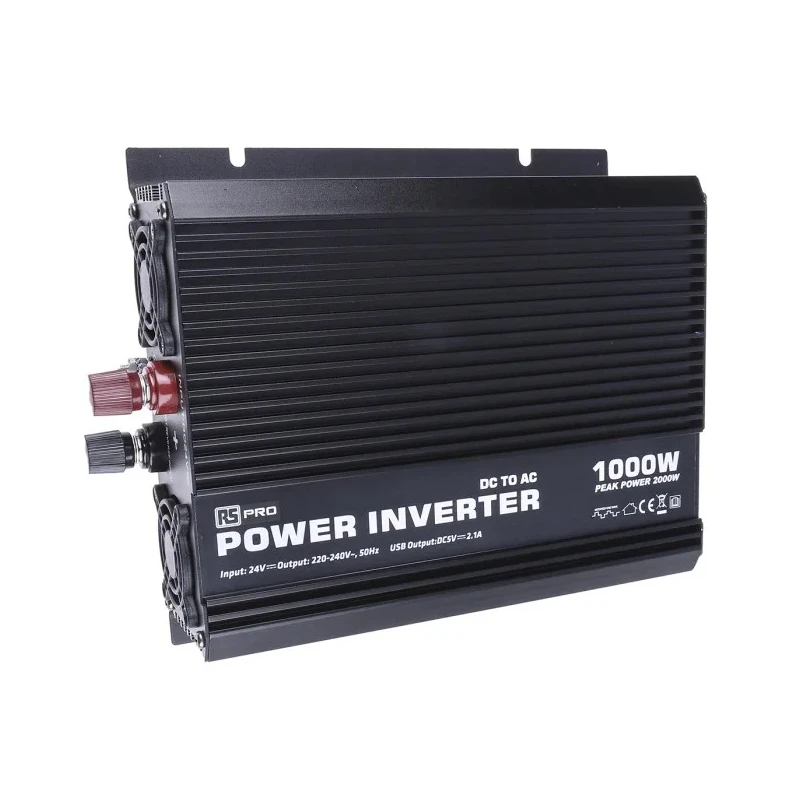

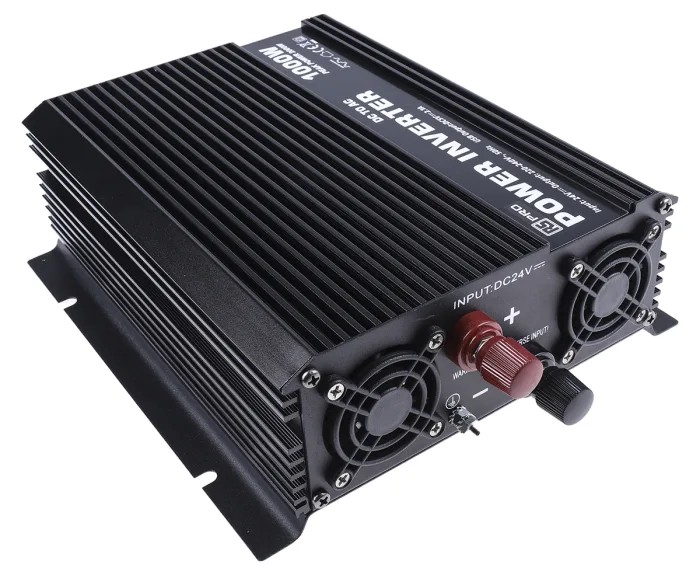

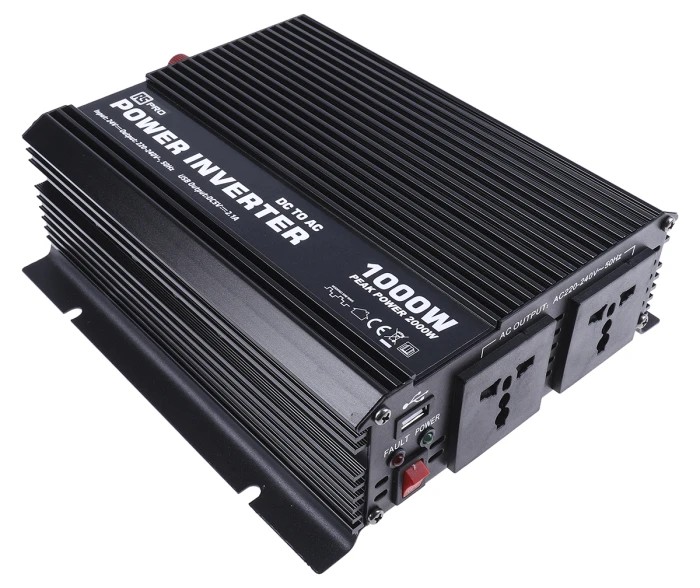

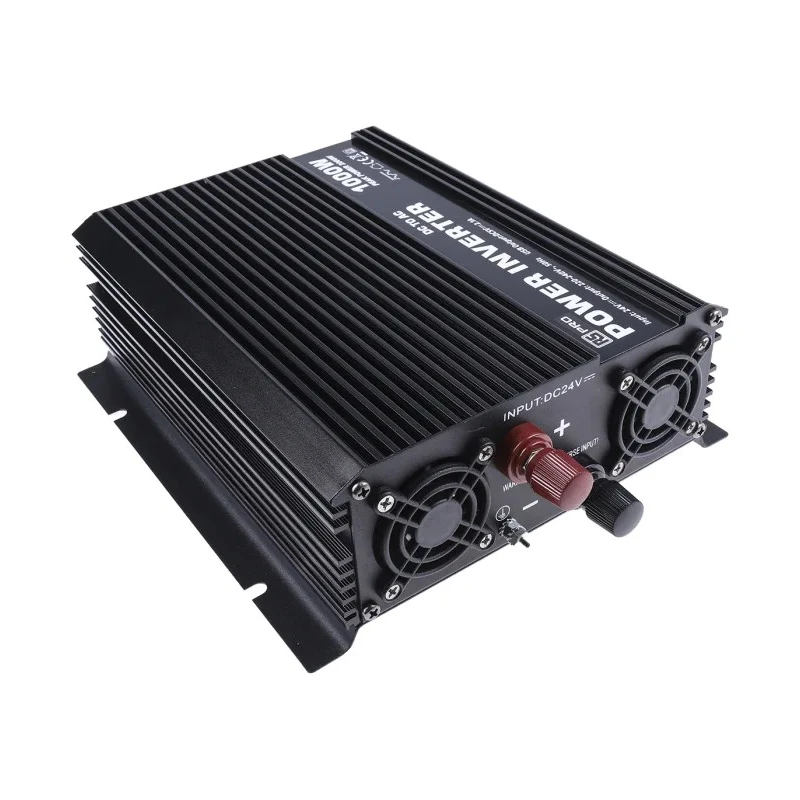

RS PRO 1kW Power Inverter 24V DC Input 230V AC Output Universal Connector Modified Sine Wave 816-0062
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / Power Inverters RS PRO 1kW Power Inverter, 24V dc Input, 230V ac Ou |
| Brand | RS PRO |
| Length | 272.5mm |
| Model | 816-0062 |
| Depth | 77mm |
| Gross Weight | 2.4kg |
| Width | 208mm |
| Output Power | 1kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Protection features | Over Temperature Protection, Over Voltage Protection, Short Circuit Protection, Overload Protection, Reverse Polarity Protection |
| Input Voltage | 24V dc |
| Output Voltage | 230V ac |
| Standards/Approvals | CE, RoHS |
| Output Connector Type | Universal |
Key Features
- Converts 24V DC power to 230V AC using a modified sine wave.
- Provides continuous output power of 1,000W and intermittent power of 2,000W.
- Equipped with universal AC output connector and USB socket.
- Features over temperature, over voltage, short circuit, overload, and reverse polarity protections.
- Durable anodized aluminium housing for optimal heat dissipation.
- Manual on/off switch with LED indicators for operation and fault.
- Compact dimensions of 272.5mm length, 208mm width, and 77mm depth.
- Operates within a temperature range of 0°C to 40°C.
Product Description
RS PRO 816-0062 is a 1,000 W fixed installation power inverter designed to convert 24 V DC input to 230 V AC output using a modified sine wave. This device enables rerouting of car battery or other 24 V DC power sources to supply AC power for electrical tools and equipment where mains power is unavailable.
The inverter is housed in a durable anodized aluminium case which provides excellent heat dissipation and ruggedness for industrial and mobile applications. It includes a universal AC output connector suitable for UK/EU power sockets as well as a USB socket for powering or charging USB devices.
Safety is a key feature with integrated protections against over temperature, over voltage, short circuit, overload, and reverse polarity, ensuring reliable and safe operation for both the user and connected equipment. The unit operates within a temperature range of 0°C to 40°C and features manual on/off control and LED indicators for power and fault conditions.
The compact form factor with dimensions of 272.5 mm (L) x 208 mm (W) x 77 mm (D) and a weight of 2.4 kg allows easy fixed installation in vehicles, off-grid systems, or industrial settings requiring DC to AC conversion.
This RS PRO inverter is widely applicable for industrial, automotive, laboratory, construction, and commercial environments where robust and reliable AC power is needed from DC sources. It is an essential accessory for powering tools and devices safely and efficiently in the absence of mains electricity.
Converts 24 V DC input into 230 V AC using a modified sine wave. Continuous power rating of 1,000 W with intermittent power up to 2,000 W. Integrated USB and universal AC sockets for versatile connectivity. Robust anodized aluminium housing for durability and heat management.
Multiple built-in protections safeguard connected equipment and users. Compact size and lightweight design enable flexible installation options. Operating temperature range from 0°C to +40°C. Explore more high-quality Power Inverters and electrical components with RS PRO at EnvMart for assured performance and value in your projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The continuous output power of this inverter is 1,000 W, with the capability to provide intermittent power of up to 2,000 W.
This model accepts a 24 V DC input voltage.
The inverter provides a 230 V AC output voltage.
It features over temperature, over voltage, short circuit, overload, and reverse polarity protections.
The dimensions of this unit are 272.5 mm in length, 208 mm in width, and 77 mm in depth.
The weight of this inverter is 2.4 kg.
It operates within a temperature range of 0°C to 40°C.
It is equipped with a universal AC output connector suitable for UK/EU power sockets, along with a USB socket.
This model is designed for industrial and mobile applications, making it suitable for various environments, including outdoor use, as long as it operates within specified temperature limits.
The inverter complies with CE and RoHS standards.
It features a manual on/off switch with LED indicators for operation and fault conditions.
