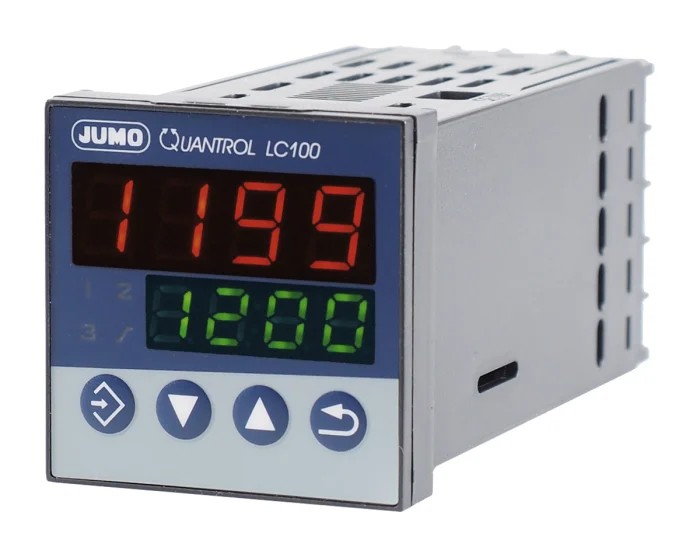

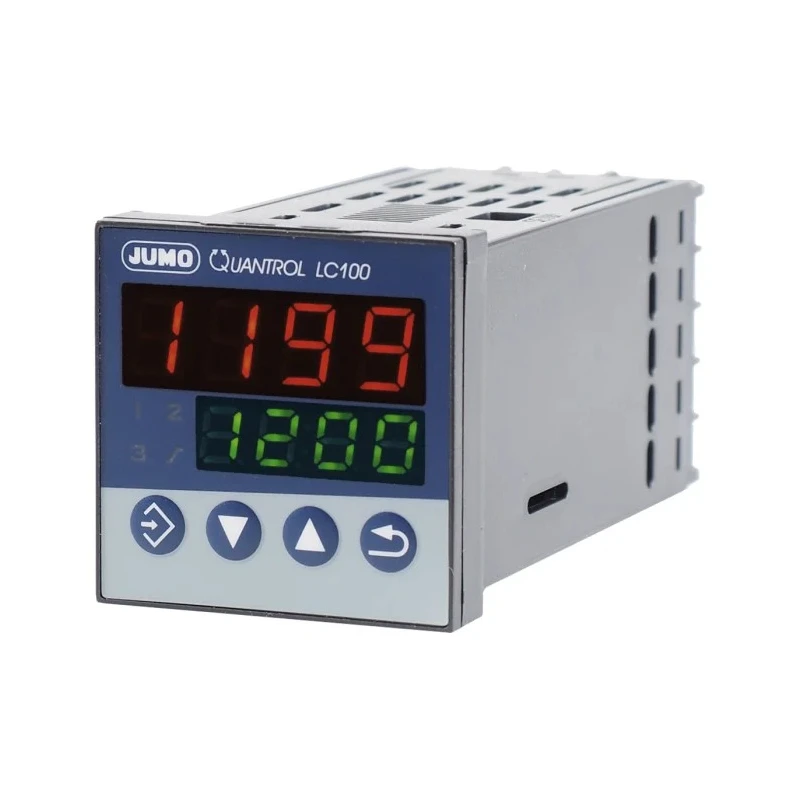

Jumo QUANTROL Panel PID Temperature Controller 1 Input, 1 Output 1 Relay 240V AC On-Off 702031/8-0000-23

Jumo 702031/8-0000-23 QUANTROL Panel PID Temperature Controller is a precision device designed for industrial temperature control applications. It offers a single relay output and one universal analogue input compatible with various sensor types including RTD temperature probes, thermocouples, and voltage/current signals.

This controller supports both 2-state and 3-state control applications, including regulating valves or SCR power controllers via continuous output. Its compact 48mm width and 95mm panel depth make it ideal for space-efficient panel mounting.

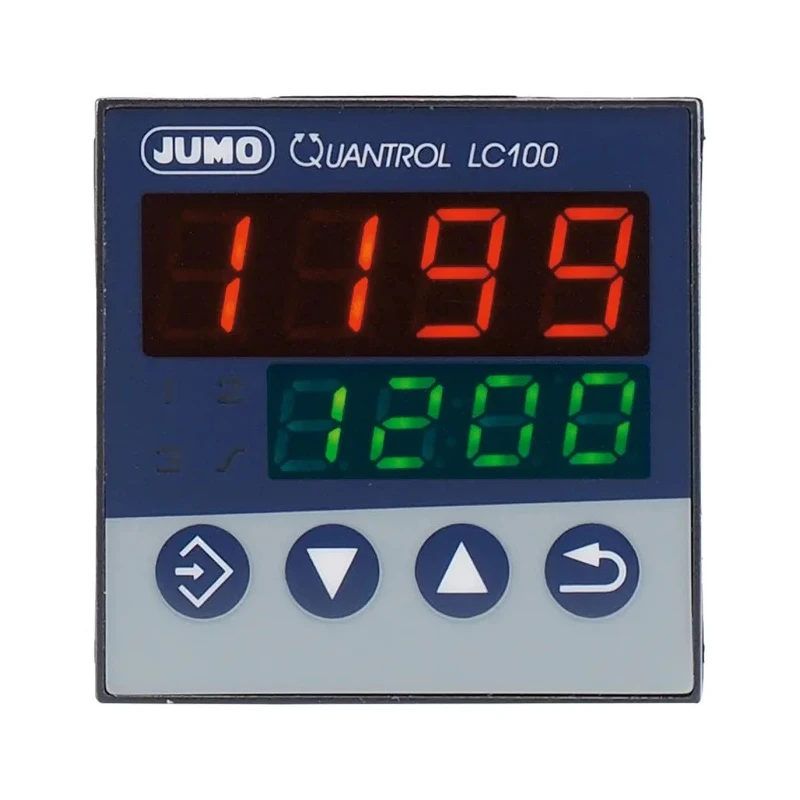

The device features an LED display for clear output and status indication, along with diagnostics and configurable alarms for enhanced reliability. Communication is facilitated via RS485 Modbus RTU protocol, enabling integration into automated systems.

Additional features include configurable limit value monitoring, firing mode curves suitable for pottery kilns, and self-optimization through auto tuning for exact PID control. The controller also offers manual and automatic modes, ramp and timer functions, and key lock for secure operation.

Rated IP65, this controller is constructed for durability in industrial settings and complies with standards such as DIN EN 61010, DIN EN 61326-1, and UL 61010-1. The product is manufactured in Germany, assuring high quality and reliability.

This temperature controller is widely used in industrial, manufacturing, and laboratory environments where precise temperature regulation is critical. Its programmable adaptability and robust design make it an ideal choice for diverse process control applications.

Compact and user-friendly self-optimising device for temperature regulation. Supports universal analogue input for RTD probes, thermocouples, and voltage/current signals. Equipped with RS485 Modbus RTU digital communication interface.

Durable LED display indicating output and device status. Robust IP65-rated panel mount design for industrial environments. Configurable limit value monitoring and precise PID control with auto tuning. Includes firing curve for pottery kilns and sensor monitoring capabilities.

Features USB mini-B setup interface for easy programming. Explore the range of industrial Temperature Controllers available at EnvMart for reliable process control solutions.
