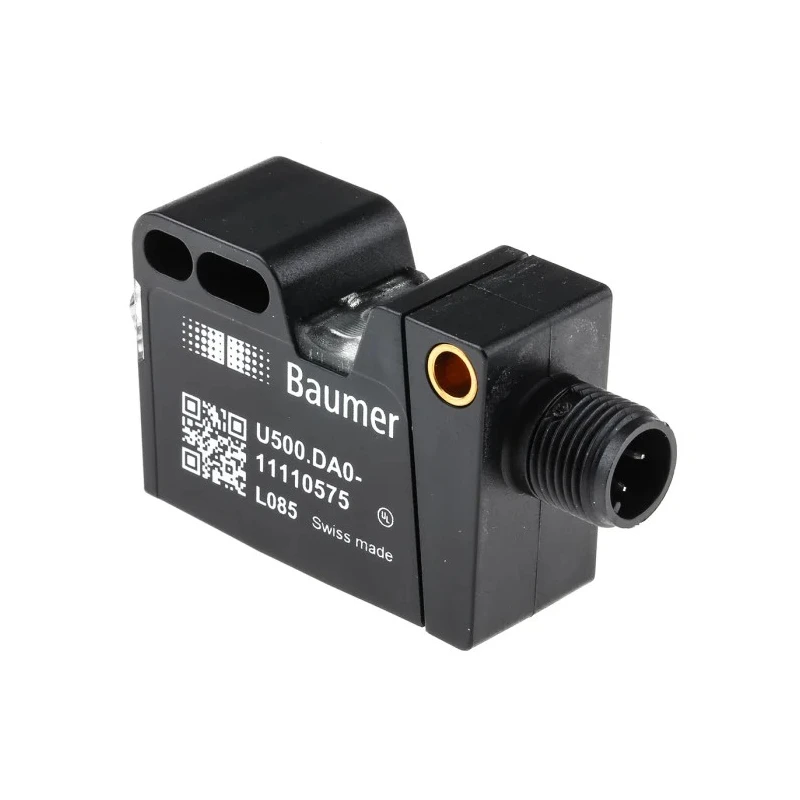

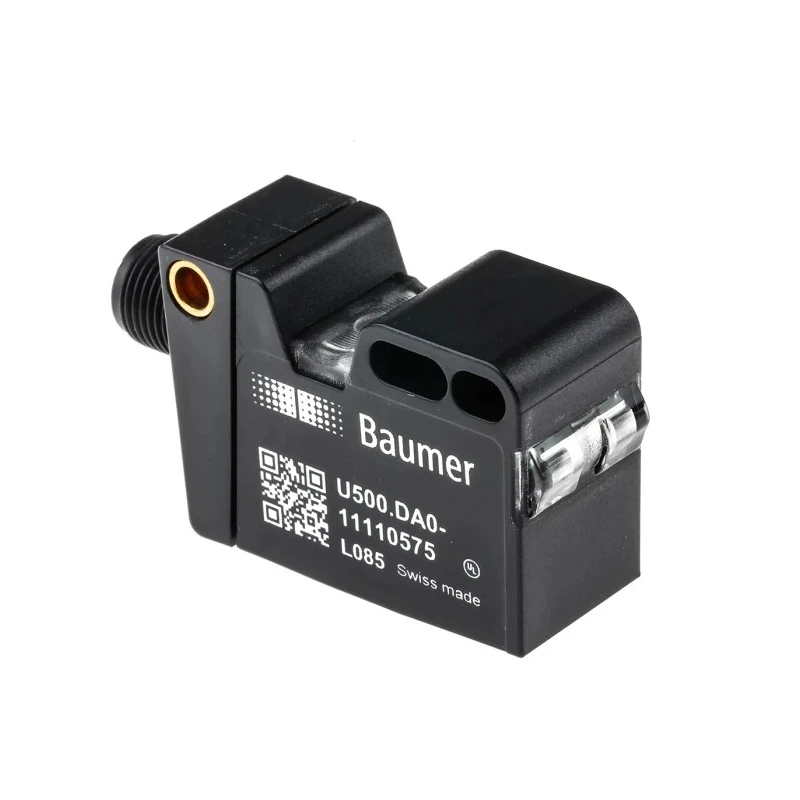

Baumer Block Ultrasonic Proximity Sensor M12 x 1 Thread Size 1000 mm Detection Range 30 V DC Maximum U500.DA0-AA1B.72O
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Response time | 80ms |
| Length | 18mm |
| Model | U500.DA0-AA1B.72O |
| Depth | 32.2mm |
| IP Rating | IP67 |
| Width | 45.1mm |
| Housing Material | Polymethyl Methacrylate, Acrylonitrile Styrene Acrylate |
| Output type | 4 to 20 mA |
| Maximum Operating Temperature | 65°C |
| Thread Size | M12 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 38mA |
| Terminal type | M12 Connector |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Maximum Switching Frequency | 220kHz |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 1000mm |
Key Features
- Features IP67 ingress protection for robust industrial use.
- Constructed with Polymethyl Methacrylate and Acrylonitrile Styrene Acrylate housing materials.
- Includes a highly visible LED indicator for operational status.
- Equipped with advanced qTeach programmable operation for easy configuration.
- Provides 4 to 20 mA output current with 38 mA switching current.
- Supports a maximum switching frequency of 220 kHz with 80 ms response time.
- Flexible mounting with multiple holes and M12 connector terminal type.
- Operates reliably from -25°C up to 65°C ambient temperature.
Product Description
Baumer U500.DA0-AA1B.72O Block Ultrasonic Proximity Sensor is a high-quality sensor tailored for precision detection in demanding industrial applications. Featuring a robust block-style form factor with an M12 x 1 thread and compact dimensions of 18 mm length, 45.1 mm width, and 32.2 mm depth, this sensor delivers reliable operation up to 1000 mm detection range. The device uses a Polymethyl Methacrylate and Acrylonitrile Styrene Acrylate housing that offers solid protection and durability, supported by an IP67 rating ensuring ingress protection against dust and water.
This ultrasonic sensor operates with a maximum supply voltage of 30 V DC and offers a steady output current range of 4 to 20 mA. The unit's switching current is rated at 38 mA, with a maximum switching frequency of 220 kHz and an 80 ms response time, which caters to fast and accurate proximity detection requirements in automation, manufacturing, and material handling.
The sensor incorporates Baumer's advanced qTeach programmable operation method, simplifying calibration and sensitivity adjustment. A highly visible LED indicator is integrated for real-time operational feedback. Additionally, a QR code on the housing provides immediate online access to detailed product documentation, supporting efficient maintenance and setup processes.
Designed with flexibility in mounting, the sensor includes multiple fastening holes and uses an M12 connector for secure electrical connection. It operates reliably within a temperature range of -25°C to 65°C, suitable for diverse industrial environments. The product is manufactured in Switzerland, assuring high-quality standards and precision engineering.
This sensor is ideal for applications in industrial automation, quality control processes, robotics, and safety systems where accurate and reliable proximity detection is critical.
IP67 ingress protection for harsh environments. Robust Polymethyl Methacrylate and Acrylonitrile Styrene Acrylate housing materials. Advanced qTeach programming for adjustable sensitivity. High switching frequency and fast response time.
Compact block design with M12 x 1 thread size. Built-in LED indicator and QR code for ease of use and maintenance. Wide operating temperature range [-25°C to 65°C]. Industrial grade for automated manufacturing and quality assurance applications.
Explore more Baumer sensors and proximity sensor products on EnvMart for enhanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 1000 mm.
It provides a steady output current range of 4 to 20 mA.
The maximum switching frequency is 220 kHz.
The dimensions are 18 mm in length, 45.1 mm in width, and 32.2 mm in depth.
It operates reliably within a temperature range of -25°C to 65°C.
The housing is constructed from Polymethyl Methacrylate and Acrylonitrile Styrene Acrylate.
The thread size is M12 x 1.
The response time is 80 ms.
The maximum supply voltage is 30 V DC.
Yes, it includes a highly visible LED indicator for operational status.
It uses an M12 connector for secure electrical connection.
It is manufactured in Switzerland.
