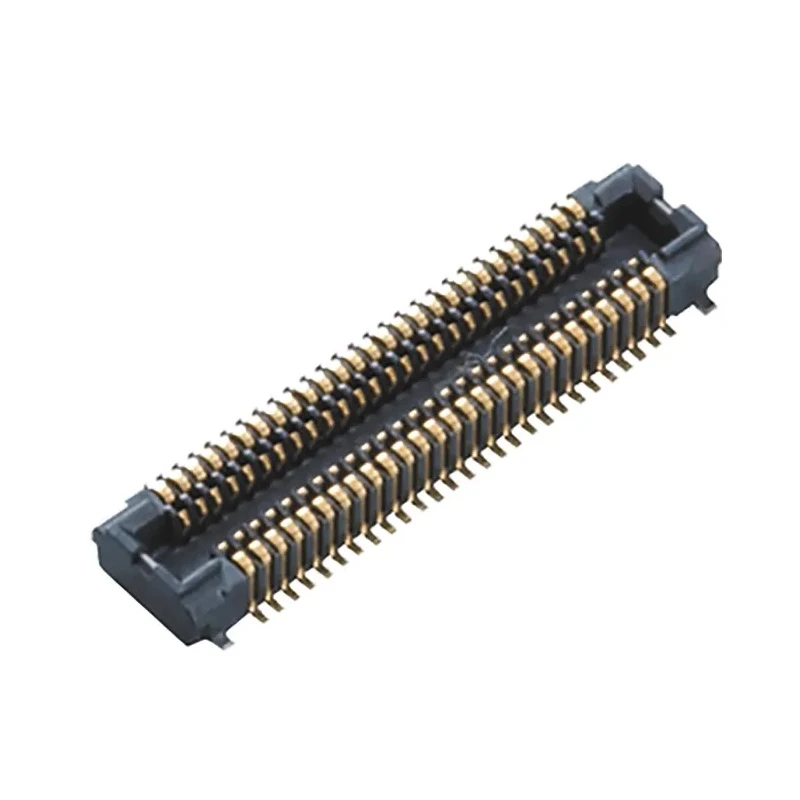

Panasonic P4S Series Vertical Surface PCB Socket, 60-Contact, 2 Row, 0.4 mm Pitch Solder AXT360124

Panasonic AXT360124 is a P4S Series Vertical Surface PCB Socket featuring 60 contacts arranged in 2 rows with a 0.4 mm pitch solder termination. This socket is engineered for high reliability board-to-board connections in various industrial and mobile device applications.

The construction utilizes a tough contact design that provides excellent vibration resistance ensuring stable electrical performance in demanding environments. The housing is made of liquid crystal polymer, offering robust durability and thermal stability.

This socket supports a current rating of 12A and can operate at voltages up to 60V, withstanding temperatures ranging from -55°C to 85°C. Its contact parts are copper-based with gold and nickel plating to enhance conductivity and resist corrosion.

The vertical orientation with a compact stacking height of 1.5mm fits well for surface mount PCB assembly, offering space-saving benefits and design flexibility. Pattern wiring is possible on the under surface of the connector, enabling custom board layouts.

It features a female contact gender and a board-to-board connector system, making it suitable for precise and secure electronic connections. The socket is manufactured in Japan, reflecting strict quality controls and adherence to industry standards.

This product meets the needs of industrial, mobile, and electronic device manufacturers requiring durable, high-performance PCB sockets for reliable electrical connections. Panasonic’s P4S series also includes models supporting ambient temperatures of 125°C and shielded types for specialized applications.

Features a tough contact construction for excellent vibration resistance. Made from liquid crystal polymer housing for durability. Supports current rating up to 12A and voltage rating of 60V. Operates reliably in temperature range from -55°C to 85°C.

Contact plating uses gold and nickel for corrosion resistance. Vertical orientation with stacking height of 1.5mm, suitable for surface mount assembly. Connector system is board-to-board with female contact gender. Pattern wiring possible on the connector underside for flexible PCB designs.

Manufactured in Japan ensuring high quality standards. Find more high-quality Panasonic PCB Sockets and connectors in the Electronics & Electricals category at EnvMart.
