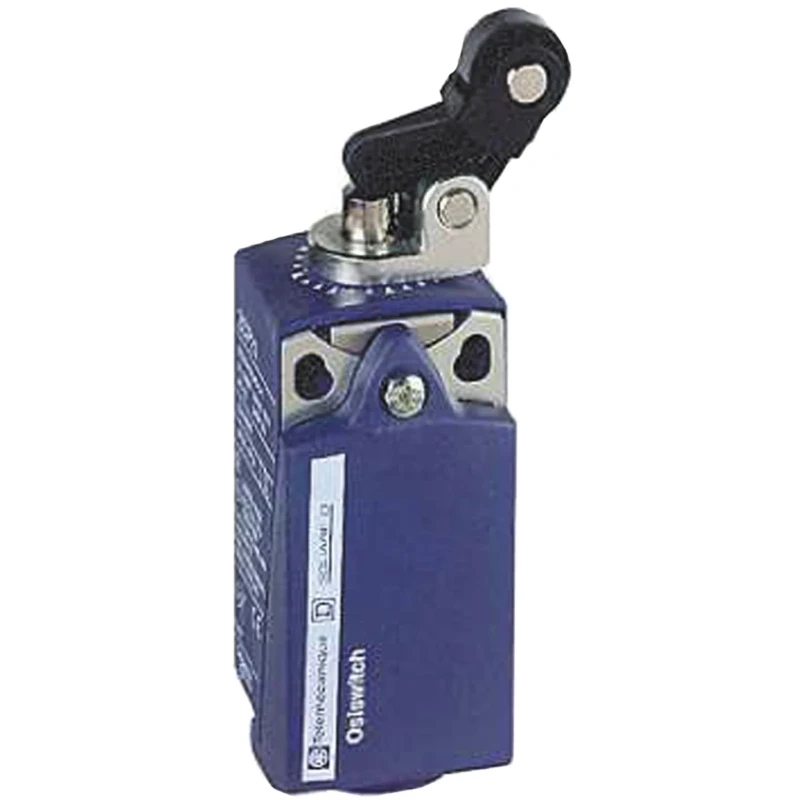

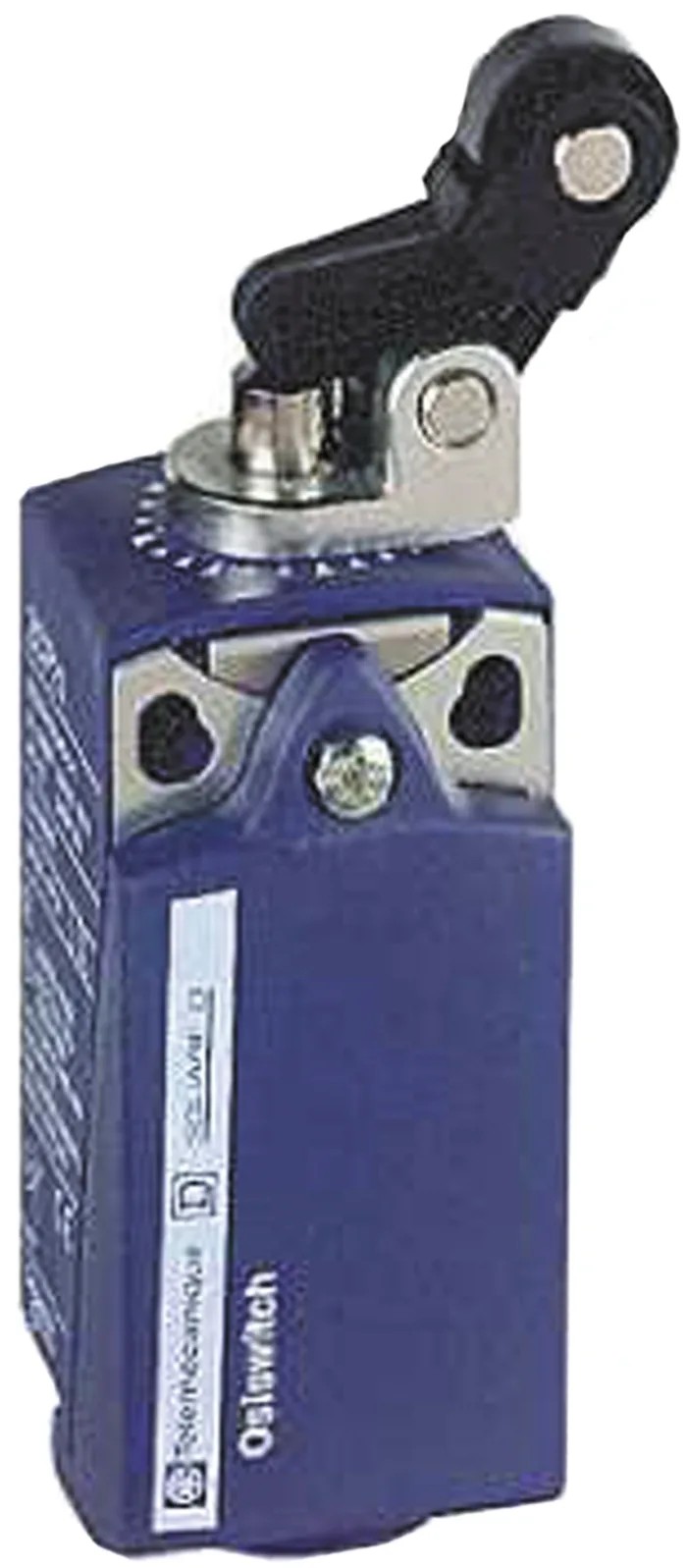

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing XCKP2127N12
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 65mm |
| Model | XCKP2127N12 |
| Depth | 30mm |
| IP Rating | IP67, IP66 |
| Width | 31mm |
| Housing Material | Plastic |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Front |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | CE, CSA, EN, IEC, RoHS, UL |
| Operating Force | 6Nm |
| Mechanical Life | 1000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 12.7 mm |
Key Features
- Equipped with roller plunger actuator enabling precise mechanical detection.
- Rated for operating temperatures from -25°C to 70°C.
- Snap action contact type ensures reliable switching performance.
- Compact footprint with dimensions 65mm length, 31mm width, and 30mm depth.
- High mechanical durability with 1,000,000 operation lifespan.
- Terminal connections via secure screw terminals for stable wiring.
- Capable of switching voltages up to 250V DC and 240V AC.
- Front mounting orientation facilitates ease of installation.
Product Description
Telemecanique Sensors XCKP2127N12 is a robust roller plunger limit switch belonging to the OsiSense XC series. This device operates effectively at 240V AC, designed with a plastic housing to provide strong IP67 and IP66 ingress protection, making it suitable for industrial applications requiring dust-tight and water-resistant switches.
The actuator type is a roller plunger, providing reliable mechanical detection through physical contact, ideal for control systems in manufacturing, escalators, and material handling. The limit switch features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contacts employing snap action for quick and dependable switching.
Dimensionally compact, the switch measures 65mm in length, 31mm in width, and 30mm in depth. It is built for a long mechanical life of up to 1,000,000 operations and operates reliably within a temperature range of -25°C to 70°C. Installation is straightforward with front mounting orientation and screw terminals ensuring solid and easy electrical connections. The conduit entry of 12.7 mm facilitates integration with standard cable management systems.
Telemecanique's OsiSense XC series is globally recognized and certified, conforming to CE, CSA, EN, IEC, RoHS, and UL standards. This assures compliance with quality, safety, and environmental requirements in diverse industrial, laboratory, construction, HVAC, and material handling applications.
Roller plunger actuator for precise mechanical switching. IP67 and IP66 rated plastic housing for environmental protection. Contact configuration of 1 NO and 1 NC Snap Action contacts. Switching capacities of up to 250V DC and 240V AC.
Operating temperature range from -25°C to 70°C. Robust design guarantees 1,000,000 mechanical operations lifespan. Front mounting orientation for ease of installation. Screw terminal connections for reliable electrical wiring.
Conduit entry diameter of 12.7 mm supports standard cabling. Certified for CE, CSA, EN, IEC, RoHS, and UL standards.
This limit switch is ideal for a broad range of industrial automation tasks, including electrical assembly equipment, escalators, and material handling systems, where accurate position detection and reliability are critical. The durable construction provides assurance against environmental factors, including dust and water ingress.
Explore more products in the Limit Switch category at EnvMart for trusted automation components that meet stringent industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch voltages up to 250V DC and 240V AC.
It operates reliably within a temperature range of -25°C to 70°C.
The contact configuration features 1 normally open (NO) and 1 normally closed (NC) contact.
This model has a front mounting orientation, facilitating easy installation.
It uses a roller plunger actuator for precise mechanical detection.
The switch is designed for a mechanical life of up to 1,000,000 operations.
The dimensions are 65mm in length, 31mm in width, and 30mm in depth.
It features screw terminal connections for reliable electrical wiring.
This unit has an IP67 and IP66 rating, providing dust-tight and water-resistant protection.
It is certified for CE, CSA, EN, IEC, RoHS, and UL standards.
The conduit entry diameter is 12.7 mm, supporting standard cable management systems.
It is ideal for industrial automation tasks, including electrical assembly equipment, escalators, and material handling systems.
