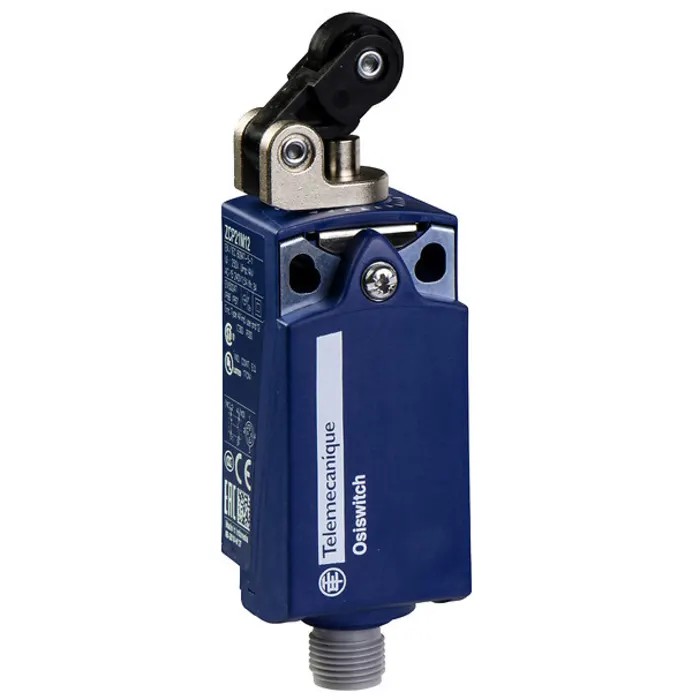

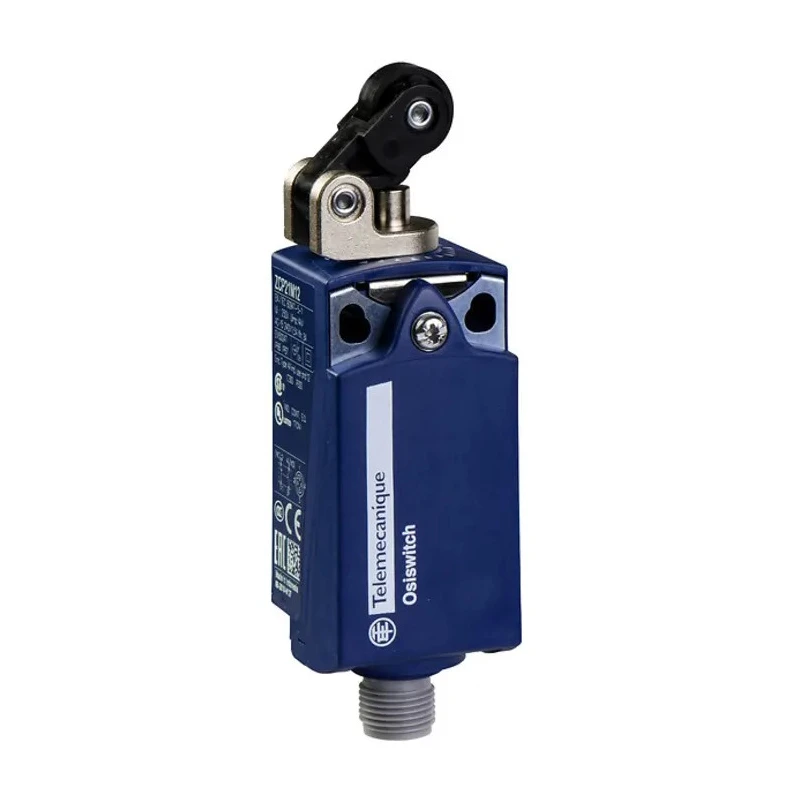

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, 1 NO/1 NC, IP67 IP66, Plastic Housing XCKP2121M12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 65mm |
| Model | XCKP2121M12 |
| Depth | 30mm |
| IP Rating | IP67, IP66 |
| Width | 31mm |
| Housing Material | Plastic |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Front |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | Screw |
| Standards/Approvals | CE, UL, RoHS, IEC, EN, CSA |
| Operating Force | 0.1Nm |
| Mechanical Life | 1000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M12 |
Key Features
- The 1 NO/1 NC snap action contact configuration enables reliable changeover control.
- Designed for operation with switching currents up to 3A in AC and DC circuits.
- Equipped with screw terminals and M12 conduit entry for secure wiring and cable routing.
- Rated for 240V AC and 250V DC switching voltages, suitable for various electrical loads.
- The device operates between -25°C and 70°C ambient temperatures, ideal for tough industrial conditions.
- The mechanical life is rated at 1,000,000 operations, ensuring long-term durability.
- Front mounting design with a compact 65mm length and 31mm width for ease of installation.
- Operating torque of 0.1Nm provides sensitive and precise actuation response.
Product Description
Telemecanique Sensors XCKP2121M12 is a precision OsiSense XC Series roller plunger limit switch designed for a wide range of industrial automation applications. Housed in a durable plastic enclosure, it provides reliable switching performance with ingress protection ratings of IP67 and IP66, making it suitable for dust-prone and wet environments.
This limit switch utilizes snap action contacts with a 1 NO/1 NC configuration, delivering quick and repeatable state changes. It supports switching in both AC and DC circuits up to 3 amps, with maximum switching voltages of 240V AC and 250V DC, catering to flexible control requirements.
The device features screw terminal connections and a single M12 conduit entry that allows straightforward cable ingress and secure installation. Its front mounting orientation and compact dimensions (65mm length, 31mm width, 30mm depth) enable easy integration into industrial machinery where space and accessibility are critical.
Operational temperature range covers -25°C to 70°C to withstand typical industrial ambient conditions, while the mechanical life expectancy of one million operations ensures long service intervals before replacement. The low operating torque of 0.1Nm enhances sensitivity, enabling precise limit detection and actuation.
Applications include conveyor end-of-travel detection, door position sensing for enclosures, safety interlock systems on access panels, and position feedback in packaging and pick-and-place machinery, demonstrating its versatility in manufacturing and automation environments.
The 1 NO/1 NC snap action contact configuration supports effective switching operations. IP67 and IP66 rated plastic housing provides robust environmental protection. Screw terminal and M12 conduit entry facilitate secure electrical connections.
Operates across a wide temperature range from -25°C to 70°C for industrial use. Rated mechanical life of 1,000,000 operations ensures durability and reliability. Suitable for various industrial automation uses including safety and position sensing.
Explore the complete OsiSense XC Series and related Limit Switches at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports switching currents up to 3A in both AC and DC circuits.
The maximum switching voltages are 240V AC and 250V DC.
It operates effectively within a temperature range of -25°C to 70°C.
The mechanical life is rated at 1,000,000 operations, ensuring long service intervals.
It features a 1 NO/1 NC snap action contact configuration for reliable switching.
This model uses a roller plunger actuator type for actuation.
The dimensions are 65mm in length, 31mm in width, and 30mm in depth.
It features screw terminal connections and a single M12 conduit entry for secure wiring.
The housing is made of plastic, providing durability in various environments.
It has IP67 and IP66 ratings, making it suitable for dust-prone and wet environments.
It complies with CE, UL, RoHS, IEC, EN, and CSA standards.
It is suitable for applications such as conveyor end-of-travel detection and safety interlock systems.
