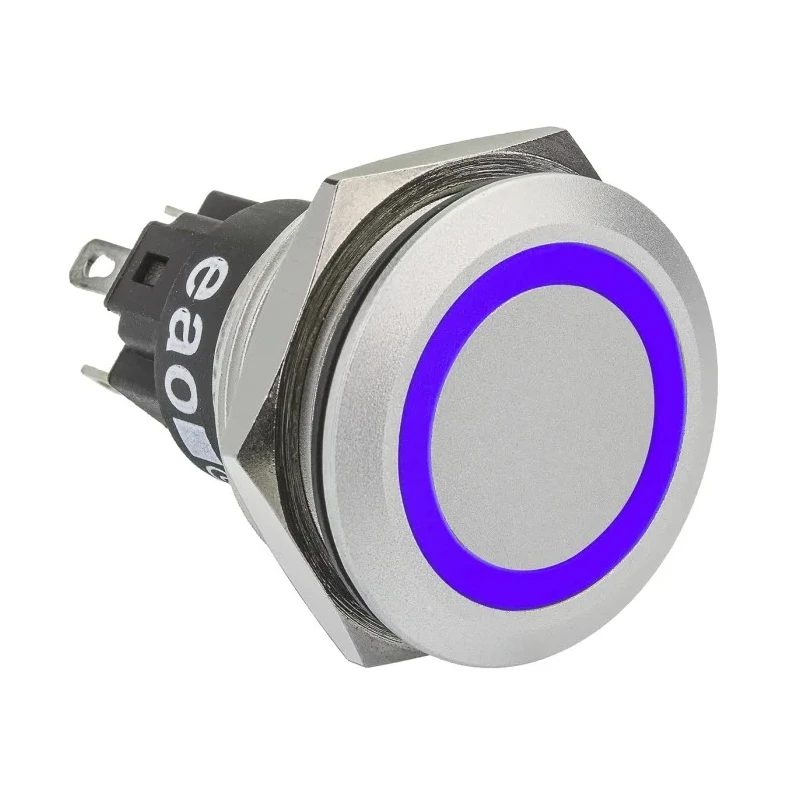

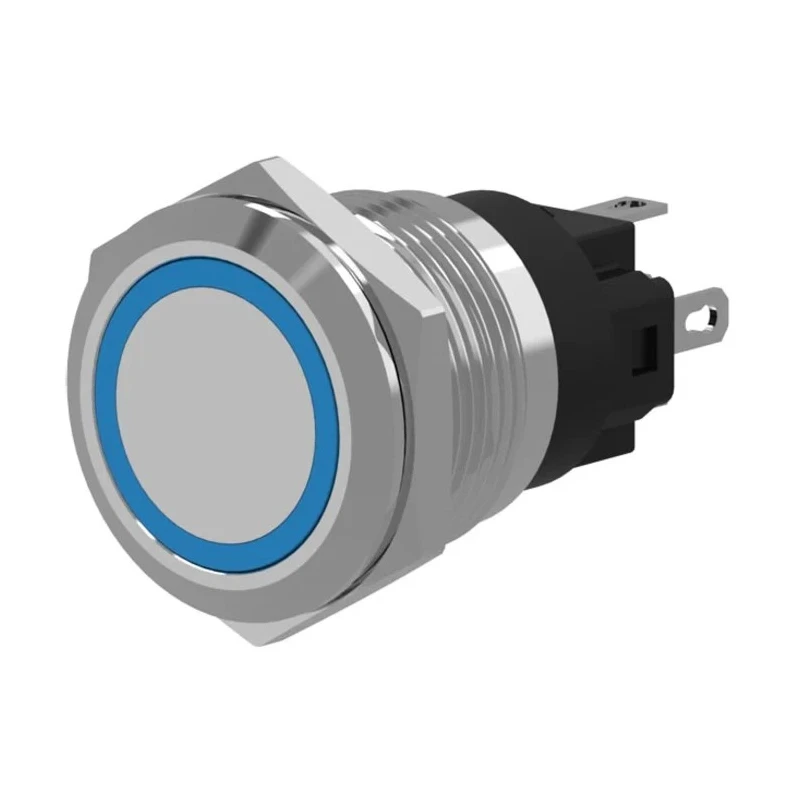

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.3 mm Cutout, SPDT, Blue LED 82-6551.1123



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	NC, NO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Natural
Contact DC Voltage	240V
Actuator Style	Flat
Switch Contact Current	3A

Key Features

Features a 22.3 mm panel cutout designed for secure mounting.
Blue LED illumination provides clear visibility in low light environments.
Constructed with silver alloy contacts offering excellent conductivity and corrosion resistance.
Rated for 240 V contact voltage with a maximum contact current of 3A.
Designed with IP65 and IP67 ratings for dust-tight protection and water resistance.
Flat actuator style with natural color enhances ergonomic operation.
Suitable for industrial applications such as ticket dispensers, vending machines, and security systems.
Operates reliably in temperatures ranging from -30°C to 70°C.

Product Description

The EAO 82-6551.1123 is a high-quality illuminated push button switch designed for panel mounting with a 22.3 mm cutout. This momentary switch features an SPDT (Single Pole Double Throw) contact configuration and a blue LED to enhance visibility in dim or dark settings. The flat actuator style with natural color provides easy and ergonomic operation.

Constructed with silver alloy contacts, the switch delivers excellent electrical conductivity and superior resistance to corrosion, which contributes to reliable performance in demanding industrial environments. It is rated for 240 V contact voltage with a maximum contact current capacity of 3A, making it suitable for a wide range of electrical control applications.

With an ingress protection rating of IP65 and IP67, this switch ensures protection against dust ingress and low-pressure water jets, thus suitable for harsh industrial conditions. It operates efficiently over a broad temperature range from -30°C to 70°C and meets multiple international standards including CB, CCC, cUL, and UL.

Its durable aluminium bezel offers impact resistance and corrosion protection, making it ideal for long-term industrial use. The switch's low operating current of 14mA contributes to energy efficiency while maintaining operational reliability.

Typical applications include ticket dispensers, vending machines, security systems, and elevators. This push button switch is engineered for industrial, manufacturing, automation, and control panel use where robust and reliable manual input devices are required.

Features a 22.3 mm panel cutout designed for secure mounting. Blue LED illumination provides clear visibility in low light environments. Constructed with silver alloy contacts offering excellent conductivity and corrosion resistance.

Rated for 240 V contact voltage with a maximum contact current of 3A. Designed with IP65 and IP67 ratings for dust-tight protection and water resistance. Flat actuator style with natural color enhances ergonomic operation.

Suitable for industrial applications such as ticket dispensers, vending machines, and security systems. Operates reliably in temperatures ranging from -30°C to 70°C. Complies with CB, CCC, cUL, and UL standards and approvals.

Long mechanical life exceeding one million cycles ensures durability. Discover a comprehensive range of professional Push Button Switches and industrial control components at EnvMart for your automation and electrical needs.
