Eaton RMQ Titan M22 Series Push Button Switch, Spring Return, Momentary, Panel Mount, 22 mm Cutout 216510 M22-D-R-X0/K01

Eaton 216510 M22-D-R-X0/K01 RMQ Titan M22 Series Push Button Switch is a robust and reliable industrial panel mount switch designed to provide fast and effective control over machinery functions. Featuring a spring return and momentary operation, this switch activates only during pressing and returns to its original position automatically, making it ideal for stop-start control applications.

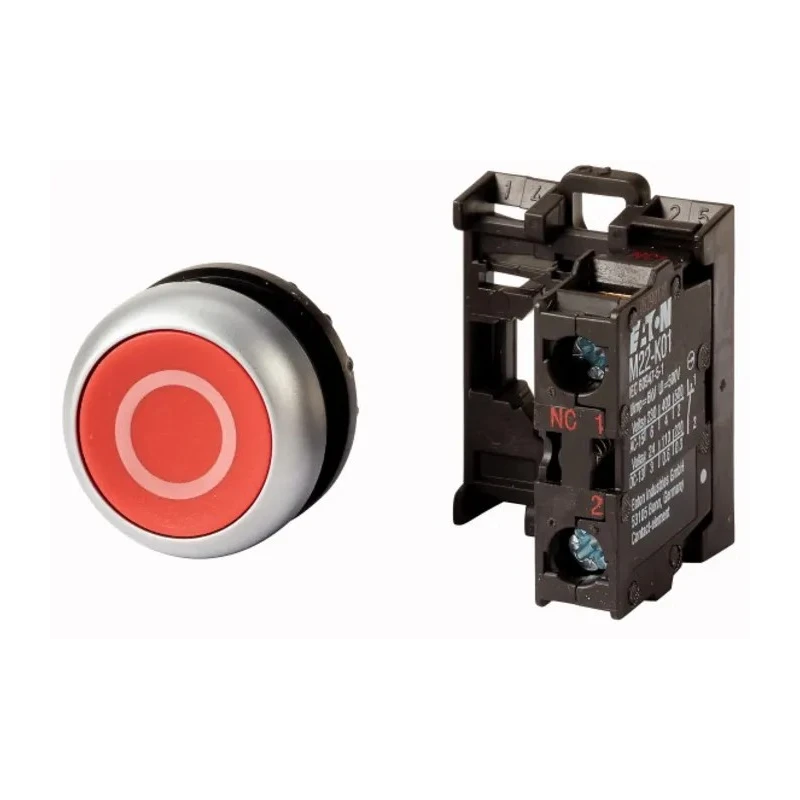

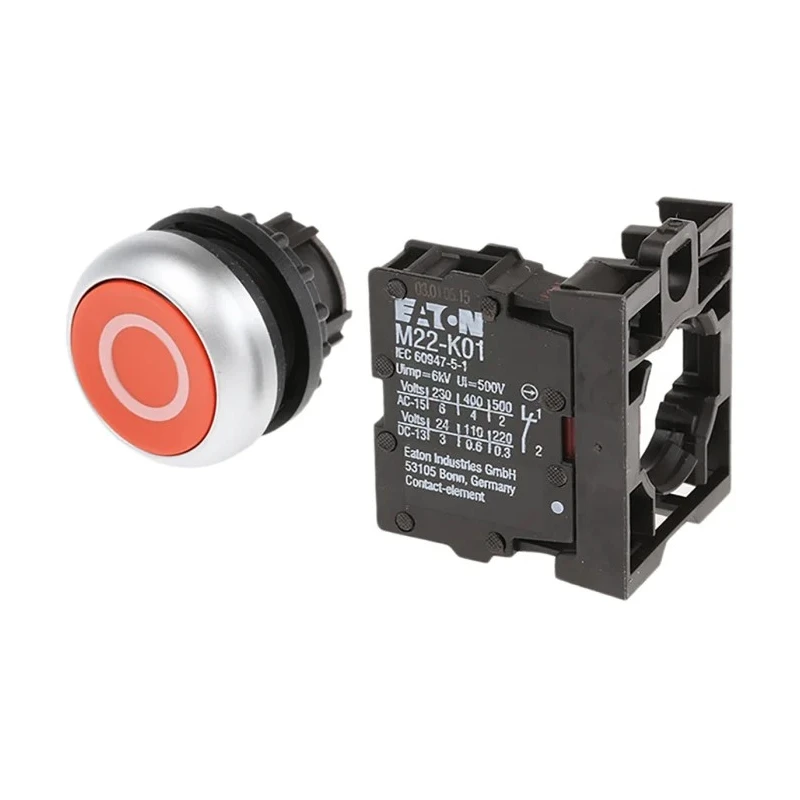

The red round actuator offers an ergonomic and flush-mounted design for ease of use. It is equipped with a SPST contact configuration and screw terminal connections to ensure durable and physically secure contacts without requiring specialized tools for installation.

This push button switch is IP67 and IP69K rated, offering excellent protection against dust ingress and high-pressure, high-temperature water jets, making it suitable for harsh industrial and outdoor environments where washdown and contamination resistance are critical.

The switch supports a contact DC voltage of up to 220 V and AC voltage up to 500 V, catering to various industrial control circuit requirements. Moreover, it operates reliably within a broad temperature range from -25°C to +70°C, ensuring performance stability under extreme conditions.

Its compact dimensions (70 mm length, 30 mm width, 30 mm height) make it easy to integrate into existing control panels. Certified to IEC/EN 60947-5, UL 508, and CSA standards with CE marking, it conforms to international safety and performance requirements.

This product is ideal for industrial automation, manufacturing plants, and machinery control panels needing precise and reliable push button operation with enhanced environmental protection.

Red actuator color for clear visual identification. Spring return mechanism ensures momentary contact operation. Panel mounting with standard 22 mm cutout size. SPST contact configuration for on/off switching. Screw terminal connections for reliable installation.

IP67 and IP69K ratings for dust and water resistance. Wide operating temperature range suited for harsh environments. Supports contact voltages of 220 V DC and 500 V AC. Compact size for easy panel integration. Certified to major industrial standards and CE marked.
