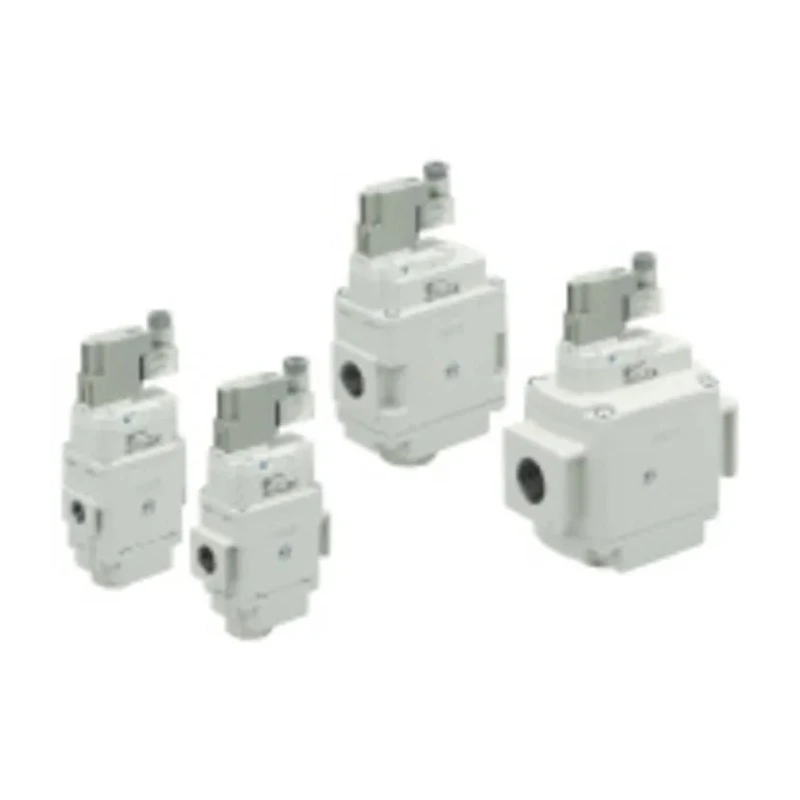

SMC Pneumatic Solenoid Start-Up Valve G AV Series 24V dc, 1/2 in Port, 3269 L/min Flow AV4000-F04-5DB-A

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Start-Up Valve G AV Series 24V dc, 1/2 in Port, 3269 L/min Flow AV4000-F04-5DB-A



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	98mm
Length	170mm
Model	AV4000-F04-5DB-A
Width	52mm
Mount Type	Stand Alone
Series	AV
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/2 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Actuation Type	Start-Up Valve
Maximum Flow Rate	3269L/min
Standards/Approvals	CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

Single solenoid operation consumes 0.35W of power to reduce electrical load.
Supports a high flow rate of 3269 L/min enabling rapid actuation.
Nitrile Rubber (NBR) seals are suitable for standard industrial air service.
Features G1/2 threaded female ports for easy pipework integration.
Three-position, two-port configuration allows controlled start-up air flow.
Stand-alone mounting allows easy retrofit installation.
Operates within 0°C to 50°C temperature range for ambient and medium.
Maximum operating pressure is 1 MPa with a proof pressure of 1.5 MPa.

Product Description

SMC AV4000-F04-5DB-A is a pneumatic solenoid start-up valve from the AV series designed for controlling air supply in automated industrial systems. Operating at 24V dc, it offers a compact, low-power solution with a high flow capacity of 3269 L/min, making it suitable for rapid actuation applications.

This valve includes a single solenoid operating at just 0.35W, reducing electrical consumption significantly. The Nitrile Rubber (NBR) seals provide reliable performance in standard compressed air environments.

The valve features a 1/2 inch G-threaded female port for straightforward pipe connectivity and a three-position, two-port arrangement that enables controlled start-up air flow, essential for soft-start pneumatic actuator control. Its stand-alone mount design simplifies retrofitting into existing assemblies.

Constructed with a robust die-cast aluminium body, it ensures strength while maintaining a lightweight profile. The electrical connection uses a DIN connector with dust protection rated at IP65, suitable for industrial environments.

This valve is ideal for automation lines, machine safety systems requiring controlled air supply, air-driven conveyors needing low-energy control components, modular pneumatic assemblies, and test rigs requiring repeatable start-up sequences. It is rated for operation from 0°C to 50°C and supports operating pressures from 0.2 MPa up to a maximum of 1 MPa.

Single solenoid consuming 0.35W to reduce electrical load. High flow capability of 3269 L/min supports rapid actuation. Nitrile rubber seals suitable for typical compressed air service. Threaded G1/2 female connections enable simple pipework integration.

Three-position, two-port arrangement allows controlled start-up flow. Stand-alone mount simplifies retrofit installation. Wide operation temperature range from 0°C to 50°C. Maximum operating pressure of 1 MPa with proof pressure 1.5 MPa.

Electrical DIN connector provides IP65 dust ingress protection. Durable die-cast aluminium body construction. Explore more Pneumatic Solenoid Valves and components in the Industrial Valves & Valve Fittings category at EnvMart.
