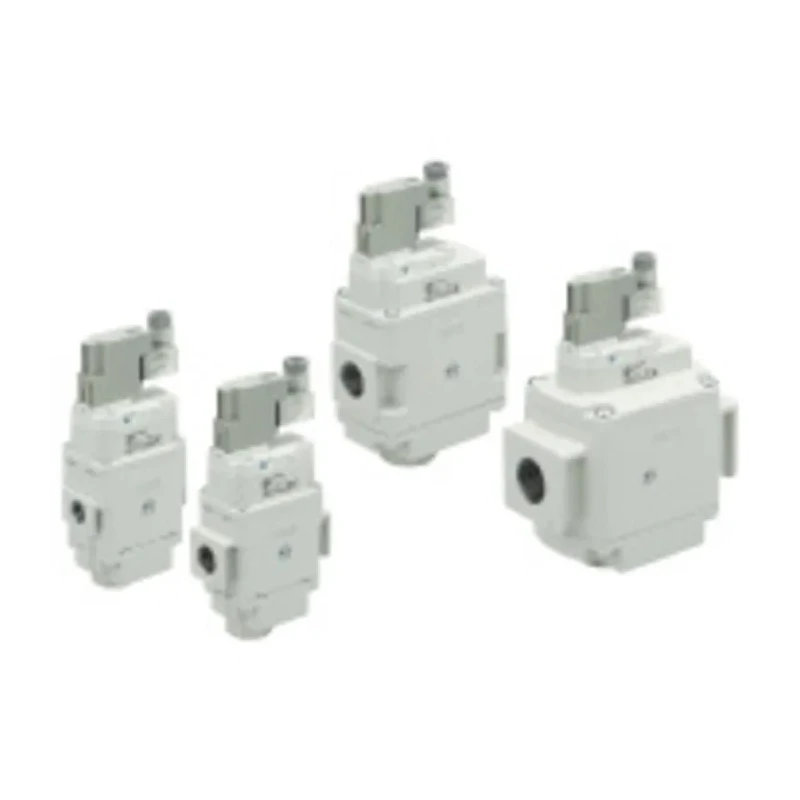

SMC Pneumatic Solenoid Start-Up Valve G Series AV 24V dc Die Cast Aluminium AV4000-F04-5YOC-A

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Start-Up Valve G Series AV 24V dc Die Cast Aluminium AV4000-F04-5YOC-A



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Power Consumption	0.35 W
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	98mm
Length	170mm
Model	AV4000-F04-5YOC-A
Width	52mm
Mount Type	Stand Alone
Series	AV
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/2 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Energy Saving	No air flow when the main valve is switched
Actuation Type	Start-Up Valve
Maximum Flow Rate	1152L/min
Standards/Approvals	CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.45W
Improved flow rate characteristics	Up to 2.3 times C[dm3/(s·bar)]: 9.2

Key Features

Start-up valve designed for gradual low speed air supply to raise initial pressure safely.
Maximum operating pressure of 1 MPa with maximum flow rate of 1152 L/min.
Body constructed from durable die cast aluminium with nitrile rubber (NBR) seals.
Compact design with dimensions 170mm length, 98mm height, and 52mm width for easy integration.
Equipped with a single solenoid and DIN electrical connector for reliable actuation.
Operates at a voltage of 24V dc consuming 0.45 W power with three valve positions.
Designed for stand-alone mounting with female threaded G port connections sized at 1/2 inch.
Wide temperature operating range from 0°C to 50°C for versatile environments.

Product Description

SMC AV4000-F04-5YOC-A pneumatically operated solenoid start-up valve is engineered for precise control of air supply in pneumatic systems. Featuring a 24V dc single solenoid actuation and constructed from die cast aluminium, this valve provides durability and reliable performance. The valve’s start-up functionality allows a gradual increase of initial pressure at low speeds, optimizing system safety and preventing shock pressures.

With a maximum operating pressure of 1 MPa and flow rate up to 1152 L/min, it is suitable for industrial, manufacturing, and fluid power applications requiring efficient air control. The integrated DIN connector and compact dimensions (170mm length, 98mm height, 52mm width) facilitate easy installation and connectivity in pneumatic setups. The nitrile rubber seals ensure effective sealing performance across operating temperature range of 0°C to 50°C.

This valve incorporates an energy-saving design with no air flow when the main valve switches, contributing to operational cost savings. Its flow rate capability is enhanced up to 2.3 times, improving responsiveness. The product supports three valve positions and includes female G-threaded ports sized 1/2 inch for versatile connection options.

Manufactured in Japan and CE certified, this valve meets stringent quality and safety standards. The stand-alone mount type and integrated silencer reduce installation complexities and work hours.

Start-up valve for safe gradual air pressure increase at low speed. Maximum operating pressure: 1 MPa, maximum flow rate: 1152 L/min. Durable die cast aluminium body with NBR seals for leak-proof operation. Compact size 170mm x 52mm x 98mm with DIN connector electrical interface.

24V dc single solenoid power consumption of 0.45 W with 3 valve positions. Energy-efficient operation with no air flow when main valve off. Wide temperature range 0°C to 50°C for varied industrial environments. Female G thread port size 1/2 inch for standard pneumatic fittings.

CE certified and manufactured in Japan assuring reliability and compliance.

This product is ideal for use across pneumatic fluid power, automation, manufacturing, HVAC, and industrial processing sectors. Browse more Pneumatic Solenoid Valves and components at EnvMart for your operational requirements.
