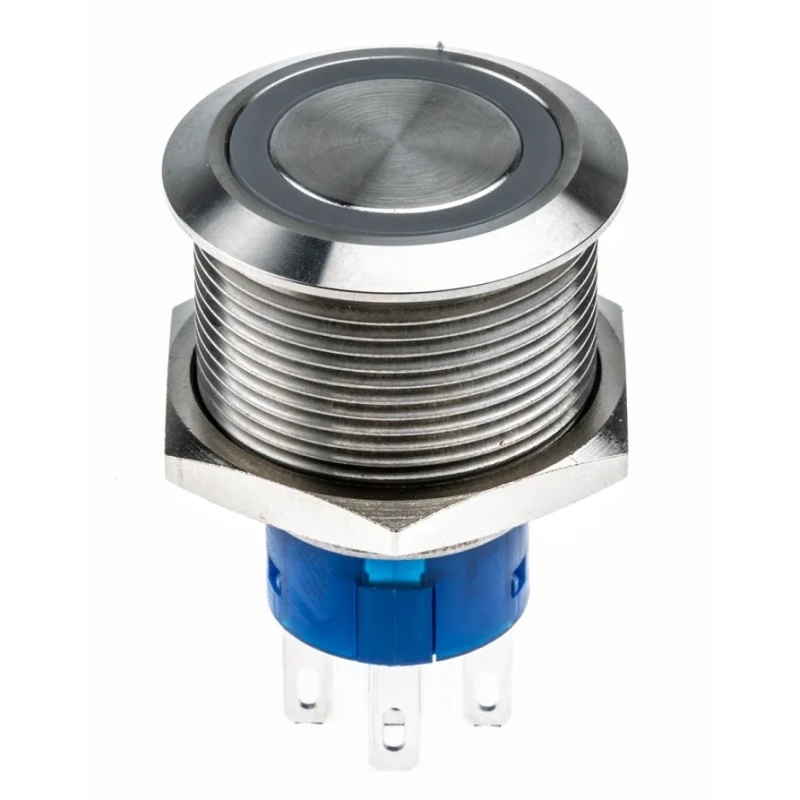

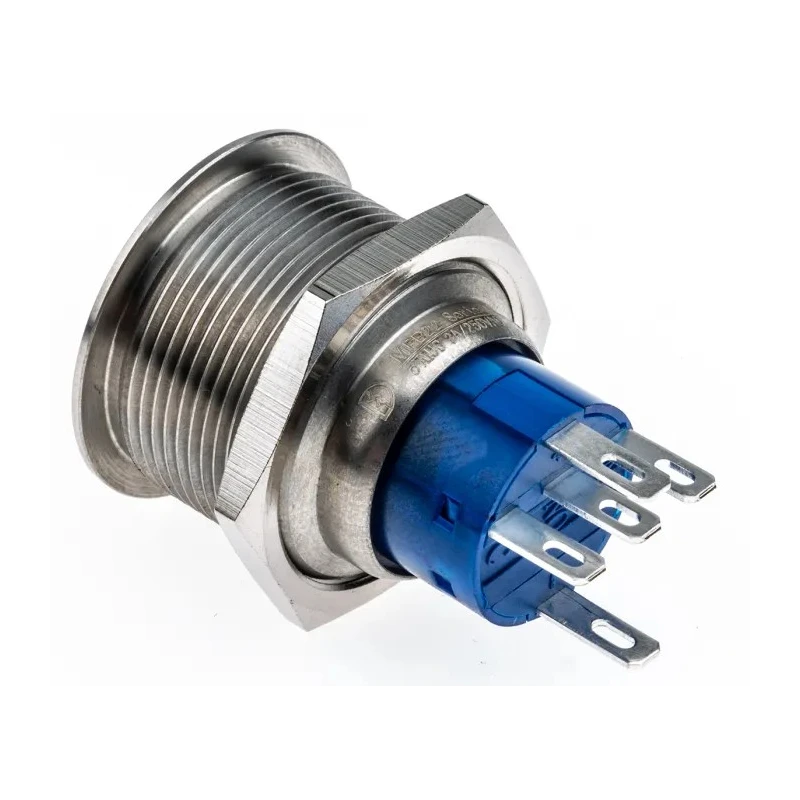

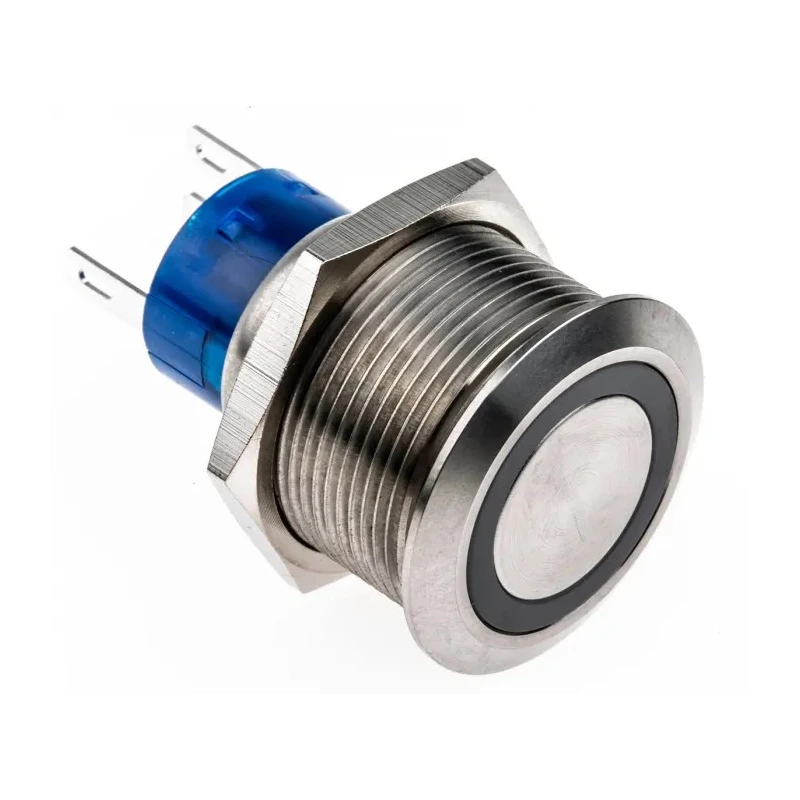

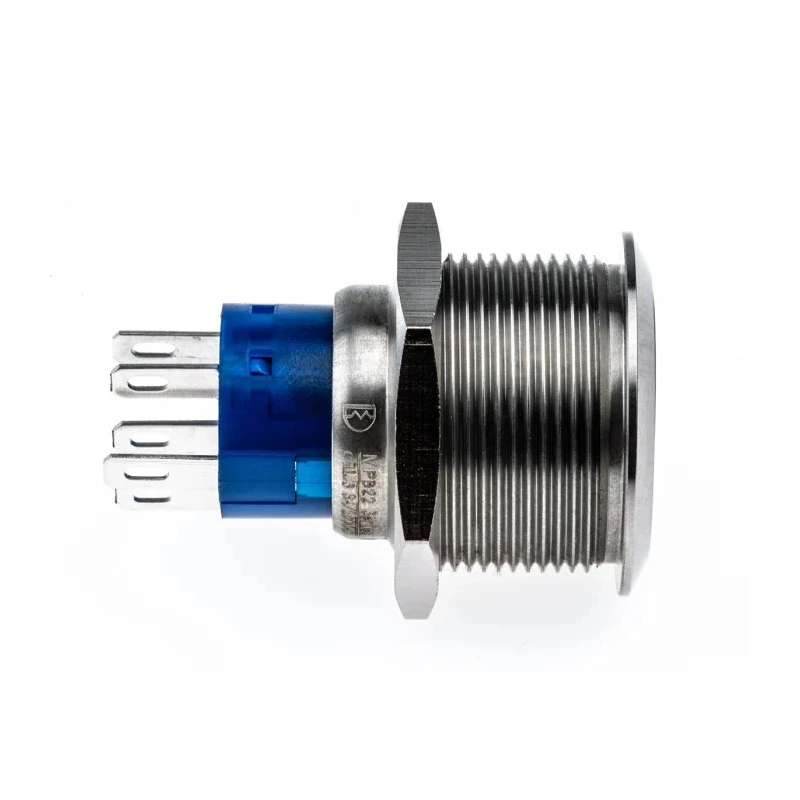

RS PRO Illuminated Push Button Switch Momentary Panel Mount SPDT Red LED IP67 250 V 250-9328 175-9328

RS PRO 175-9328 Illuminated Push Button Switch is a momentary panel-mounted switch featuring SPDT contact configuration with a red LED indicator. Designed for industrial and commercial applications, this switch is rated IP67, making it highly resistant to dust and water ingress, suitable for harsh environments.

This switch requires a panel cutout size of 22.2 mm, making it compatible with standard panel designs. The flat actuator style ensures comfortable operation, while the momentary switch operation type provides reliable transient contact control.

With dual voltage ratings of 250 V AC and 250 V DC and contact current ratings from 3 to 5 A, this switch delivers robust electrical performance. It complies with recognized international standards including cULus and various UL94 fire-resistance ratings, ensuring safety and reliability.

The RS PRO metal switch series offers features such as corrosion resistance, lightweight construction, and enhanced heat dissipation, which improve durability and longevity in industrial settings. The red illuminated LED provides intuitive status feedback, improving safety and usability in control applications.

This Push Button Switch finds applications across multiple industrial sectors including control instrumentation, medical devices, security monitoring, vehicle peripherals, audio-visual systems, and energy storage equipment, providing reliable and vandal-resistant switching.

This switch is designed for panel mounting with a 22.2 mm cutout size. Features a momentary switch operation type with a flat actuator style for easy pressing. Illuminated with a red LED to provide clear status indication.

Rated IP67 for dust tightness and protection against immersion in water. Supports AC and DC voltages up to 250 V and contact current ratings of 3 to 5 A. Suitable for operating temperatures ranging from -20°C to 70°C. Complies with multiple standards including cULus, EC18, EN18, UL 94 V-0, and UL 94 V-2.

Constructed with corrosion-resistant materials, offering lightweight and heat dissipation benefits. Ideal for industrial control instruments, medical equipment, security monitoring, vehicle peripherals, audio-visual, and energy storage applications.
