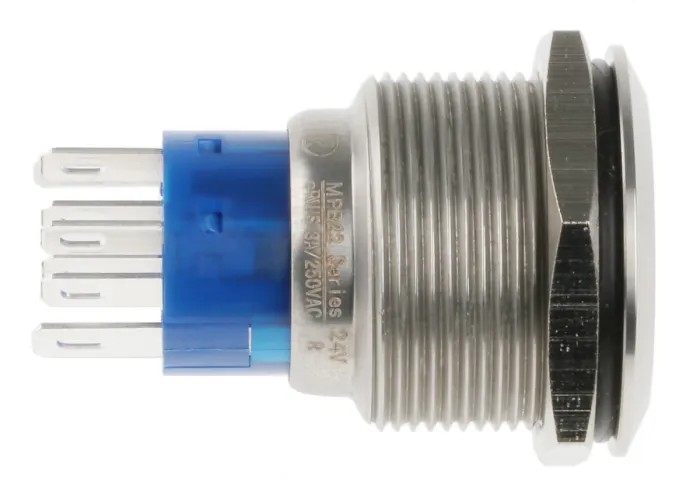

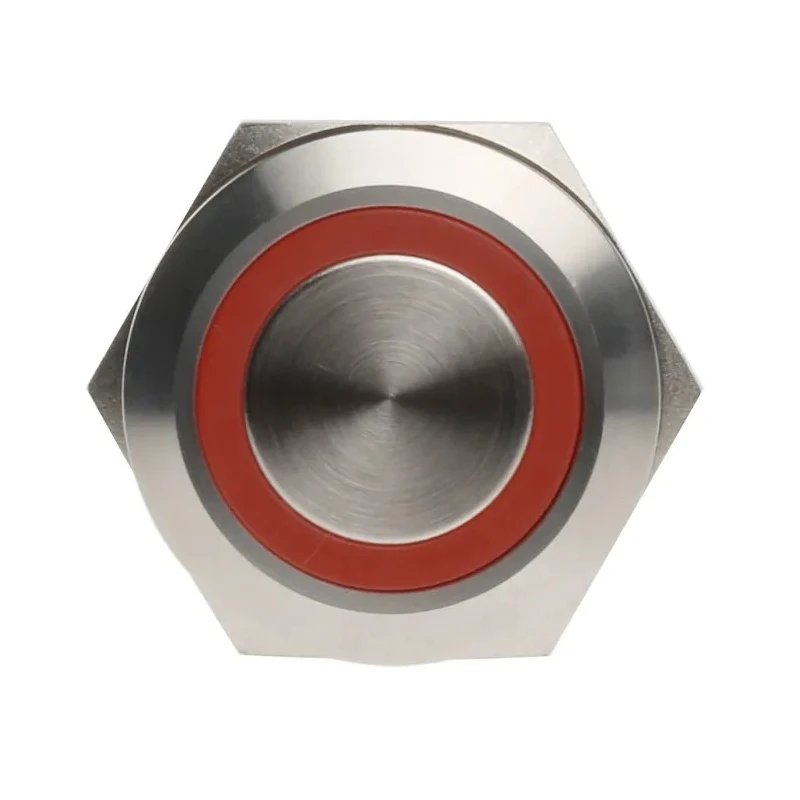

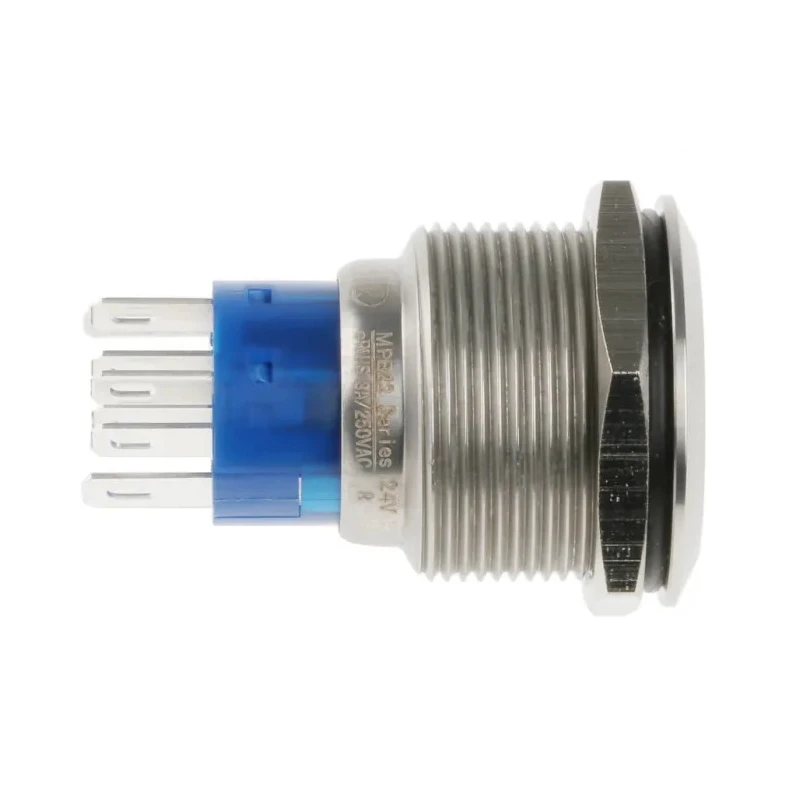

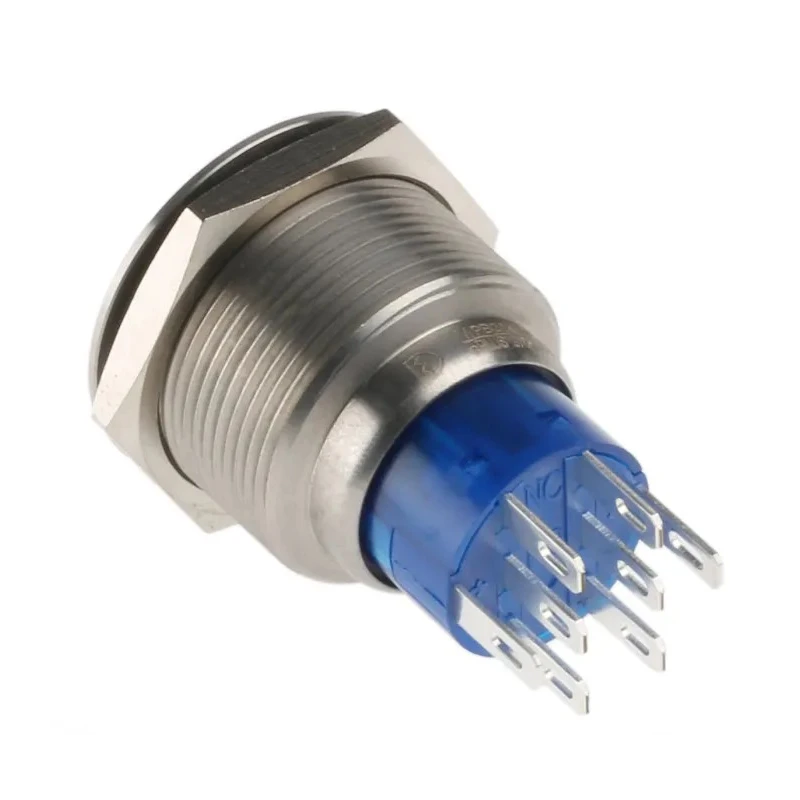

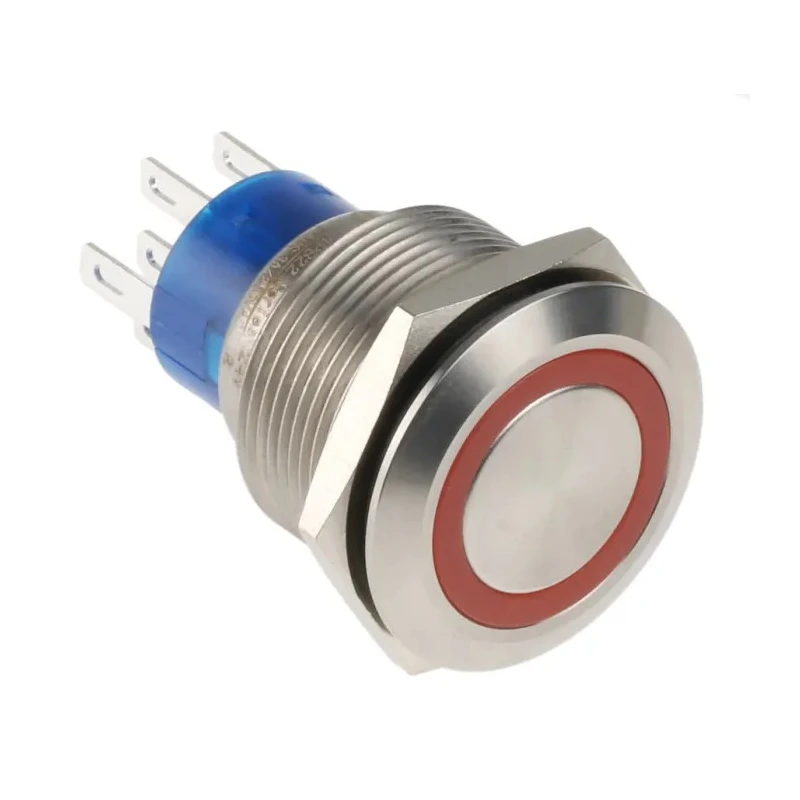

RS PRO Illuminated Momentary Push Button Switch Panel Mount DPDT Red LED IP67 250 V 175-9284
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 175-9284 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | cULus Recognized, EC18, EN18, UL 94 V-0, UL 94 V-2 |
| LED Colour | Red |
| Switch Operation | Momentary |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 3, 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch has a 22.2 mm panel cutout size for easy installation.
- Momentary switch operation ensures temporary circuit connection when pressed.
- IP67 rated for protection against dust and water ingress.
- Supports 250 V AC/DC voltage and contact current ratings of 3 and 5 A.
- Flat actuator style provides a sleek user interface.
- Red LED illumination enhances visibility and status indication.
- Operating temperature range from -20°C to 70°C.
- Complies with standards including cULus Recognized, EC18, EN18, and UL 94 V-0/V-2.
Product Description
RS PRO 175-9284 Illuminated Momentary Push Button Switch is designed for robust industrial and commercial applications requiring reliable momentary switching with illumination. This switch features a DPDT (Double Pole Double Throw) contact configuration and a 22.2 mm panel cutout size for versatile panel mounting.
Constructed with a flat actuator and a red LED for clear status indication, it offers an IP67 rating ensuring excellent resistance to dust and water, making it suitable for use in harsh environments. The switch supports contact voltages of up to 250 V AC and DC with current ratings of 3 A and 5 A, covering a broad range of control circuit requirements.
With a wide operational temperature range from -20°C to 70°C, this push button switch is ideal for industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual equipment, and energy storage equipment. It meets several international standards and approvals including cULus Recognized, EC18, EN18, and UL 94 V-0 and V-2 fire safety ratings.
The switch has a 22.2 mm panel cutout size for easy installation. Momentary operation provides temporary input when actuated. IP67 rated housing for dust-tight and water immersion protection. Red LED illumination enhances operational visibility.
Contact voltage rating of 250 V AC/DC and current rating of 3 to 5 A. Flat actuator style ensures ergonomic user interface. Wide temperature tolerance ranging from -20°C to 70°C. Certified to international safety and performance standards.
This RS PRO push button switch delivers reliable performance for automation and control panel assemblies in demanding industrial and commercial environments. Explore the full range of Push Button Switches and electrical components on EnvMart for industrial and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a panel cutout size of 22.2 mm, allowing for easy installation in various applications.
It has an IP67 rating, providing excellent protection against dust and water ingress, suitable for harsh environments.
This switch supports contact voltages of up to 250 V AC and DC, making it versatile for different electrical applications.
The contact current ratings for this model are 3 A and 5 A, accommodating a range of control circuit requirements.
The operating temperature range is from -20°C to 70°C, allowing it to function effectively in various conditions.
It features a momentary switch operation, which provides a temporary circuit connection when pressed.
This switch complies with several standards including cULus Recognized, EC18, EN18, and UL 94 V-0 and V-2.
It has a flat actuator style, which provides a sleek and ergonomic user interface.
The switch uses solder type terminals for secure electrical connections.
This model is suitable for industrial control instruments, medical equipment, security monitoring systems, and audio-visual equipment.
The switch features a red LED illumination, enhancing visibility and status indication during operation.
It has a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile control options.
