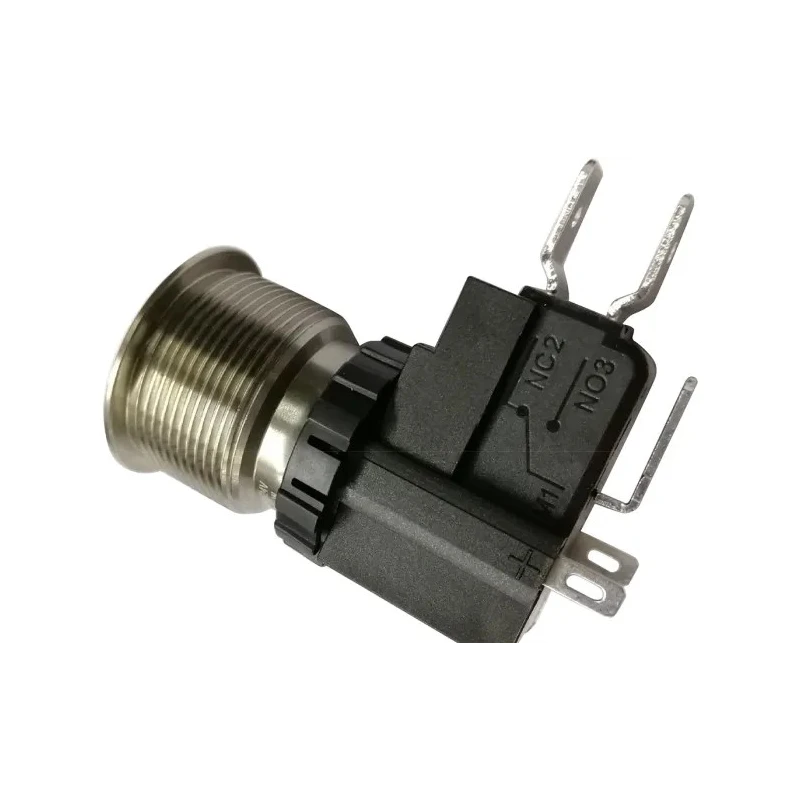

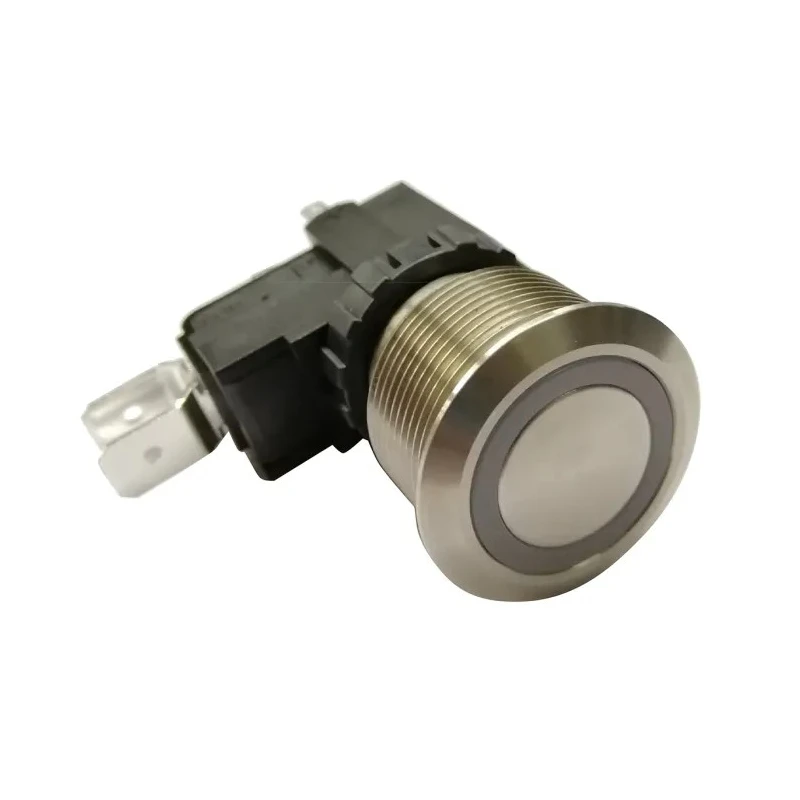

RS PRO Illuminated Push Button Switch Latching Panel Mount 22.2 mm Cutout SPDT White LED IP67 250 V AC 175-8207
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 175-8207 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | cULus Recognized, EC15, EN15, UL 94 V-0, UL 94 V-2 |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Style | Flat |
| Switch Contact Current | 16, 26A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch provides reliable latching operation suitable for panel mounting.
- It includes a white LED illumination for clear status indication.
- Designed with quick connect terminals for efficient installation.
- Constructed to meet IP67 standards for protection against dust and water ingress.
- Operates within a wide temperature range from -25°C to 85°C.
- Supports contact AC voltage up to 250 V with current ratings of 16 A and 26 A.
- Complies with multiple standards including cULus Recognized, EC15, EN15, UL 94 V-0, and UL 94 V-2.
- The flat actuator style enhances ease of use in industrial applications.
Product Description
RS PRO 175-8207 Illuminated Push Button Switch is a high-quality latching push button designed for panel mounting applications. It features a 22.2 mm cutout and a single-pole double-throw (SPDT) contact configuration, enabling versatile circuit control. The switch is illuminated with a white LED indicator to provide clear operational feedback in various lighting conditions. Rated to IP67, it offers excellent protection against dust and water, making it suitable for demanding industrial and commercial environments.
Operating temperature range from -25°C to 85°C ensures reliable performance across diverse climates and operating scenarios. The switch supports AC voltage up to 250 V and contact current ratings of 16 A and 26 A, capable of handling high current requirements with durability and safety. Its flat actuator style provides ergonomic interaction for operators.
The switch is constructed according to rigorous standards including cULus Recognized, EC15, EN15, UL 94 V-0, and UL 94 V-2, guaranteeing compliance with safety and quality benchmarks. Quick connect terminals simplify installation and maintenance, while the modular design allows for easy replacement of the micro-switch and bushing components, streamlining servicing and reducing downtime.
Ideal for industrial control instruments, medical devices, security systems, vehicle peripherals, audio-visual equipment, and energy storage solutions. The robust build and impressive protection rating make it a reliable choice for automated and manual control applications under harsh environmental conditions.
Set contains 1 Pc RS PRO Illuminated Push Button Switch, model 175-8207. Explore more high-quality Push Button Switches and components at EnvMart's Electronics & Electricals category to find the right fit for your technical requirements.
The switch provides reliable latching operation suitable for panel mounting. It includes a white LED illumination for clear status indication. Designed with quick connect terminals for efficient installation. Constructed to meet IP67 standards for protection against dust and water ingress.
Operates within a wide temperature range from -25°C to 85°C. Supports contact AC voltage up to 250 V with current ratings of 16 A and 26 A. Complies with multiple standards including cULus Recognized, EC15, EN15, UL 94 V-0, and UL 94 V-2.
The flat actuator style enhances ease of use in industrial applications.
EnvMart provides a comprehensive selection of industrial electrical components including switches, LEDs, and control devices to support various engineering and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole double-throw (SPDT) contact configuration, enabling versatile circuit control.
It can operate at a maximum temperature of 85°C, making it suitable for various environmental conditions.
This model has an IP67 rating, providing excellent protection against dust and water ingress.
The required panel cutout size for this switch is 22.2 mm.
It supports contact current ratings of 16 A and 26 A, allowing it to handle high current applications.
The switch is designed with quick connect terminals for efficient installation and maintenance.
The minimum operating temperature is -25°C, ensuring reliable performance in colder environments.
It complies with multiple standards including cULus Recognized, EC15, EN15, UL 94 V-0, and UL 94 V-2.
The switch features a white LED for clear status indication in various lighting conditions.
This model has a flat actuator style, enhancing ease of use in industrial applications.
It supports contact AC voltage up to 250 V, making it suitable for various electrical applications.
It is ideal for use in industrial control instruments, medical devices, security systems, and audio-visual equipment.
