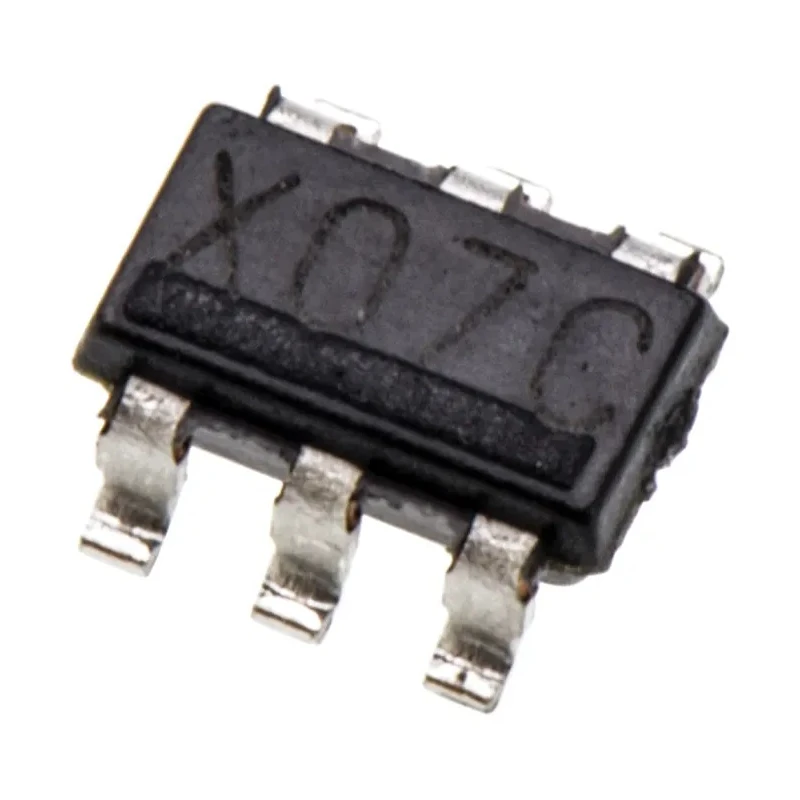

Texas Instruments Schmitt Trigger Inverter Logic IC SN74LVC2G17DBVR Surface Mount 6-Pin SOT-23 1.65-5.5V

Texas Instruments SN74LVC2G17DBVR is a high-quality Schmitt Trigger Inverter logic IC designed to provide clean and reliable switching in electronic circuit applications. It features a Schmitt trigger input that improves noise immunity, ensuring precise signal processing in various industrial, laboratory, and consumer electronics environments.

The device operates efficiently with a minimum supply voltage of 1.65 volts up to a maximum of 5.5 volts, making it versatile for low-voltage digital systems. Featuring a maximum propagation delay time of 9.8 nanoseconds at capacitive load, the IC supports swift signal transitions for responsive circuit behavior.

Housed in a compact 6-pin SOT-23 surface mount package, this inverter is suitable for high-density PCB designs. It comes with one inverter element integrated into the chip, aligned with the LVC logic family specifications for low-voltage CMOS applications.

The device operates reliably across a broad temperature range from -40 to 125 degrees Celsius, suitable for automotive and industrial use cases where temperature extremes are common. It complies with RoHS standards, ensuring environmentally responsible manufacturing and usage.

The Schmitt Trigger input capability significantly reduces output signal flicker from noisy or slowly changing input signals, enhancing circuit stability. The maximum high-level output current is -4 milliamps, and the maximum low-level output current is 32 milliamps, allowing strong drive capability for typical logic loads.

Operates reliably with supply voltages from 1.65V to 5.5V. Compact SOT-23 6-pin surface mount package. Single inverter logic function with Schmitt trigger input for noise immunity. Wide operating temperature range from -40°C to 125°C.

Maximum propagation delay time of 9.8 nanoseconds for high-speed switching. RoHS compliant for environmentally friendly applications. Logic family: LVC low voltage CMOS technology. Suitable for a variety of industrial, laboratory, and electronic manufacturing uses.

Set contains 1 Pc Texas Instruments SN74LVC2G17DBVR Schmitt Trigger Inverter IC.
