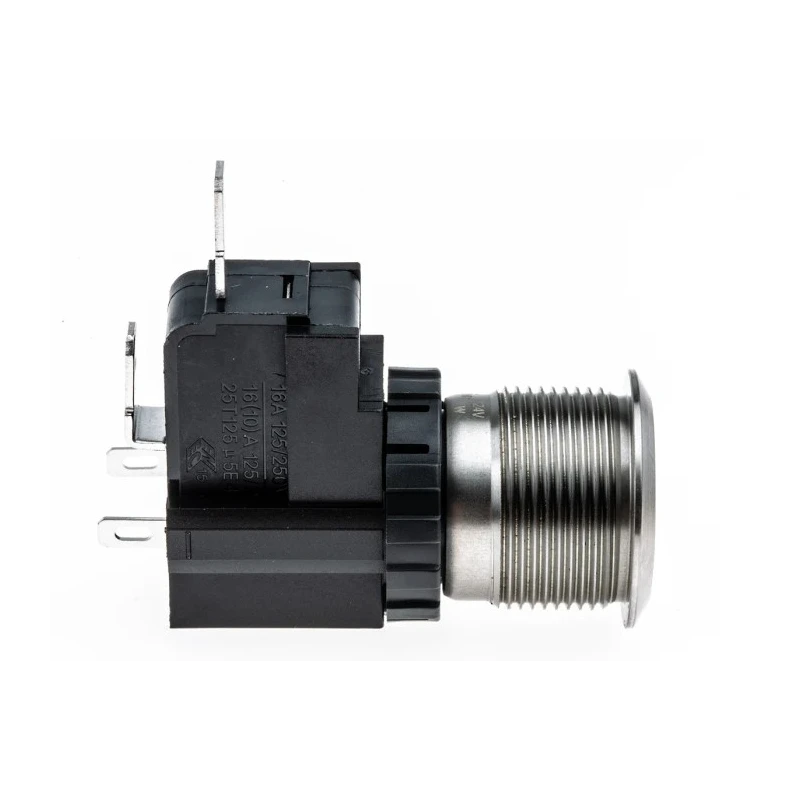

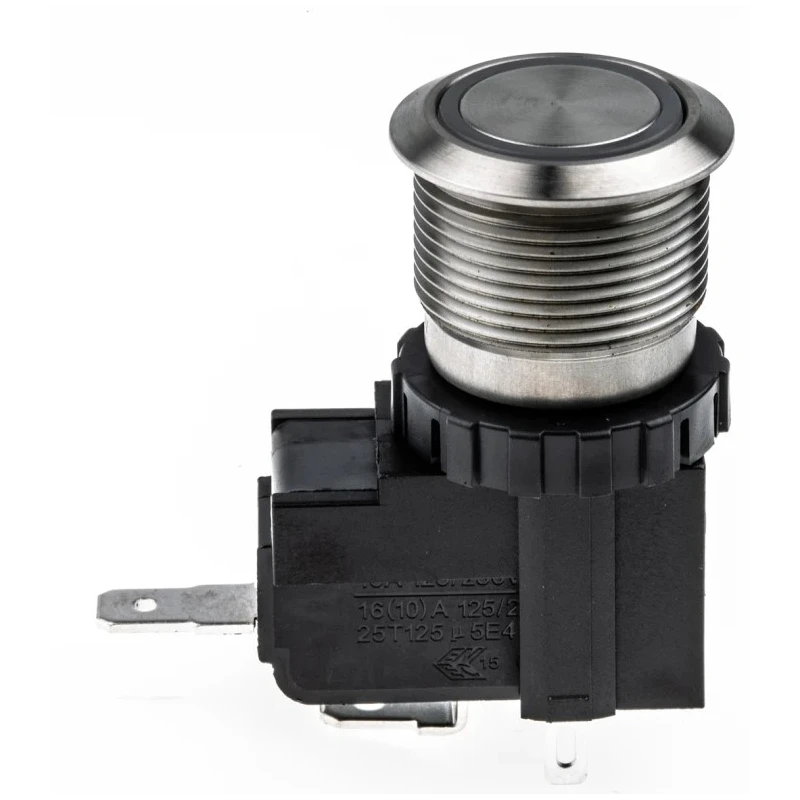

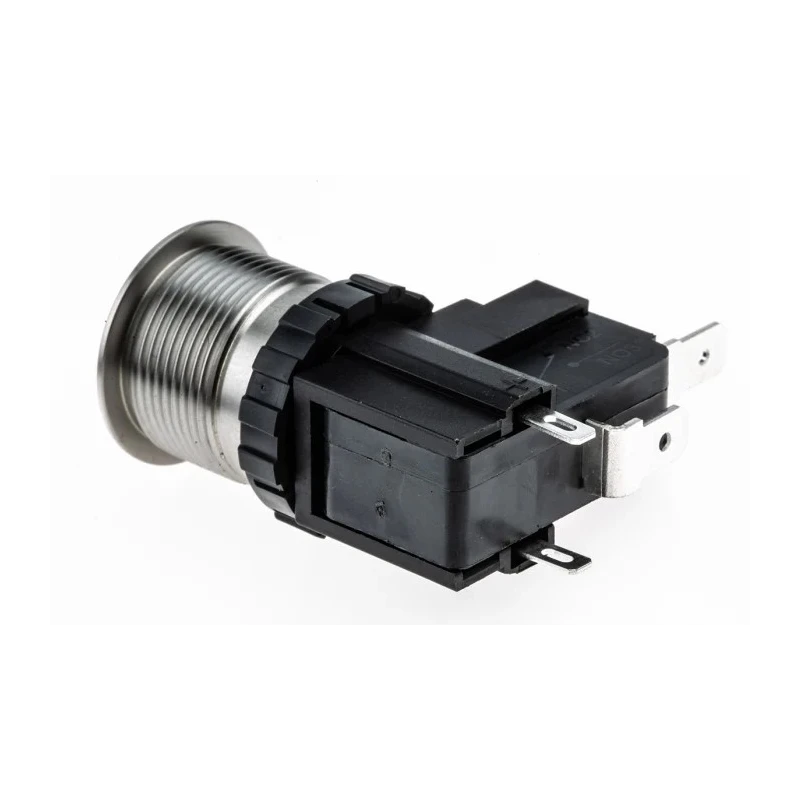

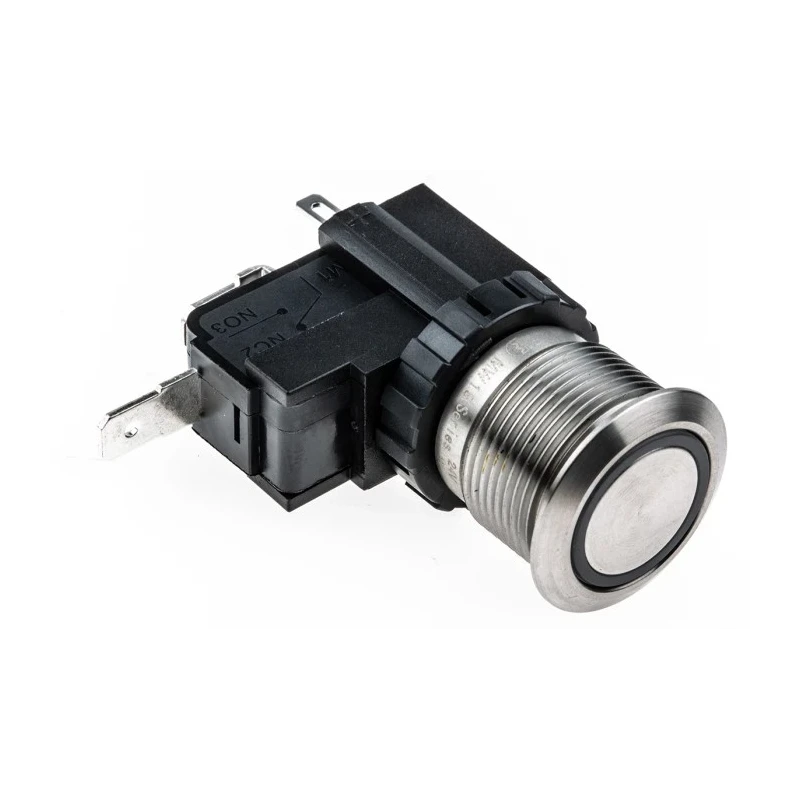

RS PRO Illuminated Latching Push Button Switch, Panel Mount, 19.1 mm Cutout, SPST Contact, White LED, IP67 250 V ac 175-8024

RS PRO 175-8024 Illuminated Latching Push Button Switch is designed for industrial, medical, security, and audio-visual equipment applications requiring reliable manual control inputs.

The switch is panel mounted with a precise 19.1 mm cutout, featuring a latching mechanism that maintains its on or off state until actuated again. The SPST contact arrangement offers straightforward switching capabilities. The white LED provides clear visual indication of switch status, enhancing usability in low-light or complex environments.

With an IP67 ingress protection rating, the switch is highly resistant to dust and water ingress, making it suitable for demanding conditions. It operates across a wide temperature range from -25°C to 85°C, offering stable performance in both cold and hot climates. The quick connect terminals facilitate rapid installation and maintenance, while the flat actuator style ensures ergonomic operation.

Constructed with high-grade materials and meeting rigorous standards such as cULus recognition, EC18, EN18, and flame retardant ratings UL 94 V-0 and V-2, this push button switch guarantees durability and safety compliance. It supports high current loads with a contact rating of 16 and 26 amps at 250 volts AC, ideal for controlling power in industrial systems.

Typical applications include industrial control instruments, medical equipment, security monitoring devices, vehicle peripherals, audio-visual equipment, and energy storage systems. The replaceable micro-switch and bushing components simplify maintenance and extend service life.

Features a latching switch operation for secure on/off control. Equipped with a white LED illumination for clear status indication. Suitable for panels with a 19.1 mm cutout size. Single Pole Single Throw (SPST) contact configuration provides simple switching.

Designed with quick connect terminal type for easy wiring. Flat actuator style for streamlined user interaction. High ingress protection rating of IP67 ensures dust and water resistance. Operates reliably between -25°C to 85°C for diverse environments.

Rated for 250 V AC with 16 and 26A contact current capacity. Complies with multiple standards including cULus, EC18, EN18, and UL 94 V-0/V-2. Explore more high-quality Push Button Switches and electrical components to suit your industrial and commercial needs at EnvMart.
