BK Precision Digital Bench Power Supply 320W 20A Max 1-Output 42V BK9103
Specifications
| Country of Origin | China |
|---|---|
| Brand | BK Precision |
| Power | 320W |
| Model | BK9103 |
| Output type | Digital |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Plug Type | IEC 320 |
| Interfaces | USB Interface |
| Number of outputs | 1 |
| Maximum Output Current | 20A |
| Maximum Output Voltage | 42V |
| Maximum Supply Voltage | 220V ac |
| Minimum Supply Voltage | 110V ac |
| Digital/Analogue | Digital |
| Supported Number of Displays | 2 |
Key Features
- Multi-range power supply automatically recalculates voltage and current limits for each setting.
- Automatic CV/CC crossover operation for voltage and current regulation.
- Remote sense feature compensates voltage drop at load.
- User-configurable presets for voltage and current settings.
- Transient mode supports waveform generation for advanced testing.
- USB interface and PC software enable remote control and programming.
- Analog remote control functionality included.
- Output on/off switch and control panel lock for operational safety.
Product Description

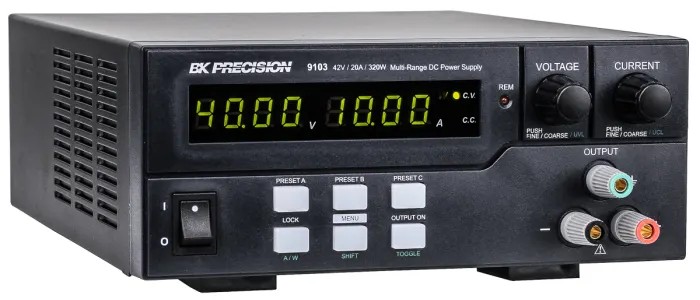

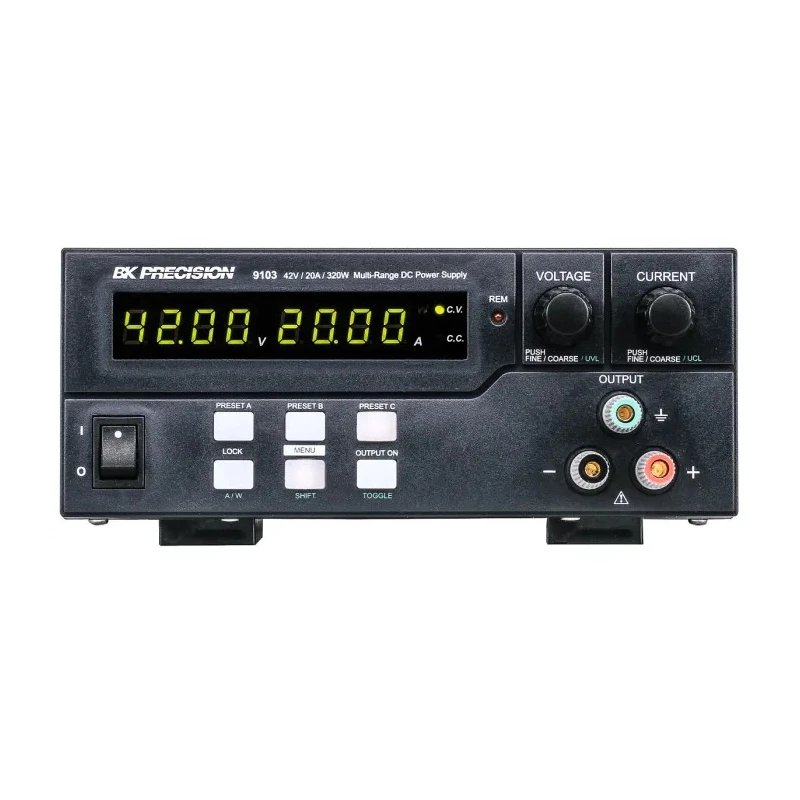

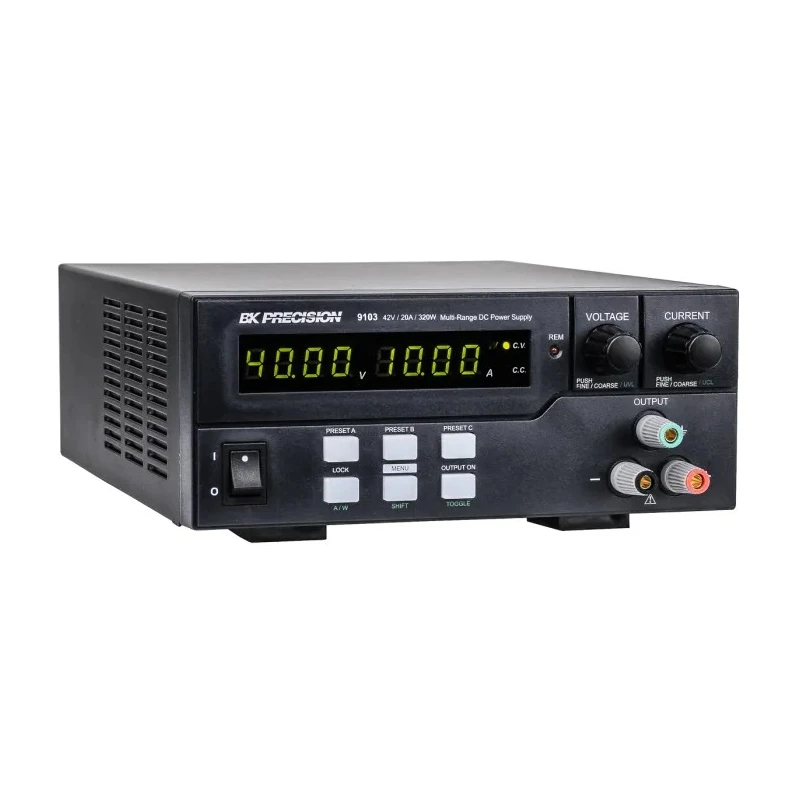

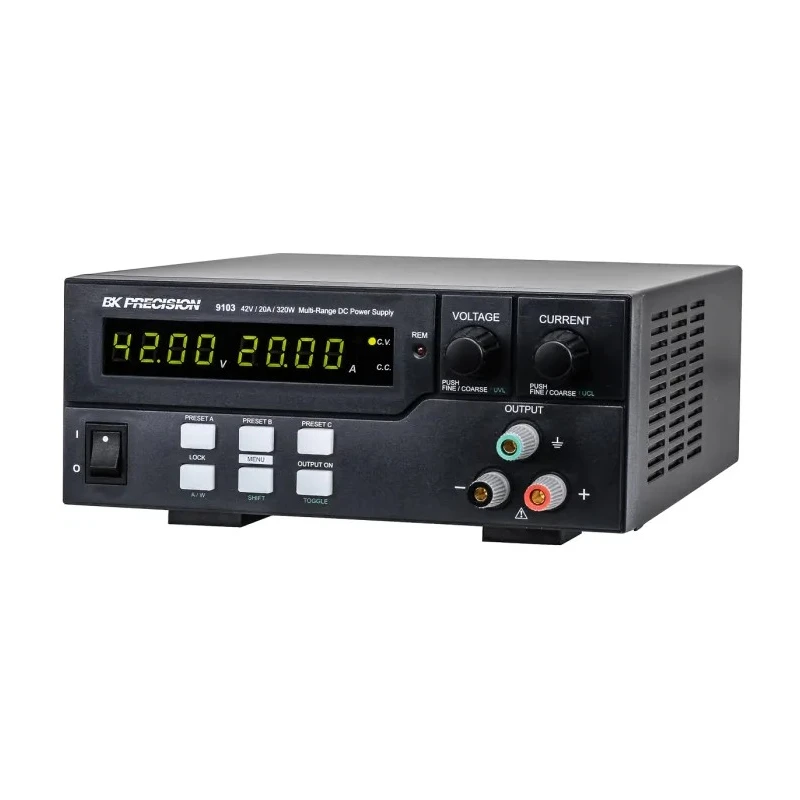

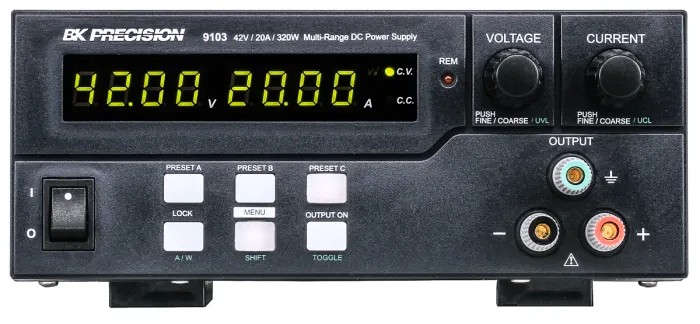

BK Precision BK9103 is a digital bench power supply providing a single output with a maximum voltage of 42V, maximum current of 20A, and power rating of 320W. Designed for precision power delivery, it supports digital output control with multiple advanced features ideal for test and measurement applications in industrial, laboratory, manufacturing, and repair settings.
This multi-range power supply automatically recalculates voltage and current limits across all operating points, allowing users to utilize the full 320W output power seamlessly within rated voltage and current parameters. The unit features an automatic constant voltage/constant current (CV/CC) crossover function to maintain stable output regulation.

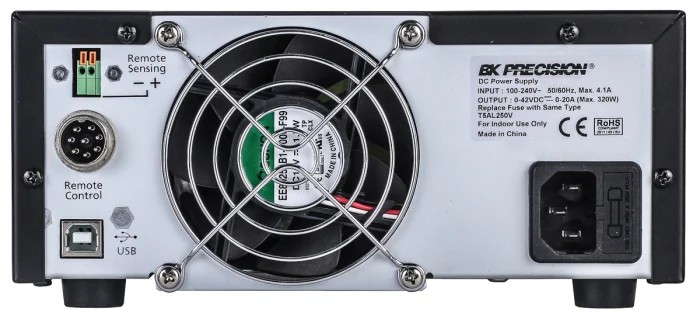

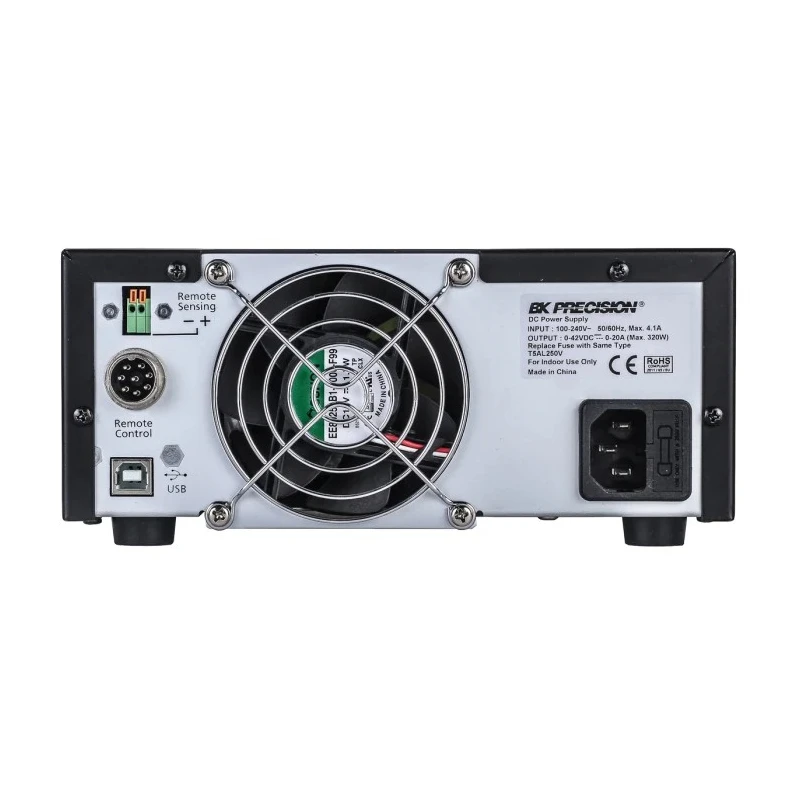

The BK9103 includes remote sense capability to compensate for voltage drops at the load, ensuring accurate voltage delivery. Users can save and quickly recall up to three voltage/current presets, facilitating faster setup for recurring tests.
Additional features include a transient mode enabling waveform generation such as square, triangular, or trapezium waves, which adds versatility to testing scenarios. Communication is facilitated via USB interface and optional PC software, which allows remote control and timed programming for automated testing environments. Analog remote control functions provide supplementary control flexibility.
Safety is prioritized through output on/off switches and control panel lock features to prevent accidental operation. Built-in overvoltage and overcurrent protection safeguard both the power supply and connected devices.
Its robust design and digital interface make it suitable for use in industrial testing, laboratory research, manufacturing quality control, and educational applications where precise and reliable DC power is required.
Multi-range power supply automatically recalculates voltage and current limits for each setting. Automatic CV/CC crossover operation for voltage and current regulation. Remote sense feature compensates voltage drop at load.
User-configurable presets for voltage and current settings. Transient mode supports waveform generation for advanced testing. USB interface and PC software enable remote control and programming. Analog remote control functionality included.
Output on/off switch and control panel lock for operational safety. Overvoltage and overcurrent protection safeguard equipment. Ideal for industrial, laboratory, manufacturing, and testing applications. Explore more precision test equipment and Bench Power Supplies on EnvMart to support your industrial and laboratory power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 42V.
It has a maximum output current of 20A.
The power rating is 320W.
This unit provides a digital output.
The minimum operating temperature is 0°C, and the maximum is 40°C.
It features a USB interface for remote control and programming.
This model has a single output.
It includes output on/off switches and a control panel lock for operational safety.
Yes, it includes a remote sense feature that compensates for voltage drops at the load.
The transient mode supports waveform generation such as square, triangular, or trapezium waves.
The supply voltage range is from 110V AC to 220V AC.
It is suitable for industrial testing, laboratory research, manufacturing quality control, and educational applications.
