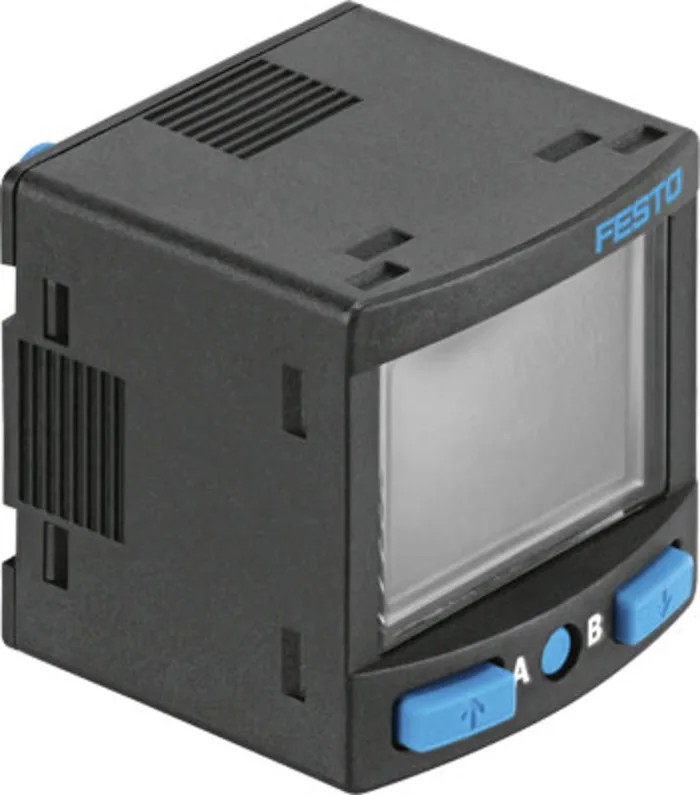

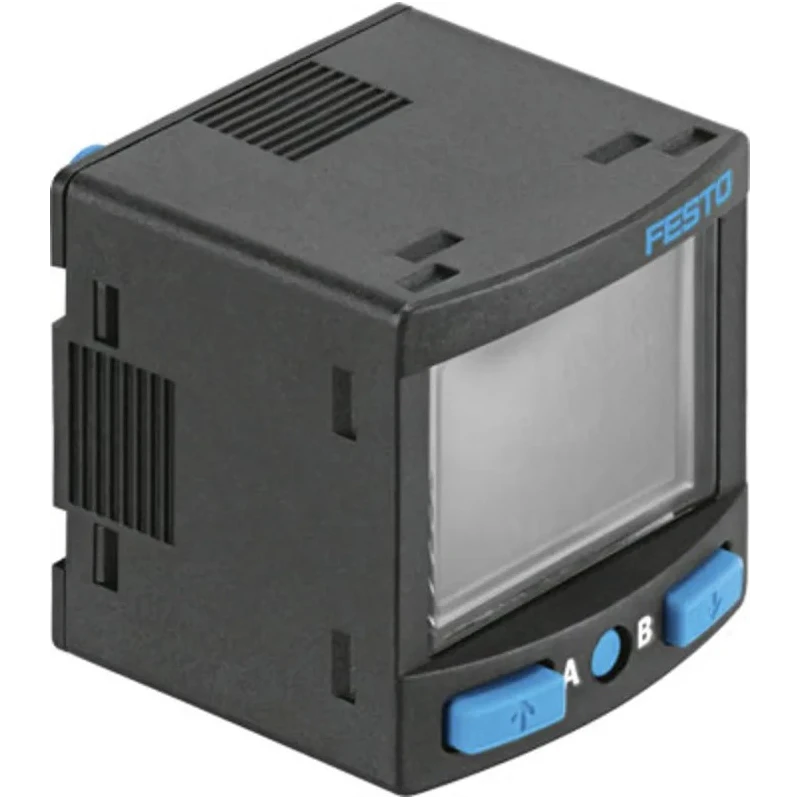

Festo Pneumatic Pressure Sensor IP40 1 Bar 30V DC Max 50°C
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Voltage | 30V dc |
| Brand | Festo |
| Maximum Operating Pressure | 1 bar |
| Model | IP40 |
| IP Rating | IP40 |
| Mount Type | Surface, Threaded |
| Maximum Operating Temperature | 50°C |
| Pressure Type | Differential Pressure, Relative |
| Switch output | NPN (2 Output), PNP |
| Port Size | Diameters From 3 mm to M30 mm |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Connection Thread Standard | NPT, R (PT), GPT |
| Minimum Operating Pressure | -1bar |
| Suitable Medias | Air |
| Festo Pressure Sensor, IP40 1 bar 30V dc 50 °CBrand | Festo |
Key Features
- Compact design suitable for industrial compressed air applications.
- Pressure measurement via piezoresistive relative pressure technology.
- Operates at 30V DC with maximum temperature of 50°C and minimum temperature of 0°C.
- Switch outputs include NPN (2 outputs) and PNP options for versatile interfacing.
- Compatible with NPT, R (PT), and GPT connection thread standards and port sizes from 3 mm to M30 mm.
- Features digital 2-line display for clear pressure readings.
- Supports network pressure monitoring and regulator setpoint monitoring.
- Includes ECO function with option to disable display to save energy.
Product Description
Festo SPAN-B2R-Q4-PN-PN-L1 pneumatic pressure sensor is engineered for precise monitoring of compressed air and non-corrosive gases. Featuring an IP40 ingress protection, this sensor withstands environmental exposure to provide reliable differential and relative pressure measurements up to 1 bar.
Powered by a 30V DC supply, it operates effectively within a temperature range of 0°C to 50°C. The sensor utilizes a piezoresistive measuring cell to translate physical pressure into electrical signals, available as analogue outputs, switching signals, or IO-Link communication based on variant selection.
Designed with industrial and laboratory applications in mind, the sensor's compact design fits various mounting configurations including surface and threaded mounts. Connection compatibility includes standard NPT, R (PT), and GPT threads with port diameters ranging from 3 mm up to M30 mm, ensuring versatile integration.
Key functionalities include network pressure presence detection, regulator pressure range monitoring, vacuum detection, leak rate testing via pressure drop over time, and object detection through back pressure sensing. The ECO mode allows display switch-off for power saving, and a customizable 4-digit security code enhances operational safety.
The integrated digital 2-line display provides real-time pressure values clearly, and the adjustable low-pass filter smooths output signals to reduce noise. The sensor also offers min/max value memory for compressed air monitoring and supports serial communication protocols via IO-Link 1.1 for seamless industrial automation integration.
Compact and robust design ideal for industrial pneumatic monitoring. Multi-functional switching and analogue output options. Wide temperature and pressure operating ranges ensure reliability. Multiple mounting and connection thread standards supported.
Energy-efficient ECO function with optional display disable. Security code protection available for operation control. Advanced IO-Link 1.1 communication interface integration. Min/max value memory for precise compressed air monitoring.
Adjustable low-pass filter for pressure signal smoothing. Clear 2-line digital display enhances user interface.
This Festo pressure sensor is suited for applications in industrial, manufacturing, HVAC, pneumatic systems, and laboratory environments where accurate air pressure measurement is crucial. Its design supports demanding environments, making it a reliable component for flow control, leak detection, and pressure monitoring tasks.
Explore more pneumatic and Pressure Sensor products from EnvMart for tailored industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 1 bar.
It operates effectively within a temperature range of 0°C to 50°C.
This model measures differential pressure and relative pressure.
It requires a power supply of 30V DC to operate.
It is compatible with NPT, R (PT), and GPT connection thread standards.
This sensor can be mounted using surface or threaded configurations.
Yes, it includes NPN (2 outputs) and PNP options for versatile interfacing.
It features a digital 2-line display for clear pressure readings.
The minimum operating pressure is -1 bar.
It is suitable for measuring air and non-corrosive gases.
This model complies with RoHS standards.
It includes an ECO function for energy saving, a customizable security code, and min/max value memory for monitoring.
