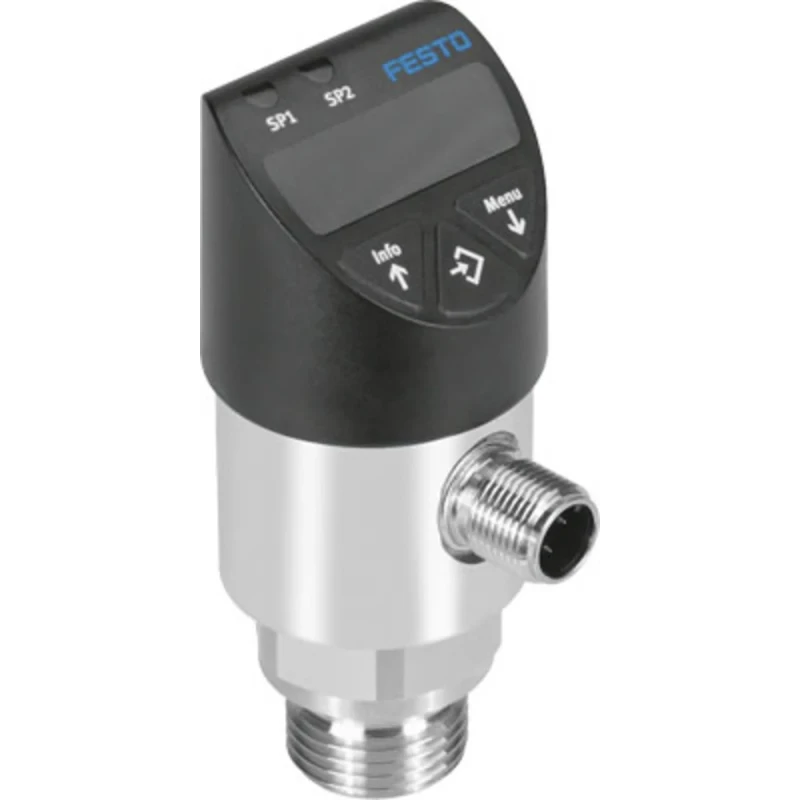

Festo Pressure Sensor, IP67, IP65, 1 bar Max Pressure, 35V DC, 80°C Operating Temperature SPAW-B2R-G12M-2P-M12
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 35V dc |
| Brand | Festo |
| Maximum Operating Pressure | 1 bar |
| Model | SPAW-B2R-G12M-2P-M12 |
| IP Rating | IP67, IP65 |
| Mount Type | Screw |
| Maximum Operating Temperature | 80°C |
| Pressure Type | Relative Pressure, Vacuum, Differential |
| Switch output | PNP |
| Port Size | G 1/2 |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Connection Thread Standard | R (PT), NPT, GPT |
| Minimum Operating Pressure | -1bar |
| Suitable Medias | Air, Gas, Liquid |
Key Features
- Operates at 35V DC supply voltage for reliable performance.
- Features IP67 and IP65 ratings ensuring protection against dust and water ingress.
- Designed for temperatures ranging from 0°C to 80°C for diverse industrial environments.
- Equipped with a G1/2 pneumatic connection using internal thread for secure mounting.
- Incorporates a switchable element with normally open or normally closed contacts and 2 PNP outputs.
- 4-digit, 320° rotatable LED digital display for easy pressure monitoring.
- Made in Germany with RoHS compliance and high accuracy of ±1% FS.
- Ideal for high pressure pneumatic systems and liquid media pressure monitoring.
Product Description
Festo SPAW-B2R-G12M-2P-M12 Pressure Sensor is a robust industrial sensor designed to accurately measure media pressures in air, gas, and liquid applications. It is equipped with a piezoresistive stainless steel measuring cell ensuring precise sensing within a range of -1 bar to 1 bar. Operating on a 35V DC power supply, it suits demanding industrial use cases requiring reliable pressure detection.
The sensor features IP67 and IP65 ingress protection ratings, providing excellent resistance against dust and water, making it suitable for harsh industrial environments. It can operate effectively over a temperature range from 0°C to 80°C, ensuring versatility in varied conditions.
The device includes a G1/2 top pneumatic connection with internal threading facilitating straightforward installation. The switchable element function supports normally open or normally closed contacts with two PNP switching outputs, allowing flexible control options.
The integrated 4-digit LED display can be rotated up to 320°, providing clear digital pressure readings. This sensor offers an accuracy of ±1% full scale, guaranteeing precise measurements vital for quality control and safety.
Manufactured in Germany, the sensor complies with RoHS standards and is well-suited for applications such as high pressure pneumatic systems and pressure monitoring of liquid media in industrial, laboratory, and manufacturing contexts.
Operates on 35V DC supply voltage. IP67 and IP65 rated for dust and water protection. Operating temperature range of 0°C to 80°C. Pressure measurement range from -1 bar to 1 bar. Switch output with 2 PNP contacts. G1/2 pneumatic connection with internal thread.
Precision accuracy of ±1% FS. Rotatable 4-digit LED display for pressure indication. Compliant with RoHS regulations and manufactured in Germany.
This Festo Pressure Sensor is an ideal solution for industrial pneumatic systems, water treatment monitoring, and fluid power applications requiring reliable and accurate pressure sensing. Explore more industrial sensors and pneumatic tools at EnvMart to suit your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pressure sensor is 1 bar.
It operates effectively within a temperature range of 0°C to 80°C.
It features a G1/2 pneumatic connection with internal threading for secure mounting.
This model has an accuracy of ±1% full scale.
It is suitable for measuring air, gas, and liquid media.
It operates on a 35V DC power supply.
The sensor has IP67 and IP65 ratings, ensuring protection against dust and water ingress.
Yes, it includes a 4-digit LED display that can be rotated up to 320° for easy pressure monitoring.
It incorporates a switchable element with normally open or normally closed contacts and two PNP outputs.
Yes, it is compliant with RoHS regulations.
The mounting method for this sensor is screw-based.
This sensor meets RoHS standards for environmental compliance.
