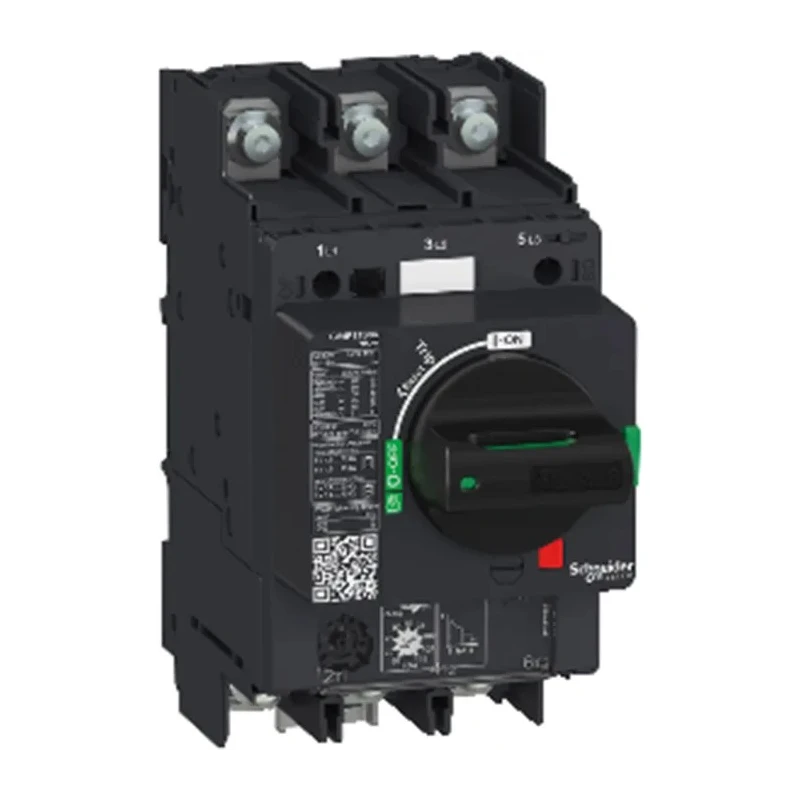

Schneider Electric Thermal Circuit Breaker 115A Current Rating 3-Pole Direct Mount TeSys GV Series GV4P115S

Schneider Electric GV4P115S Thermal Circuit Breaker is part of the TeSys GV series designed specifically for motor protection with a 115A current rating and 3-pole direct mounting configuration. It operates at a rated AC voltage of 690V and provides effective thermal magnetic protection for 3-phase motors rated between 37-55 kW at 400V.

This robust motor circuit breaker offers a breaking capacity of 10kA and medium break time, ensuring reliable interruption of overloads and short-circuits to maintain motor safety. The thermal protection can be finely adjusted by dials with setting currents ranging from 65A to 115A, while magnetic protection features a fixed pick-up at 17 times the nominal current. Additional fixed protections include short time delay, phase unbalance, loss protection, and ground fault detection to enhance motor safety.

Operation and control are facilitated by a toggle switch reset actuator and direct mounting with Everlink BTR screw terminals for secure and easy wiring. The product dimensions are 165 mm width, 116 mm height, and 116 mm depth, fitting well in compact industrial electrical panels.

The GV4P115S is certified to international standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, and is RoHS compliant as part of Schneider Electric's Green Premium commitment. Manufactured in Poland, it is engineered for long-lasting industrial and automation applications requiring multi-standard compliant motor protection devices.

Designed for 3-phase motor protection from 37 to 55 kW at 400V. Thermal magnetic trip mechanism with adjustable thermal settings. Toggle switch reset actuator for user-friendly control. Breaking capacity of 10kA with medium break time suitable for industrial motors.

Direct mounting and screw type Everlink BTR terminals to ensure reliable connections. Multi-standard certified including IEC, UL, CSA, CCC, EAC, Marine, and ATEX. Complies with CE and RoHS standards supporting environmental and safety norms.

Compact dimensions for flexible installation in electrical panels. Provides additional motor protection including phase loss and ground fault detection.

This motor circuit breaker is ideal for industrial automation systems, electrical distribution, and motor control centers requiring reliable thermal and magnetic protection. Explore more Schneider Electric products and related circuit breakers at EnvMart for comprehensive electrical protection solutions.
