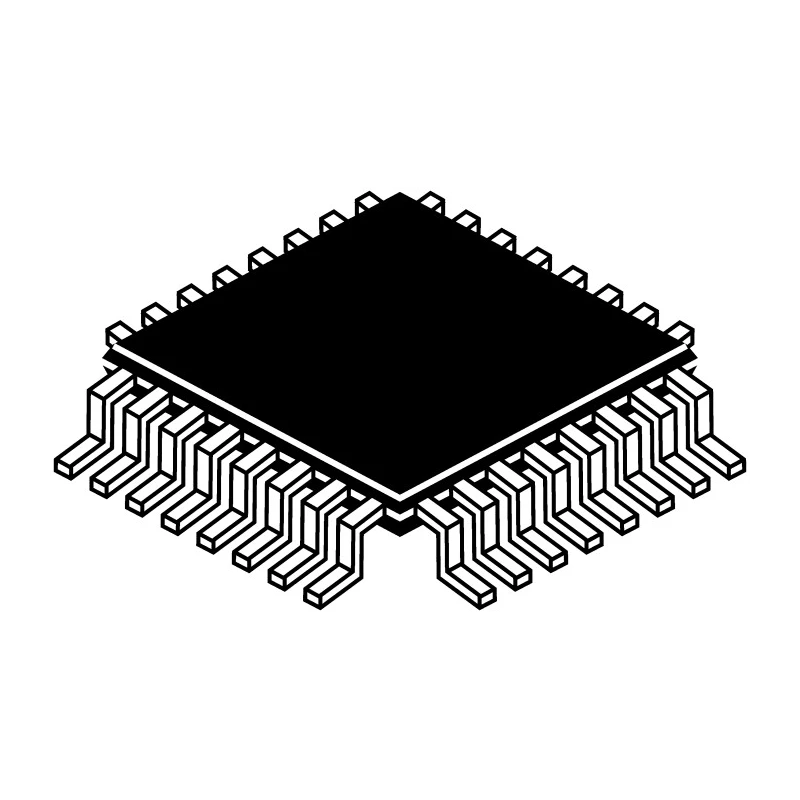

NXP 32 bit ARM Cortex M0+ Kinetis E Microcontroller 40 MHz 16kB FLASH 32-Pin QFP MKE02Z16VLC4

NXP MKE02Z16VLC4 is a 32 bit ARM Cortex M0+ microcontroller from the Kinetis E series, designed for highly robust and reliable embedded system applications. It operates at a maximum clock frequency of 40 MHz and provides 16kB of FLASH memory, alongside 4kB of RAM, enabling efficient execution of programs with ample temporary data storage.

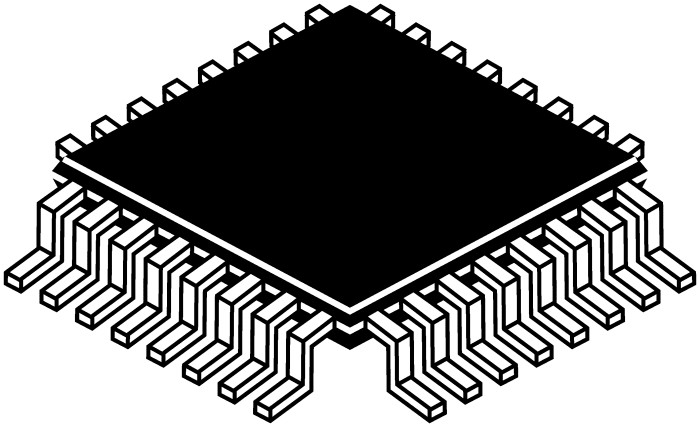

The microcontroller comes in a compact 32-Pin QFP surface-mount package measuring 7 mm by 7 mm by 1.45 mm, suitable for space-constrained industrial and commercial electronics designs.

Electrical characteristics include operation within a supply voltage range of 2.7 V minimum up to 5.5 V maximum, allowing compatibility with various power rails. It is engineered for reliable operation in harsh industrial environments with an operating temperature range extending from -40°C to 105°C.

Features integrated peripherals such as 16 analog-to-digital converters (ADCs) with 12-bit resolution, 6-bit digital-to-analog converters (DACs), and 2 analogue comparators suitable for signal acquisition and conditioning tasks. The microcontroller also includes 5 timer peripherals, enhancing its versatility for timing, counting, and PWM functionality in embedded control applications.

The device utilizes ARM architecture instruction set and FLASH memory type for program storage, ensuring compatibility with a wide range of development tools and software ecosystems.

The Kinetis E family, including this model, targets electrically noisy environments and applications demanding high reliability with +5 V power supply support. It is part of a portfolio designed for smooth migration within microcontroller families, which simplifies scaling embedded solutions.

Based on ARM Cortex M0+ core architecture providing efficient processing. Operates at a maximum clock frequency of 40 MHz suitable for embedded applications. Features 16kB of FLASH program memory and 4kB RAM for code and data storage.

Equipped with 16 analog-to-digital converters with 12-bit resolution for precise measurements. Includes 6-bit DACs and 2 analogue comparators to support signal processing. Supports a wide operating voltage range from 2.7 V to 5.5 V for flexible power supply options.

Compact 7 mm x 7 mm QFP package with 32 pins facilitates easy PCB integration. Operating temperature range from -40°C to 105°C ensures reliability in harsh environments. Contains 5 timers and uses FLASH memory type for program storage.

This microcontroller is suitable for industrial, automotive (non-automotive standard rated), consumer electronics, and embedded control applications, especially in electrically noisy environments requiring robust operation.
