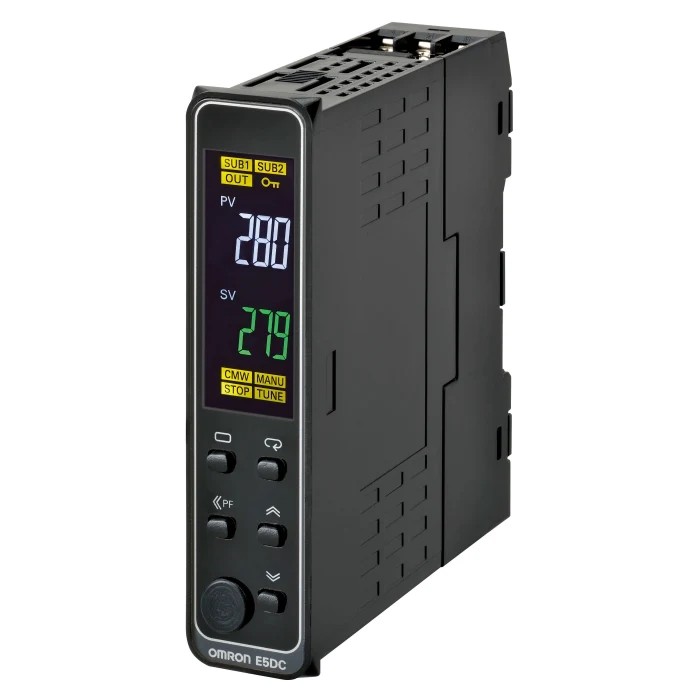

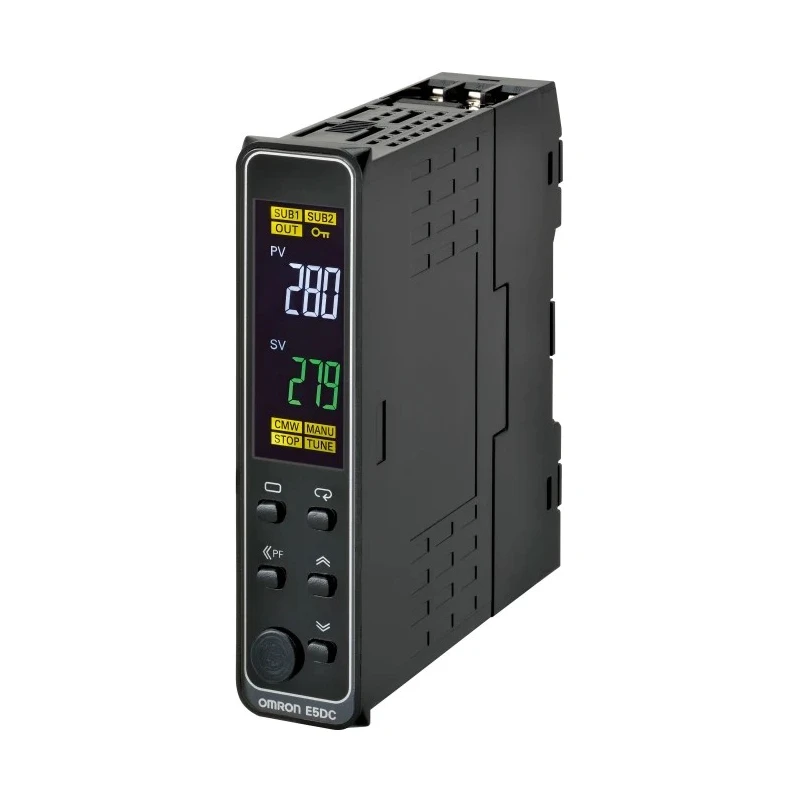

Omron PID Temperature Controller 2 Output Relay 240V AC On-Off Universal Input DIN Rail Mount E5DC

The Omron E5DC PID Temperature Controller (model E5DC-RX2DSM-000) is designed for versatile and precise temperature regulation in industrial and laboratory applications. This device supports universal input types including thermocouples, platinum resistance thermometers (PT100), and analogue signals, enabling compatibility with a wide array of temperature sensors. With a robust control range from -10°C to 50°C operating temperature and relay output for on-off control, it meets the rigorous demands of automation and process control environments.

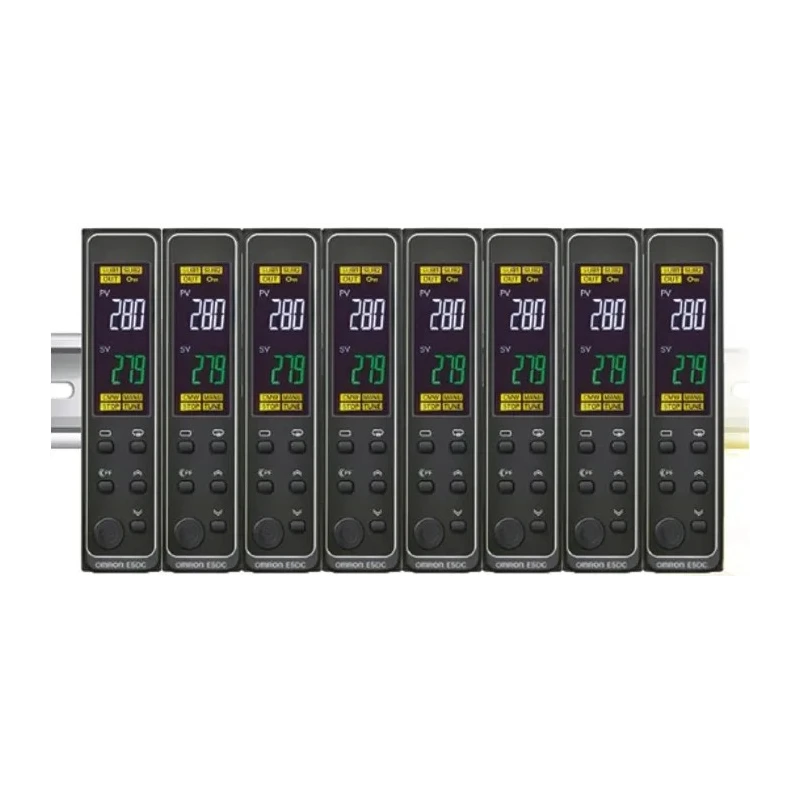

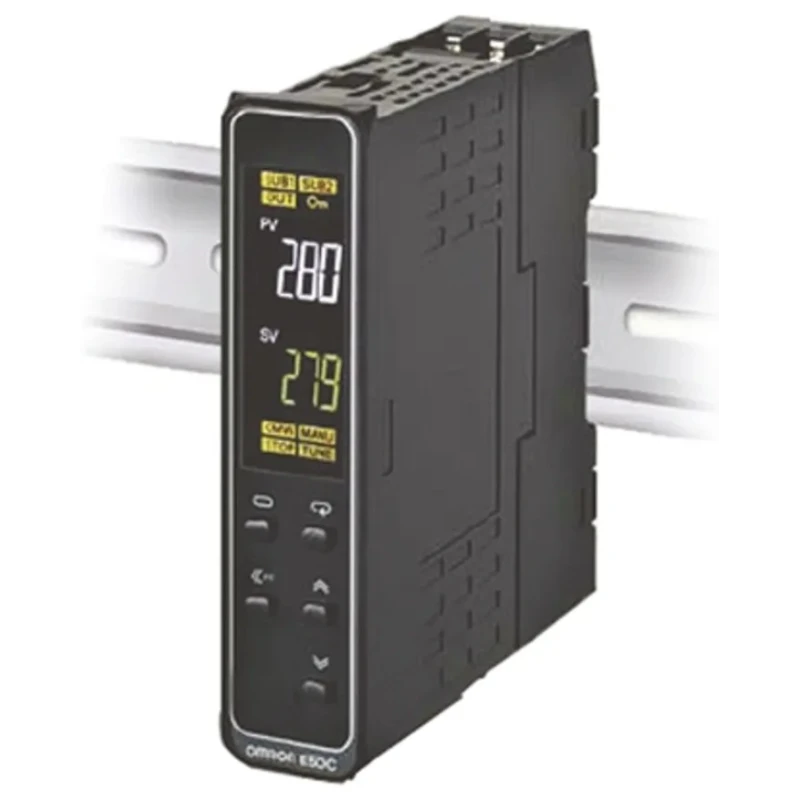

This temperature controller is compact and mounts easily on DIN rails, measuring 96mm in length, 22.5mm in width, and fitting within an 85mm panel depth. The secure screw terminal blocks allow for safe and dependable wiring installations.

The controller features an 11-segment digital display that provides clear and accurate temperature readings, facilitating easy monitoring of system status. Its RS485 digital communication allows integration into larger automated systems for centralized control and monitoring.

Conforming to standards such as EN 61000-4-11, IEC 61010-1, UL 61010-1, and others, the E5DC assures compliance with international safety and electromagnetic compatibility requirements. The IP20 rating protects against ingress of fingers and small objects, suitable for typical industrial panels.

Supports universal input sensor types including thermocouples and PT100. Dual relay outputs provide reliable on-off temperature control. DIN rail mountable for space-saving panel installation. RS485 communication supports networked automation systems.

Compliance with multiple international safety and EMC standards. 11-segment digital display for clear readout precision. Compact form factor enabling flexible installation options. IP20 protection suitable for industrial environments.

This controller is ideal for providing accurate temperature regulation in industrial ovens, manufacturing process heating, HVAC systems, and laboratory thermal management. It enables precise process control, ensuring operational efficiency and product quality in demanding applications.

Explore EnvMart's catalogue of advanced Temperature Controllers and industrial process control instruments for all your automation and measurement needs.
