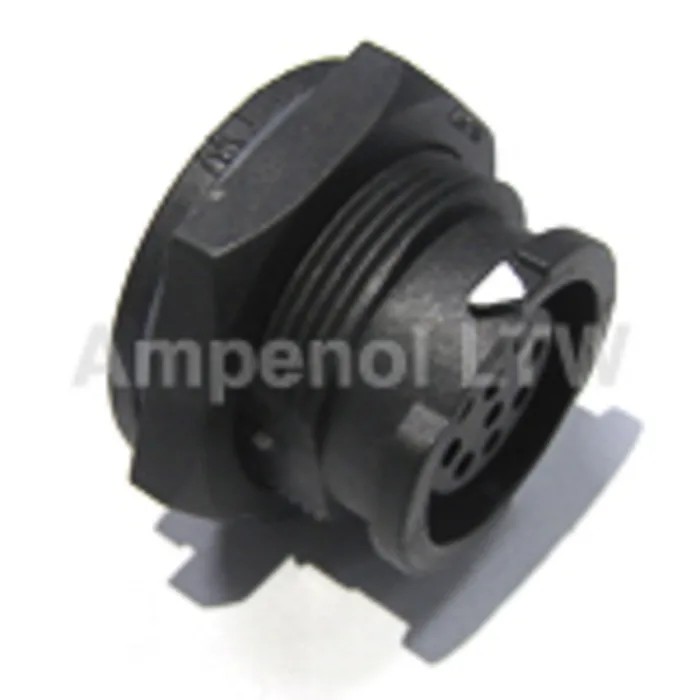

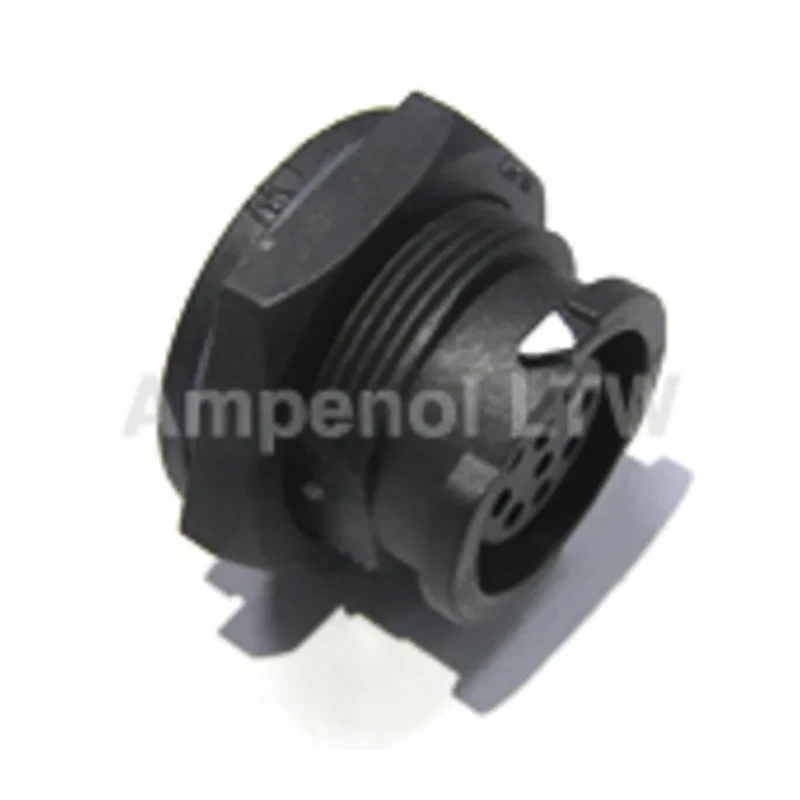

Amphenol Industrial Circular Connector 8 Contacts Front Mount Socket Female IP68 X-LOK Series CD-08PMFS-QC8001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | CD-08PMFS-QC8001 |
| IP Rating | IP68 |
| Mount Type | Front |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | X-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 8 |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Shell Size | 20.6 mm |
| Mating Type | X-Lok |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- The connector has a standard size shell measuring 20.6 mm.
- Rated for currents up to 5A and voltages up to 300V.
- Features gold-plated copper contacts for reliable conductivity.
- Constructed with a durable nylon housing suitable for extreme temperature ranges.
- Designed with X-Lok mating type for secure locking and straight orientation.
- Termination is solder type for secure electrical connection.
- Offers an unmated waterproof rating of IP68 for harsh environments.
- Operational temperature range from -40°C to 90°C ensuring versatile use.
Product Description
Amphenol Industrial CD-08PMFS-QC8001 is a high-performance industrial circular connector featuring 8 contacts with female pin contact gender. This front-mount socket connector belongs to the X-LOK series, providing a secure X-Lok mating type ensuring reliable and stable connections in industrial and electronic applications.
The connector shell size is a standard 20.6 mm diameter and it is designed to handle current ratings of up to 5 amperes and voltage ratings up to 300 volts, making it suitable for moderate power requirements. The contact materials are gold-plated copper alloys, which offer excellent conductivity and corrosion resistance. The housing is constructed from robust nylon reinforced with glass fiber (Nylon+GF), offering mechanical strength and durability.
With an IP68 protection rating (unmated), this connector is waterproof and well-suited for harsh and demanding environments. It operates reliably across a temperature range of -40°C to 90°C, which supports a wide variety of industrial, manufacturing, automation, and electronic control system applications.
The termination method is solder type, which ensures secure and reliable electrical contacts. The connector's orientation is straight, simplifying installation and wiring in many configurations.
The connector is part of Amphenol Industrial's robust X-LOK series designed for industrial applications requiring secure locking. Gold-plated copper contacts provide excellent electrical performance and longevity. Nylon with glass fiber reinforced housing ensures mechanical strength and resistance to environmental stresses.
Operates effectively within a broad temperature range from -40°C to 90°C. Features an IP68 unmated rating for dust-tight and waterproof protection in industrial environments. Solder termination type for durable and stable soldered connections.
8 contact pins arranged in standard pole format provide reliable signal or power transmission.
This circular connector supports applications in industrial machinery, electronic equipment, power distribution, and automation systems where robust, waterproof, and reliable connections are critical.
Explore more industrial connectors and related components in EnvMart’s Electronics & Electricals catalog for comprehensive solutions tailored to industrial and commercial needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 5 amperes.
It is rated for voltages up to 300 volts.
This connector has an IP68 rating, providing excellent protection against dust and water when unmated.
The housing is made from nylon reinforced with glass fiber, and the contacts are gold-plated copper.
It operates effectively within a temperature range of -40°C to 90°C.
This model uses a solder type termination for secure electrical connections.
It features 8 contacts with a female pin contact gender.
The shell size of this connector is a standard 20.6 mm in diameter.
This connector is designed with an X-Lok mating type for secure locking.
It is suitable for applications in industrial machinery, electronic equipment, power distribution, and automation systems.
The orientation of this model is straight, simplifying installation and wiring.
The country of origin for this connector is China.
