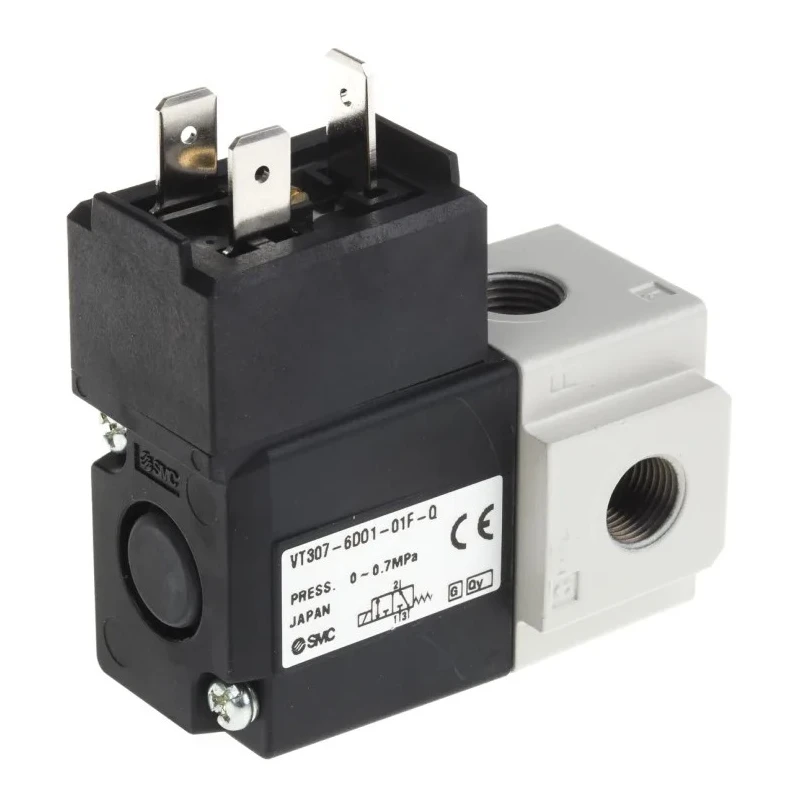

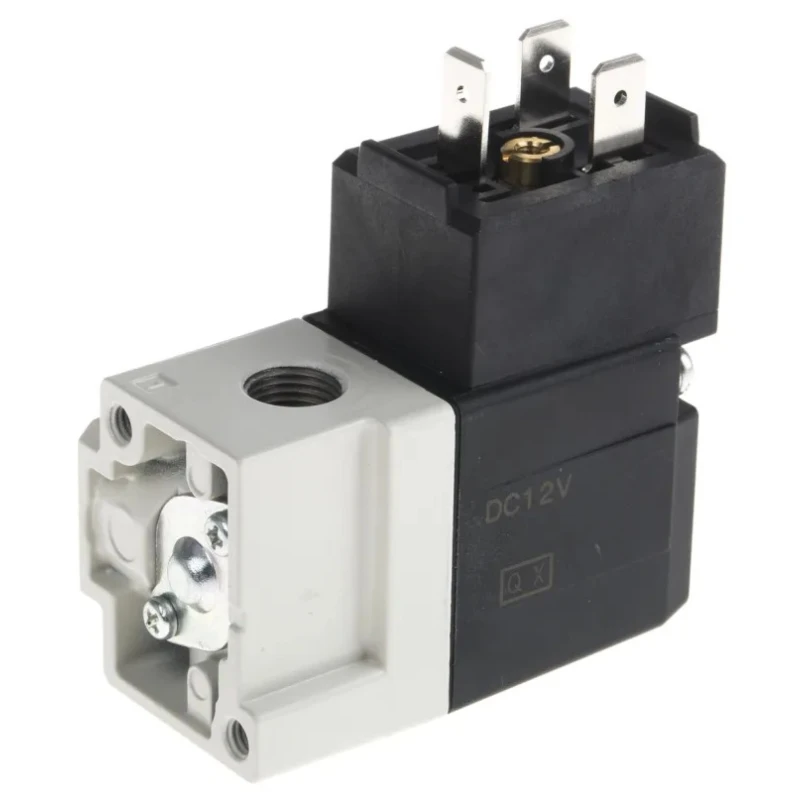

SMC Pneumatic 3/2 NC Solenoid Valve G 1/8 Threaded 12V DC 0.7 MPa Max Pressure VT307-6DO1-01F-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic 3/2 NC Solenoid Valve G 1/8 Threaded 12V DC 0.7 MPa Max Pressure VT307-6DO1-01F-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	12V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	84mm
Length	77.6mm
Model	VT307-6DO1-01F-Q
Width	25.6mm
Mount Type	Manifold
Series	VT
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/8 in
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	187L/min
Standards/Approvals	CE, RoHS
Connection Thread Standard	G 1/8
Mount Pattern	DIN
Minimum Pilot Pressure	0MPa
Valve Function	3/2 NC
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	1MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4.2W

Key Features

Constructed from die-cast aluminium for durability and lightweight performance.
Hydrogenated nitrile rubber seals provide excellent leakage prevention.
Low solenoid power consumption of 4.2 W ensures energy efficiency.
Manifold mount type allows for easy installation in pneumatic systems.
Operates reliably between -10°C and 50°C ambient temperatures.
Features a mechanical spring return and single solenoid actuation for precise control.
Compact dimensions with height 84 mm, length 77.6 mm, and width 25.6 mm.
Designed for use with air pressure ranges from 0 to 0.7 MPa.

Product Description

SMC VT307-6DO1-01F-Q Pneumatic Solenoid Valve offers reliable 3/2 NC valve function with G 1/8 threaded ports for efficient pneumatic flow control. Featuring a 12V DC solenoid, this valve is engineered for industrial automation environments requiring precise control of air pressure and flow up to 0.7 MPa. The die-cast aluminium body combines strength and lightweight design, ideal for manifold mounting configurations.

Sealed with hydrogenated nitrile rubber, the valve prevents leakage and ensures durable performance across a temperature range from -10°C to 50°C. Its mechanical spring return and single solenoid activation provide quick and accurate operation with a low power draw of 4.2 W, contributing to energy efficiency in control systems.

This valve supports air pressures from 0 to 0.7 MPa and is suitable for pneumatic circuits in manufacturing, automation, and industrial machine applications. The compact dimensions of 84 mm height, 77.6 mm length, and 25.6 mm width allow integration into tight system spaces. The valved ports are female-threaded with standard G 1/8 connections, and electrical interfacing is facilitated by a DIN connector for standardized installation.

Durable die-cast aluminium body for robustness and corrosion resistance. Hydrogenated nitrile rubber seals enhance valve longevity and performance. Energy-efficient solenoid operation at 4.2 W power consumption. Manifold mount type simplifies assembly and maintenance.

Operating temperature range from -10°C to 50°C meets diverse environmental needs. Compliant with CE and RoHS standards for safety and environmental protection. Designed for air pressure control up to 0.7 MPa for versatile pneumatic applications.

Ideal for industrial pneumatic systems that demand compact, reliable, and energy-efficient valve solutions. This product is manufactured in Japan and comes new with standard warranty terms. Explore more pneumatic valve solutions and accessories in the Industrial Valves section on EnvMart.
