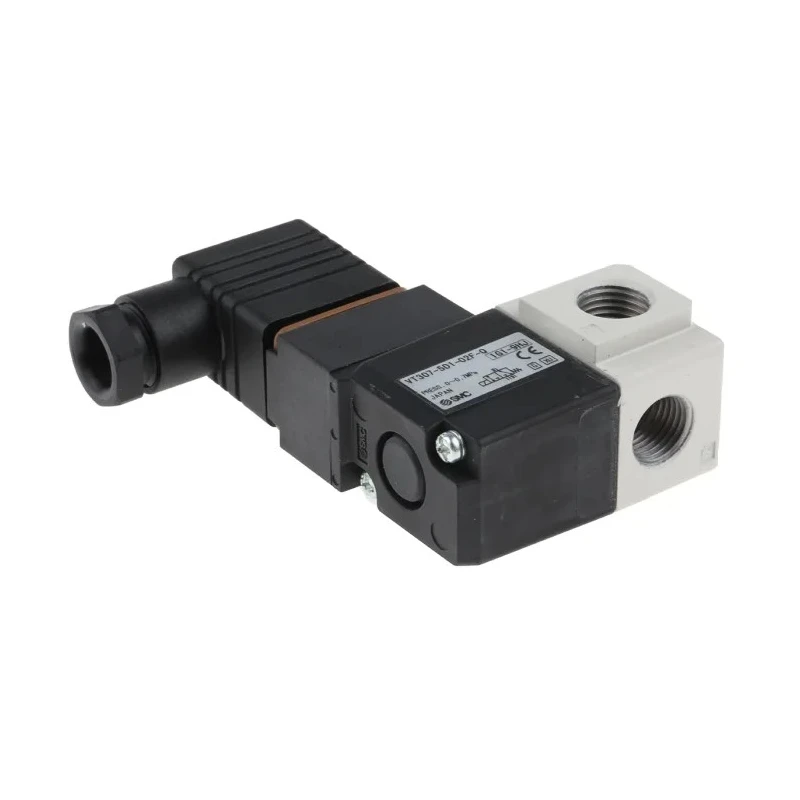

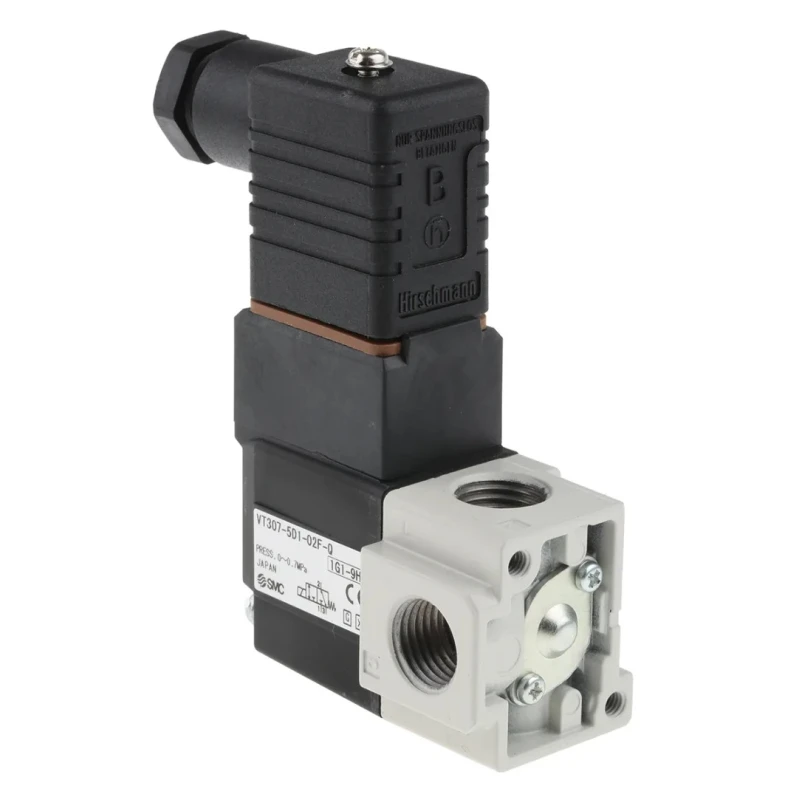

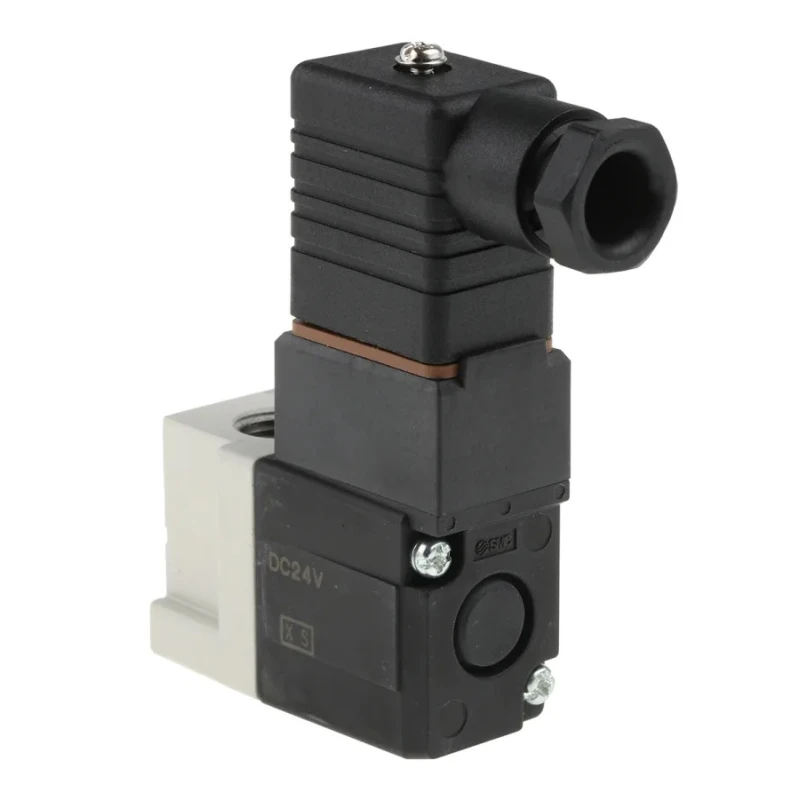

SMC Pneumatic Solenoid Valve 3/2 Solenoid G 1/4 Threaded Port 24V DC 4.2W Die Cast Aluminium VT307-5D1-02F-Q

The SMC VT307-5D1-02F-Q Pneumatic Solenoid Valve provides reliable 3/2 valve functionality with a 24V DC single solenoid actuation, designed for industrial automation and pneumatic control systems. Constructed with a die cast aluminium body, the valve balances durability and lightweight properties to support efficient and long-lasting operation in industrial environments.

This valve includes manifold mounting capability, facilitating straightforward installation and space savings in pneumatic assemblies. It is engineered to operate effectively between pressures of 0 MPa to a maximum of 0.7 MPa and withstands operating temperatures ranging from -10°C up to 50°C, making it suitable for varied operational conditions.

Equipped with G 1/4 threaded female ports, the valve ensures simple integration with existing pneumatic pipeline setups. Its three ports and three positions allow precise directional control of air flow in pneumatic systems. The electrical connection is standardized with a DIN connector, supporting compatibility with typical industrial controls.

The solenoid coil consumes 4.2W power, operating at 24V DC to deliver dependable actuation energy. The physical dimensions of 77.6mm length, 25.6mm width, and 84mm height enable compactness, optimizing space within machinery or control panels.

Applications include automated manufacturing processes, robotics actuation, pneumatic motion control, and electric-mechanical sectors requiring precise fluid power valves. The valve's CE and RoHS certifications underscore compliance with essential safety and environmental standards.

Constructed from die cast aluminium for durability and low weight. Manifold mounting enables compact and organized pneumatic systems. Operating pressure range suitable for diverse pneumatic applications. Standard G 1/4 threaded female ports for easy connection.

Solenoid power consumption optimized at 4.2W, 24V DC. Robust performance across a broad temperature range. Three-port, three-position configuration for versatile flow control. DIN connector electrical interface for seamless integration.

Compact size for efficient use in limited spaces.

Consider the VT307-5D1-02F-Q for reliable, precise pneumatic valve applications in industrial, manufacturing, laboratory, and automation settings. Explore the wider SMC valve series and pneumatic components on EnvMart for comprehensive fluid power solutions.
