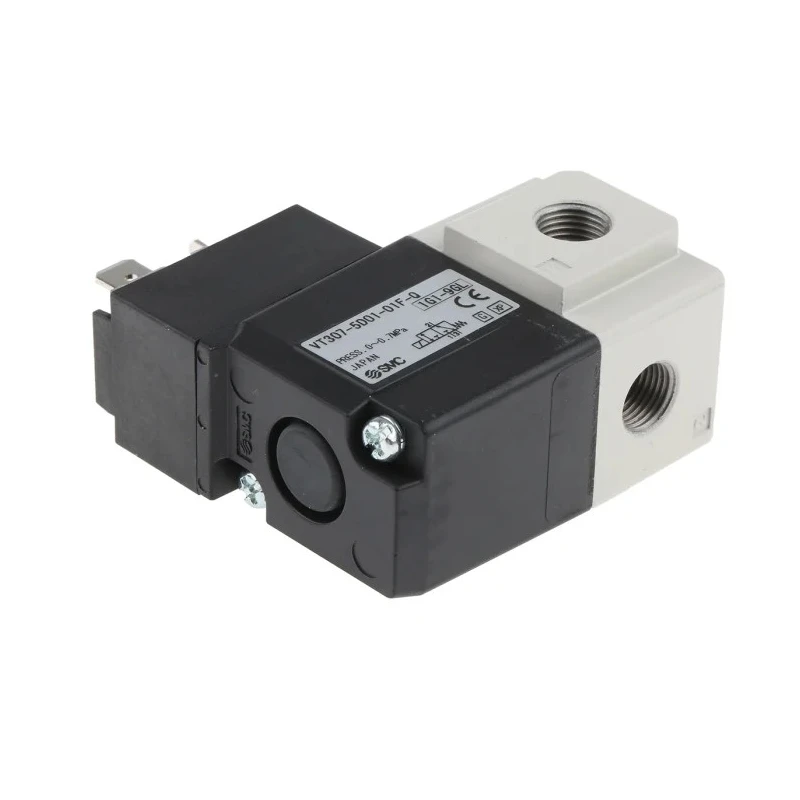

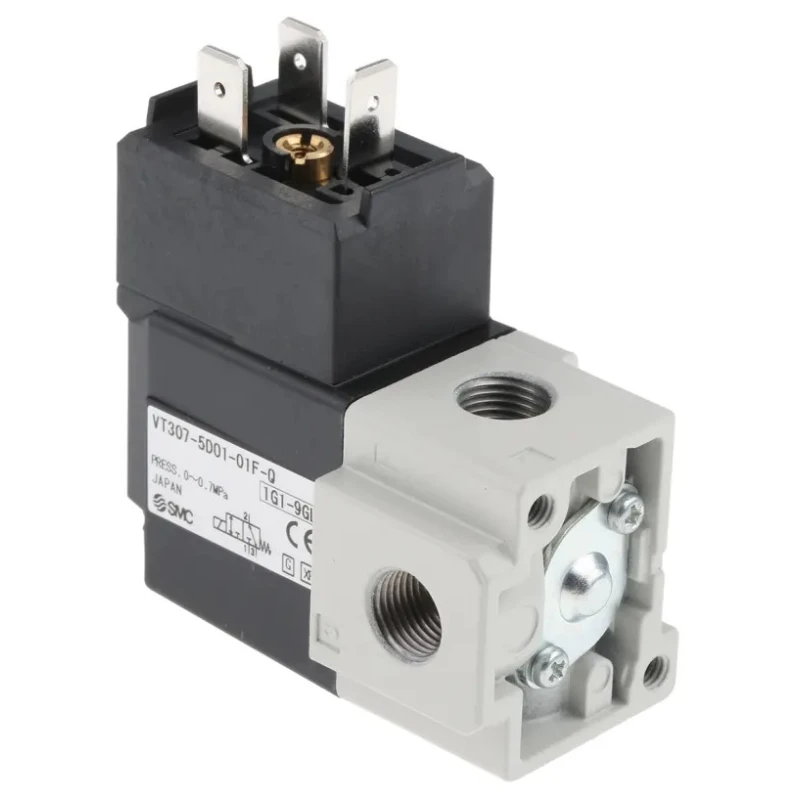

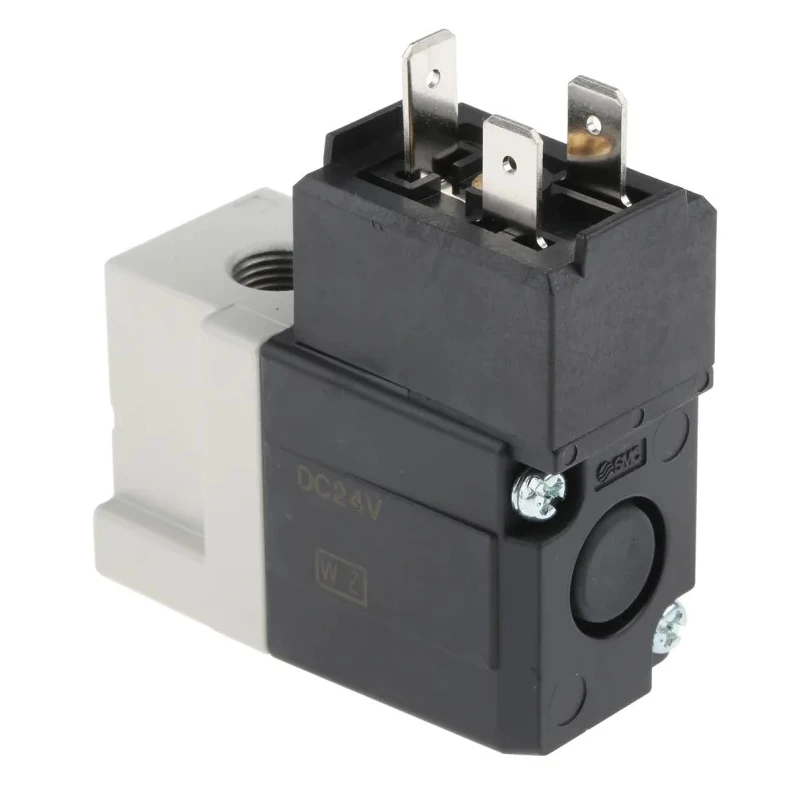

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8, 24V DC, 4.2W, Die Cast Aluminium Body VT307-5DO1-01F-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8, 24V DC, 4.2W, Die Cast Aluminium Body VT307-5DO1-01F-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	84mm
Length	77.6mm
Model	VT307-5DO1-01F-Q
Width	25.6mm
Mount Type	Body Ported
Series	VT
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/8 in
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	187L/min
Standards/Approvals	RoHS, CE
Connection Thread Standard	G 1/8
Mount Pattern	DIN
Minimum Pilot Pressure	0MPa
Valve Function	3/2 NC
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	1MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4.2W
SMC 3/2 Pneumatic Control Valve - Spring/Solenoid G 1/8 VT307 Series 24V dcBrand	SMC

Key Features

Operates between temperatures of -10°C and 50°C for diverse industrial applications.
Supports maximum operating pressure of 0.7 MPa and pilot pressure up to 1 MPa.
Constructed with a durable die cast aluminium body ported design.
Features a single solenoid actuation with 3 ports and 3 positions.
Equipped with hydrogenated nitrile rubber seals for reliability and longevity.
Compact dimensions with length 77.6 mm, height 84 mm, and width 25.6 mm.
Includes DIN connector type electrical connection ensuring secure fits.
Designed for unrestricted mounting orientation with dust-proof enclosure.

Product Description

SMC VT307-5DO1-01F-Q Pneumatic Solenoid Valve 3/2 NC series is a high-quality, direct-acting solenoid valve designed with a G 1/8 threaded port size. It operates at 24V DC voltage and consumes 4.2 watts of power, offering energy-efficient performance. The valve is engineered to handle maximum operating pressure of 0.7 MPa and pilot pressure ranges from 0 to 1 MPa.

Constructed with a durable die cast aluminium body and hydrogenated nitrile rubber seal material, the valve ensures long-lasting reliability in demanding industrial environments. It features a compact form factor of 77.6 mm length, 84 mm height, and 25.6 mm width, making it suitable for confined spaces.

The VT307 series solenoid valve offers a versatile 3-port, 3-position function with a single solenoid actuation type. The valve assembly includes a DIN electrical connector for seamless integration with control systems. Designed for unrestricted mounting orientation, the valve includes a dust-proof enclosure that maintains performance in harsh environments.

Additional features include a non-locking push type manual override allowing for easy manual operation, and an inverting function plate facilitating conversion from Normally Closed (N/C) to Normally Open (N/O) configurations. The valve meets industry standards such as RoHS and CE certifications, ensuring environmental compliance and safety.

Typical applications include blow-off valves, pressure release valves, single-acting cylinder drives, divider valves, double-acting cylinder drives, selector valves, valves for vacuum, and divider valves. This solenoid valve is widely used in pneumatic control in industrial processes, manufacturing automation, fluid power systems, and HVAC controls.

Operates reliably across -10°C to 50°C temperature range. Supports maximum flow rate of 187 L/min with high efficiency. Robust body material and seal ensure durability in demanding conditions. Provides adaptability with interchangeable universal porting.

Manufactured in Japan to stringent quality standards for superior performance. Explore the comprehensive range of Pneumatic Solenoid Valves available at EnvMart to find the perfect valve solution for your industrial automation needs.
