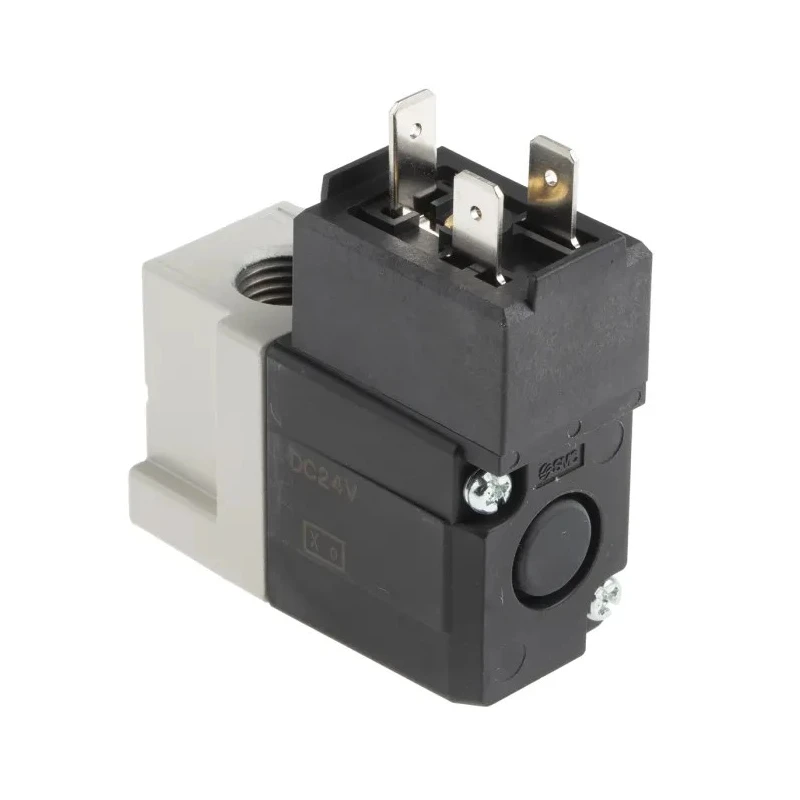

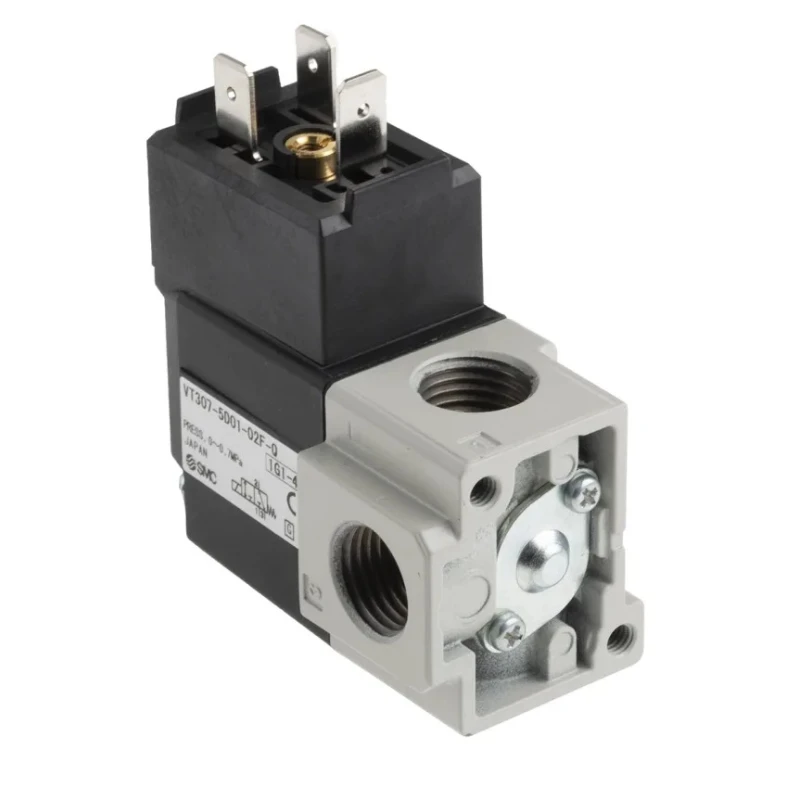

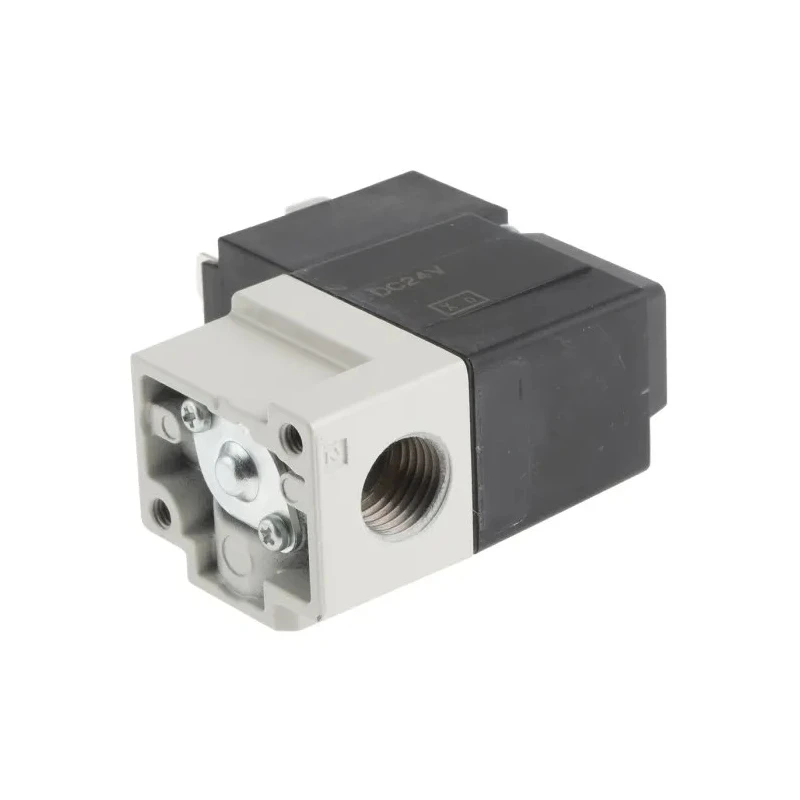

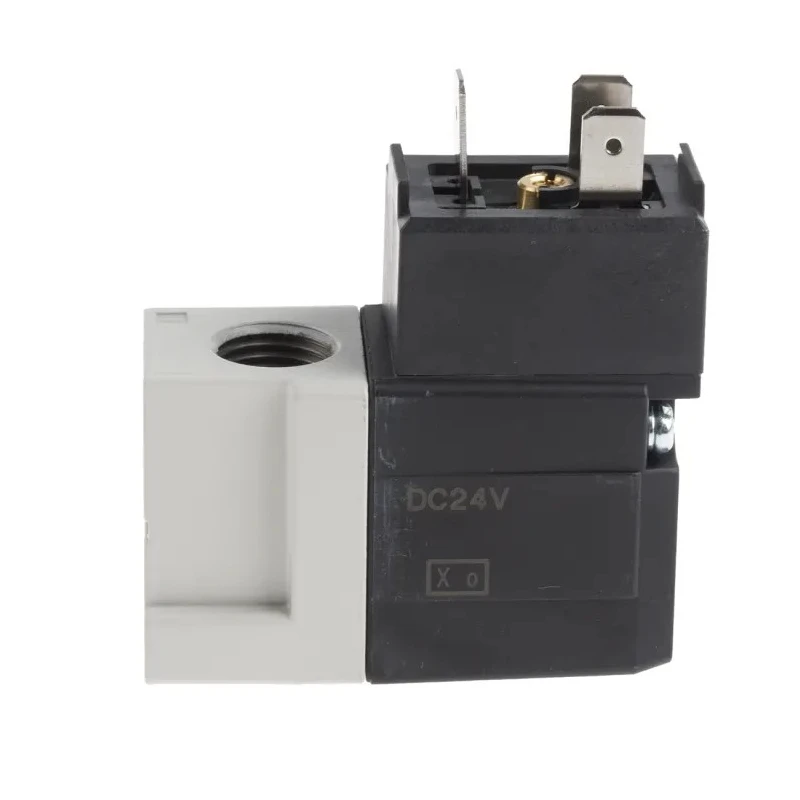

SMC Pneumatic Solenoid Valve 3/2 Solenoid G Port 1/4 Inch Manifold Mount Die Cast Aluminium Body 24V dc VT307-5DO1-02F-Q

SMC VT307-5DO1-02F-Q Pneumatic Solenoid Valve is a direct-acting 3/2 port valve designed for efficient pneumatic control with a 1/4 inch G threaded port and die cast aluminium body. The valve operates at 24 volts DC with a low power consumption of 4.2 watts, making it energy efficient and reliable for long-term industrial use.

The valve supports a maximum operating pressure of 0.7 MPa and a pilot pressure range from 0 to 1 MPa. It features hydrogenated nitrile rubber seals that ensure durability and resistance to wear and tear. Mounting is manifold style with a DIN standard pattern, and its electrical interface is a DIN connector, facilitating easy integration into existing setups.

Designed for universal porting, the valve body is ported to allow versatile installation with a dust-proof enclosure that protects internal components. The unit supports unrestricted mounting orientation, allowing installation flexibility. Additionally, a non-locking push type manual override aids manual operations and testing without requiring complex tools.

The valve function is 3/2 ports with 3 positions, suitable for blow-off valves, pressure release valves, single acting cylinder drives, and selector valves. It operates reliably in temperature ranges from -10°C to 50°C and has compact dimensions of 84mm in height, 77.6mm in length, and 25.6mm in width. The SMC VT307 Series solenoid valve complies with RoHS and CE standards and is protected to IP65, making it suitable for use in hazardous industrial areas.

Operates on 24V dc power with low consumption of 4.2W. Maximum operating pressure of 0.7 MPa with 1 MPa pilot pressure capacity. Durable hydrogenated nitrile rubber seals for extended service life. Manifold mount type with DIN mount pattern and connector.

Universal porting and dust-proof design for versatile applications. Non-locking push-type manual override included. 3/2 valve function with three ports and three positions. Wide operating temperature range from -10°C to 50°C.

Compact and precise dimensions: 84mm height, 77.6mm length, 25.6mm width. Standards compliance: RoHS, CE with IP65 protection class.

This valve is ideal for pneumatic control in industrial automation, manufacturing, fluid power systems, and HVAC applications. Its robust design and certified safety features make it suitable for use in demanding environments, including hazardous area operations. Customers can benefit from efficient flow management and reliable switching with this SMC Pneumatic Solenoid Valve from the VT series.
