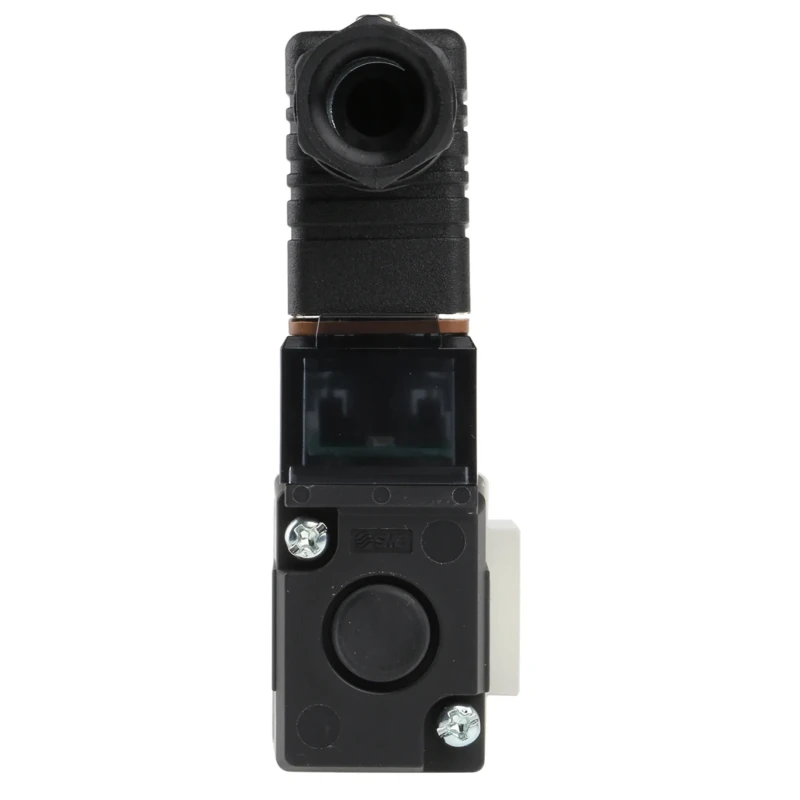

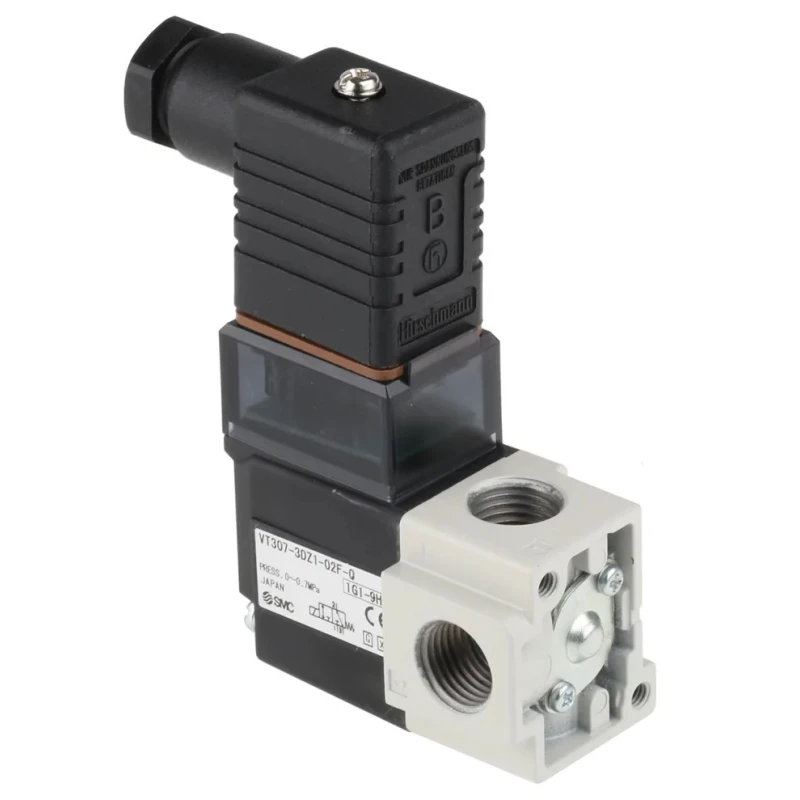

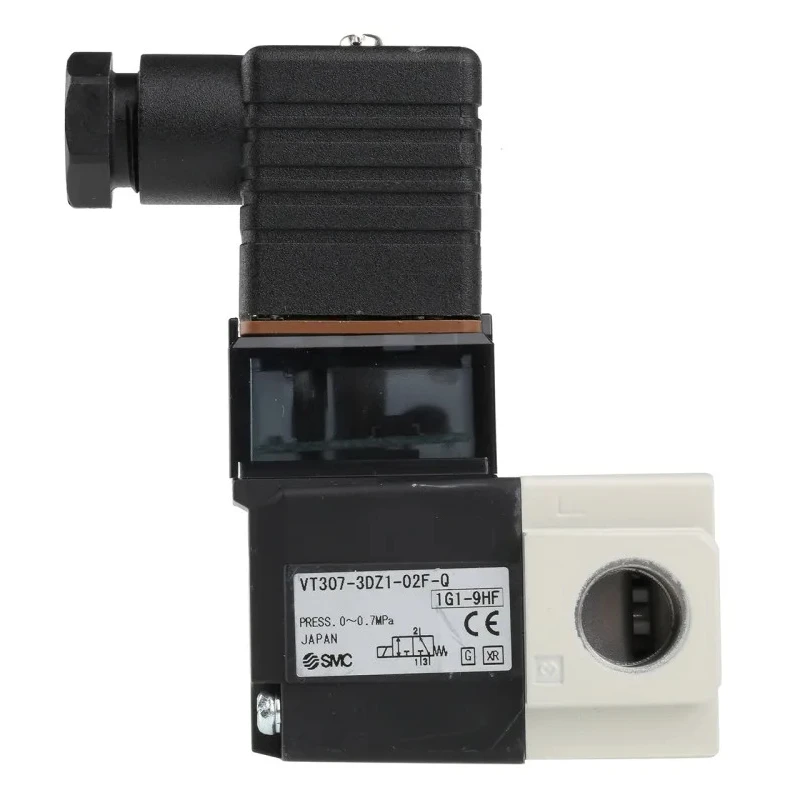

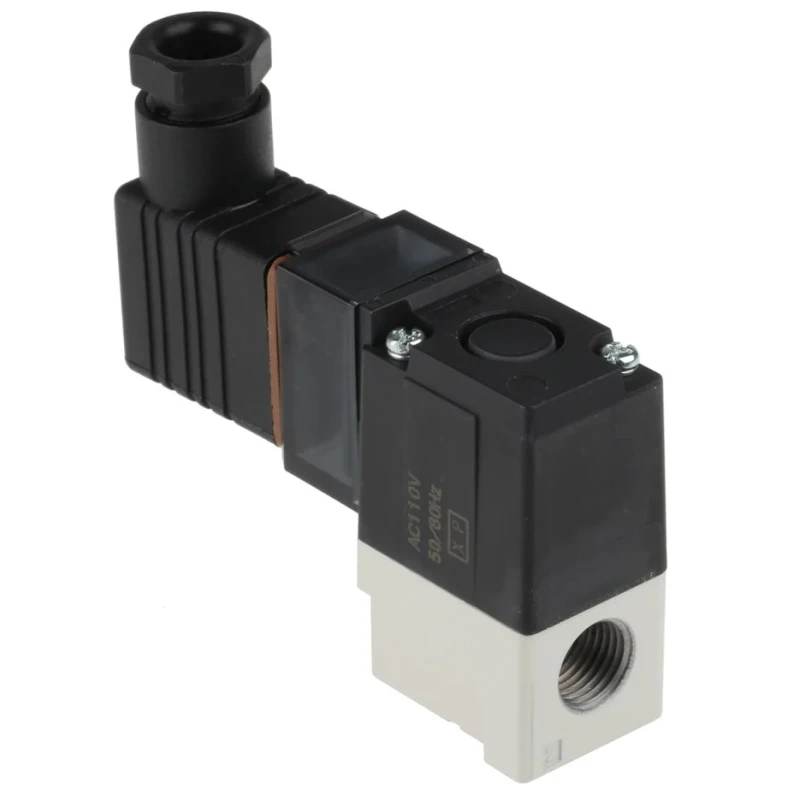

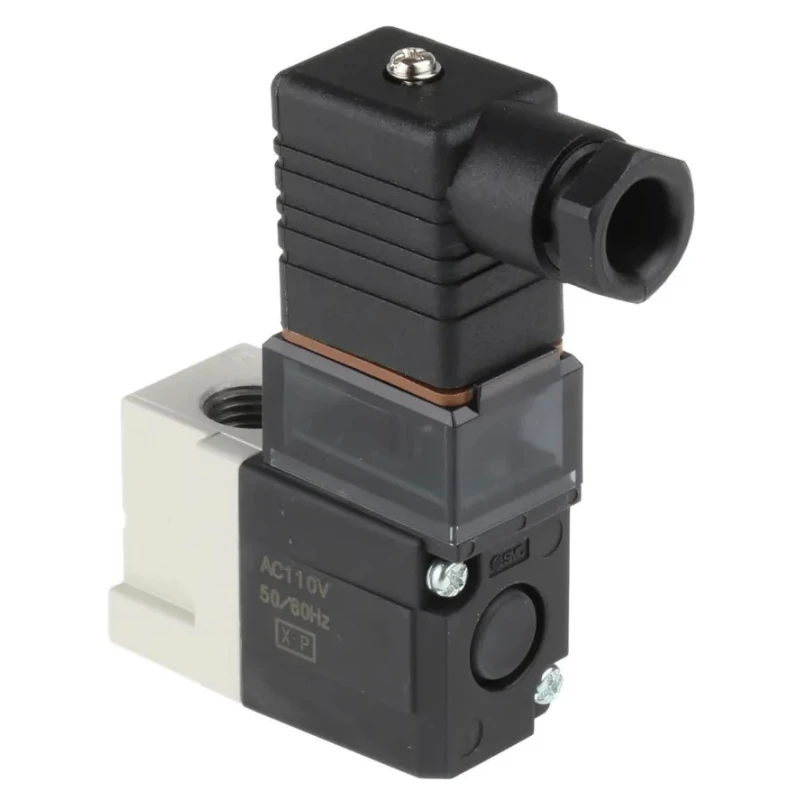

SMC Pneumatic Solenoid Valve Standard Solenoid G 1/4 inch Port, 3-Port 3-Position Manifold Mount VT307-3DZ1-02F-Q
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 110V ac |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 84mm |
| Length | 77.6mm |
| Model | VT307-3DZ1-02F-Q |
| Width | 25.6mm |
| Mount Type | Manifold |
| Series | VT |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Port Type | Threaded |
| Number of Positions | 3 |
| Port Size | 1/4 in |
| Seal Material | Hydrogenated Nitrile Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 187L/min |
| Standards/Approvals | RoHS, CE |
| Connection Thread Standard | G |
| Mount Pattern | DIN |
| Minimum Pilot Pressure | 0MPa |
| Valve Function | Standard |
| Electrical Connection Type | DIN Connector |
| Maximum Pilot Pressure | 1MPa |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 4.2W |
Key Features
- Operates at 110V AC with low electrical power consumption of 4.2 watts.
- Features threaded 1/4 inch female G port connection for compatibility with pneumatic systems.
- Body made of durable die cast aluminium for robust industrial use.
- Maximum operating pressure of 0.7 MPa and maximum flow rate of 187 L/min for efficient air control.
- Hydrogenated nitrile rubber seals for ozone resistance and compressed air compatibility.
- Manifold mount type with DIN connector electrical interface for easy installation.
- Rated to operate safely within -10°C to 50°C ambient temperature range.
- Three-port, three-position valve function with mechanical spring return.
Product Description
SMC VT307-3DZ1-02F-Q Pneumatic Solenoid Valve Standard Solenoid G series is a 3-port, 3-position valve engineered for direct actuation in compressed air systems. This manifold-mount valve features threaded female G ports sized 1/4 inch, designed to integrate seamlessly into pneumatic manifolds and automated equipment.
The valve operates on 110V AC electrical supply using a DIN connector, consuming a low 4.2 W power, which ensures energy-efficient control. The robust die cast aluminium body ensures long service life under industrial conditions, while hydrogenated nitrile rubber seals provide excellent ozone resistance and fluid compatibility for compressed air applications.
It supports a maximum operating pressure of 0.7 MPa with a flow capacity of 187 L/min, suitable for responsive actuation in factory automation control panels, actuator circuits, and pneumatic valve islands. The valve is designed to function reliably between -10°C and 50°C, with a mechanical spring providing return to a normal closed position when de-energized.
The valve meets RoHS and CE standards, confirming its compliance with environmental and safety regulations. Operates on 110V AC with low 4.2W power consumption. Threaded 1/4 inch female G ports for versatile installation.
Die cast aluminium body for durability in industrial settings. Maximum operating pressure 0.7 MPa with 187 L/min flow rate capacity. Ozone-resistant hydrogenated nitrile rubber seals for reliable sealing. Manifold mount type with DIN electrical connector.
Temperature operating range from -10°C to 50°C. Spring return for valve closing when de-energized. Compact dimensions suitable for tight installations. RoHS and CE compliant for industrial quality assurance. It is suitable for use in industrial, manufacturing, HVAC, and automated pneumatic systems.
Explore the wide range of Pneumatic Solenoid Valves available at EnvMart to find the perfect match for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.7 MPa.
It has a maximum flow rate capacity of 187 L/min.
This unit features a DIN connector for its electrical connection.
The solenoid power consumption is 4.2 watts.
The dimensions are 77.6 mm in length, 25.6 mm in width, and 84 mm in height.
It operates safely within a temperature range of -10°C to 50°C.
The body is made of die cast aluminium, and the seals are made from hydrogenated nitrile rubber.
This model features three ports.
Yes, it meets RoHS and CE standards for compliance with environmental and safety regulations.
It has a standard valve function with a mechanical spring return.
The valve has a port size of 1/4 inch with a threaded female G port type.
This valve is suitable for use in industrial, manufacturing, HVAC, and automated pneumatic systems.
