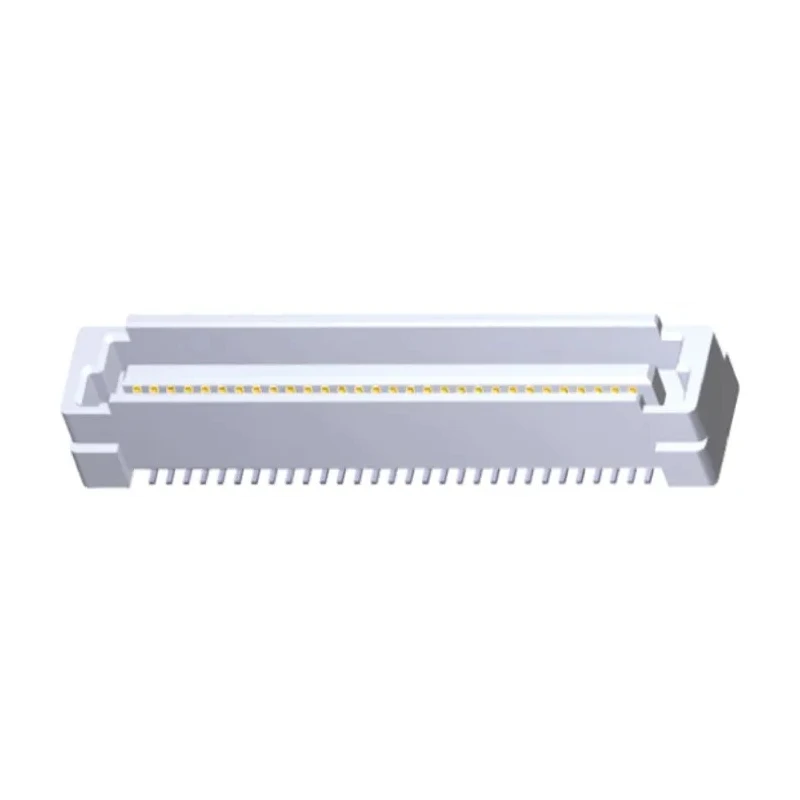

TE Connectivity Free Height Series Straight Surface PCB Header, 60 Contacts, 0.8 mm Pitch, 2 Row, Shrouded 1-5177986-2

TE Connectivity 1-5177986-2 Free Height Series Straight Surface PCB Header offers a 60-contact, 0.8 mm pitch, and 2-row shrouded design optimized for compact board-to-board connections in advanced electronic systems. Manufactured from matt housing material, this PCB header uses high-quality copper alloy contacts with gold plating to provide strong signal integrity and durability.

Designed for surface mount applications, it features a straight orientation with a shrouded configuration to protect contacts and prevent assembly errors. The connector’s bellows-type spring contact design minimizes damage from mating and unmating cycles, ensuring long-term electrical reliability. The polarization and locating bosses enable precise PCB alignment and mating accuracy.

Operating within a temperature range of -65°C to 105°C and rated for 500mA current and 100V voltage, this connector suits a variety of electronic devices including telecommunications, industrial equipment, military hardware, and aerospace applications. Its compact 0.8 mm pitch supports dense PCB stacking from 5 mm to 20 mm heights when mated with corresponding receptacles.

The product is manufactured in China and complies with no special certifications or approvals. It is new and packaged on reels ready for automated machinery insertion, streamlining production processes.

High density 0.8 mm pitch enables compact PCB designs. Gold-plated copper alloy contacts ensure reliable conductivity. Shrouded and polarized housing prevents mis-mating and damage. Supports operating temperature from -65°C to 105°C for versatility.

Ideal for parallel board stacking in advanced electronics. Rated for 500mA current and 100V voltage for low-power applications. Bellow spring contact design reduces mating damage and ensures signal integrity. Locating bosses facilitate precise PCB positioning during assembly.

Manufactured in China and supplied as new product on reels.

This PCB Header is suitable for industrial, telecommunications, computer, military, and aerospace applications requiring dependable, space-efficient board connections. Explore more high-quality PCB connectors with TE Connectivity on EnvMart for advanced electronic solution needs.
