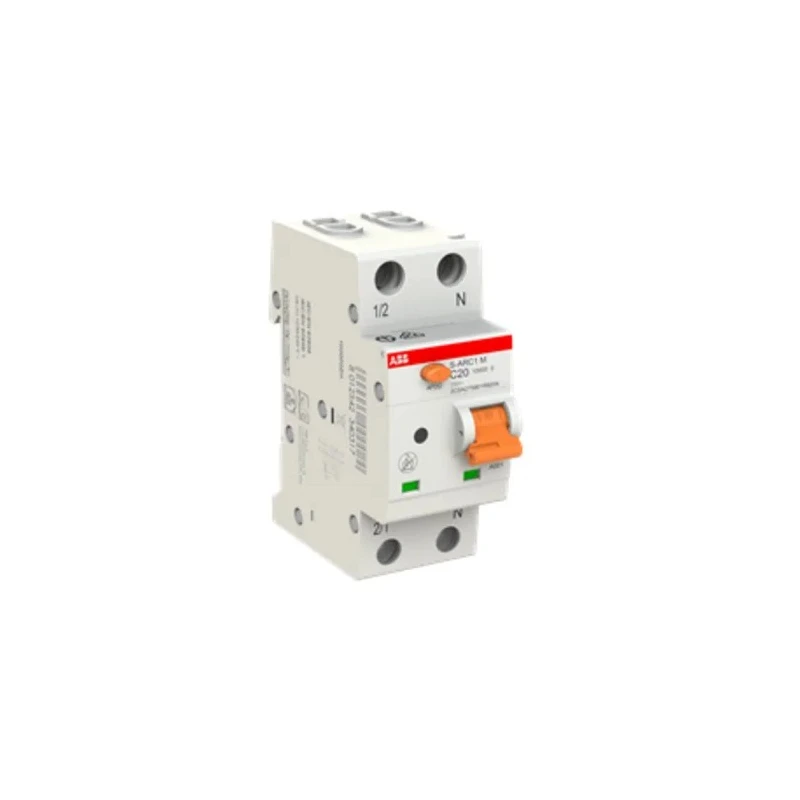

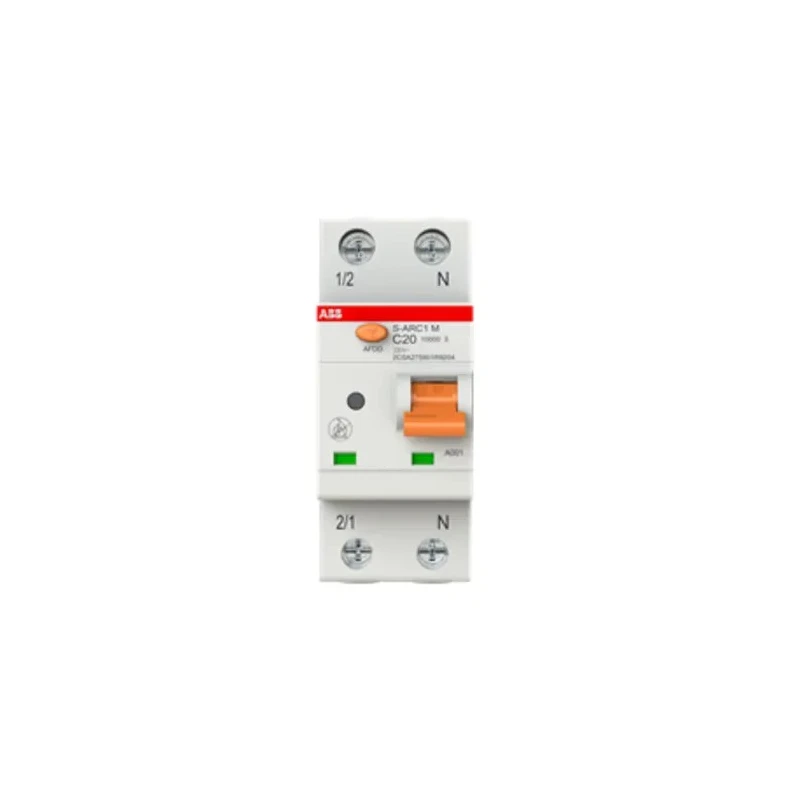

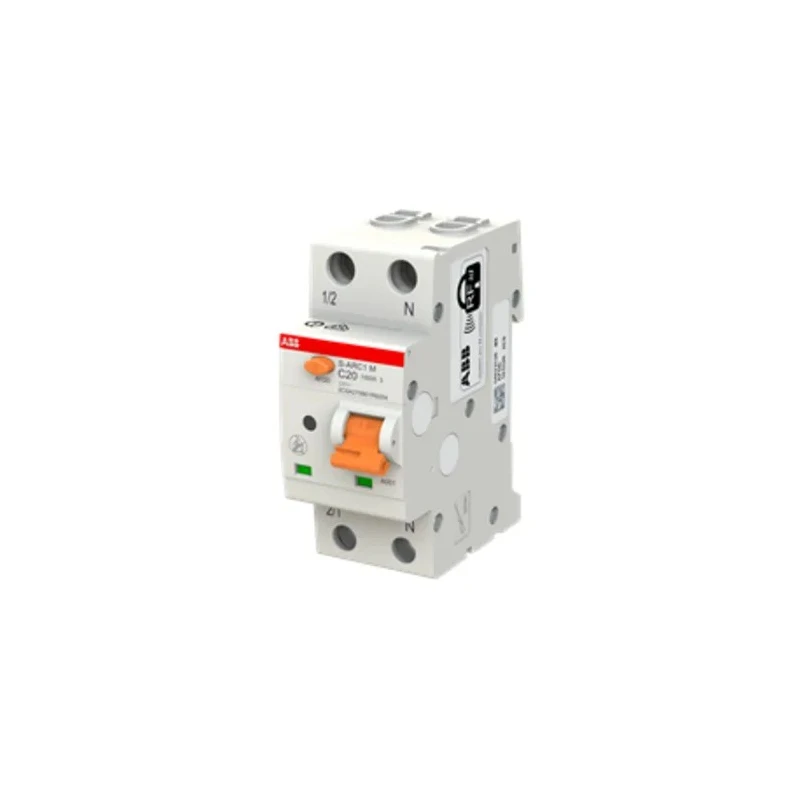

ABB S-ARC1 M Miniature Circuit Breaker, 1-Pole, 20A, Type C Tripping, 240V AC, 10 kA Breaking Capacity ARC1

Free Delivery in India | Lowest Global Shipping Charges

ABB S-ARC1 M Miniature Circuit Breaker, 1-Pole, 20A, Type C Tripping, 240V AC, 10 kA Breaking Capacity ARC1



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	S-ARC1 M
Brand	ABB
Height	85mm
Model	ARC1
Depth	69mm
IP Rating	IP20, IP40
Width	35mm
Mount Type	DIN Rail
Current Rating	20A
Series	S-ARC1 M
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	240V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch

Key Features

Features a Type C tripping characteristic for dependable overcurrent protection.
Designed for DIN rail mounting with a compact 35mm width.
Incorporates a thermal magnetic tripping mechanism for enhanced safety.
Equipped with screw terminals for secure wiring connections.
Offers IP20 and IP40 protection ratings for environmental resistance.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
Suitable for use in residential, commercial, and industrial electrical installations.
Includes a toggle switch reset actuator for easy operation.

Product Description

ABB ARC1 Miniature Circuit Breaker model ARC1 is a robust 1-pole MCB designed for reliable circuit protection in electrical and automation systems. Rated for 20A current with a Type C tripping characteristic, it effectively safeguards circuits against overload and short-circuit conditions at 240V AC.

This device offers a high breaking capacity of 10kA to ensure enhanced safety and minimize damage in fault conditions. Its thermal magnetic tripping mechanism provides accurate response to overcurrent while supporting arc fault detection to reduce fire hazards.

The compact and durable design allows easy DIN rail mounting. Screw terminal connections provide secure installation. Its IP20 and IP40 ratings offer versatile protection against dust and accidental contact, suitable for various industrial and commercial applications.

Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards, this MCB meets rigorous international safety and performance benchmarks. The toggle switch actuator facilitates operator control and prompt resetting after fault clearance.

Applications include electrical circuits in nurseries, care homes, workshops, wooden structures, hospitals, hotels, and private apartments. Its high reliability makes it appropriate for environments with elevated fire risk and where dependable circuit protection is critical.

Features a Type C tripping characteristic for dependable overcurrent protection. Designed for DIN rail mounting with a compact 35mm width. Incorporates a thermal magnetic tripping mechanism for enhanced safety. Equipped with screw terminals for secure wiring connections.

Offers IP20 and IP40 protection ratings for environmental resistance. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards. Suitable for use in residential, commercial, and industrial electrical installations. Includes a toggle switch reset actuator for easy operation.

Originates from Italy ensuring quality manufacturing standards. Measures 85mm height and 69mm depth, designed for standard installations. Explore EnvMart's selection of industrial electrical protection devices to ensure safety and compliance across your installations.
