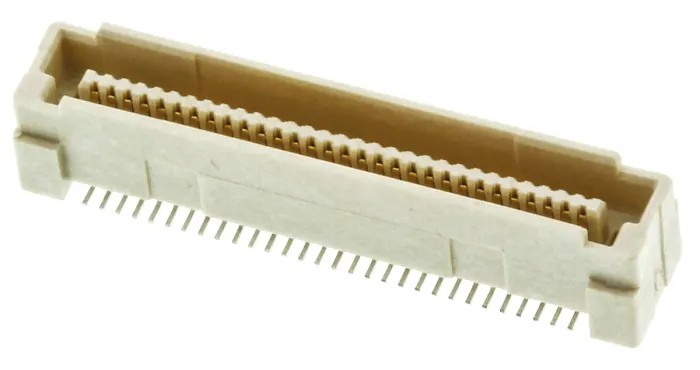

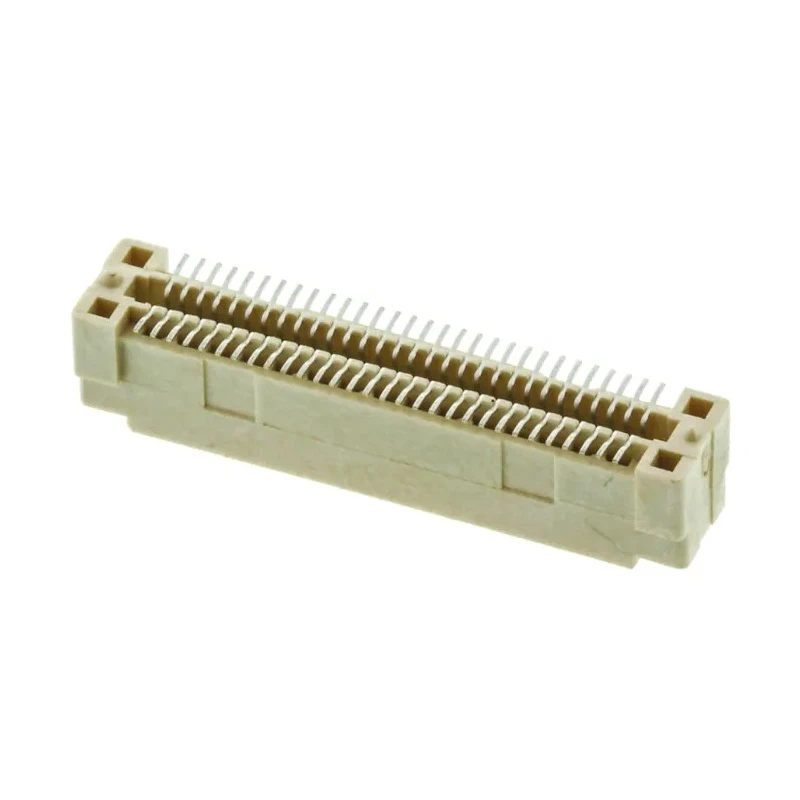

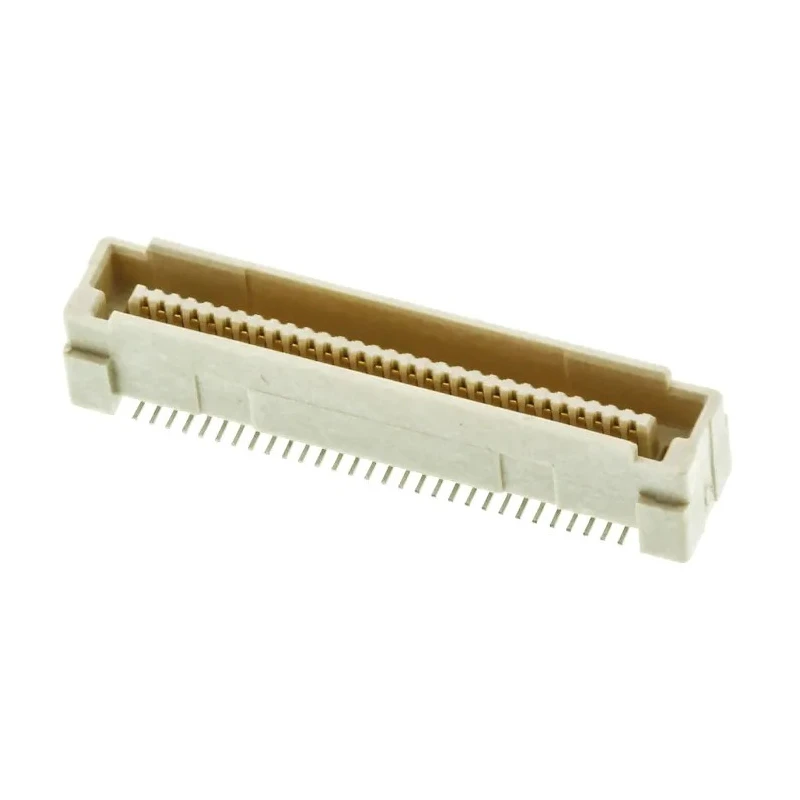

TE Connectivity Free Height Series Straight Surface PCB Header 60 Contacts 0.8 mm Pitch 2 Row Shrouded 5179030-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Matt |
| Contact Material | Copper Alloy |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Compact 0.8 mm pitch suitable for high-density PCB applications.
- Two-row configuration with 60 individual contacts.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- Shrouded design prevents mis-mating and improves connector durability.
- Designed for surface mount technology (SMT) with straight orientation.
- Operating temperature range from -55°C to 105°C for diverse environments.
- Rated for a voltage of 100V and current of 500mA.
- Polarized housing allows accurate mating and PCB placement.
Product Description
TE Connectivity 5179030-2 Free Height Series Straight Surface PCB Header is a high-performance board-to-board plug connector designed for vertical stacking of printed circuit boards. Featuring 60 gold-plated copper alloy contacts arranged in two rows with a fine 0.8 mm pitch, this shrouded header provides a space-saving, reliable interconnection solution for compact electronic assemblies.
The connector operates reliably within a temperature range from -55°C to 105°C, supporting a voltage rating of 100V and current of 500mA, making it suitable for demanding industrial, telecommunications, military, and aerospace applications. Its surface mount type with straight orientation allows easy and accurate placement on PCBs, aided by locating bosses and polarized housings to prevent misalignment and mis-mating.
The innovative bellows type spring contact design enhances durability by resisting scooping and stubbing during mating and unmating cycles, ensuring strong signal integrity and electrical connection over the product lifecycle. The shrouded design provides additional protection to the contacts, increasing connector reliability in harsh environments.
Typical applications include high-end computing devices, communication equipment, test cards, card extenders, and other electronic systems requiring high-density, miniature connectors for multi-board configurations.
Compact 0.8 mm pitch suitable for high-density PCB applications. Two-row configuration with 60 individual contacts. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance. Shrouded design prevents mis-mating and improves connector durability.
Designed for surface mount technology (SMT) with straight orientation. Operating temperature range from -55°C to 105°C for diverse environments. Rated for a voltage of 100V and current of 500mA. Polarized housing allows accurate mating and PCB placement.
Ideal for use in telecommunications, industrial, military, and aerospace equipment. Manufactured in China to high-quality standards. Explore the wide range of TE Connectivity connectors on EnvMart to find the perfect solutions for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 0.8 mm, making it suitable for high-density applications.
This model features 60 individual contacts arranged in a two-row configuration.
It is rated for a voltage of 100V and a current of 500mA.
The operating temperature range is from -55°C to 105°C, allowing it to function in diverse environments.
This header is designed for surface mount technology (SMT) with a straight orientation.
The contacts are made from gold-plated copper alloy, ensuring excellent conductivity and corrosion resistance.
Yes, it has polarized housing and locating bosses to ensure accurate mating and PCB placement.
The shrouded design of the connector provides additional protection to the contacts, enhancing reliability in harsh environments.
The termination type for this model is solder, suitable for secure connections on PCBs.
Typical applications include high-end computing devices, communication equipment, and test cards, among others requiring high-density connectors.
This connector is manufactured in China to high-quality standards.
