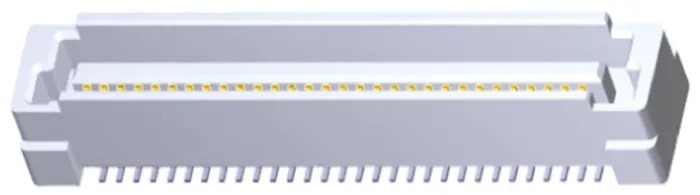

TE Connectivity Free Height Series Straight Surface PCB Header 60 Contacts 0.8 mm Pitch 2 Row Shrouded 1-5177986-2

Free Delivery in India | Lowest Global Shipping Charges

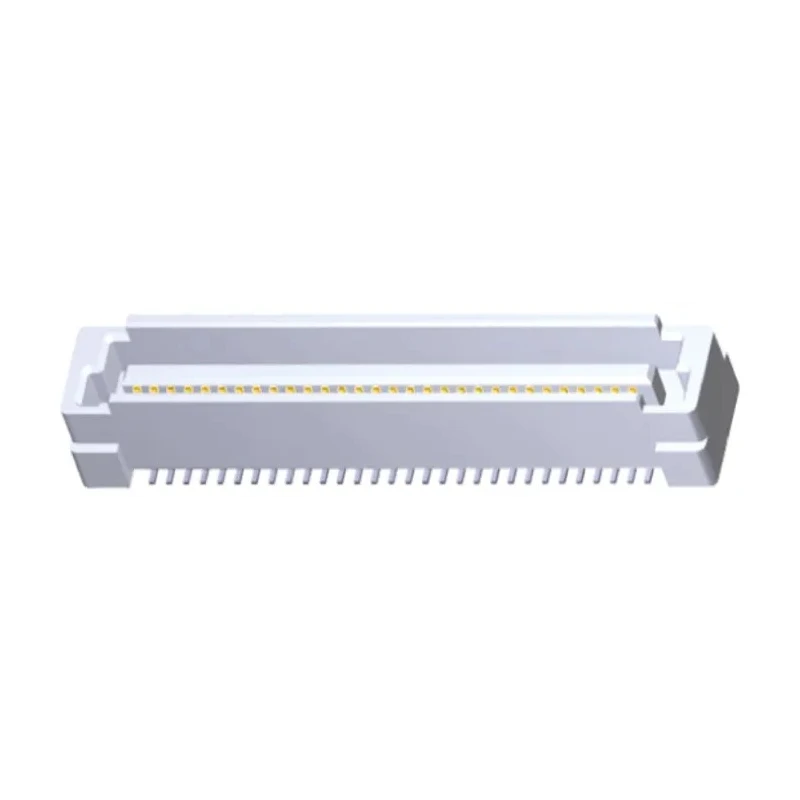

TE Connectivity Free Height Series Straight Surface PCB Header 60 Contacts 0.8 mm Pitch 2 Row Shrouded 1-5177986-2

Name: TE Connectivity Free Height Series Straight Surface PCB Header 60 Contacts 0.8 mm Pitch 2 Row Shrouded 1-5177986-2
Brand: TE Connectivity
SKU: 236915
Price: 5.99 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	TE Connectivity
Orientation	Straight
Current	500mA
Mount Type	Surface
Housing Material	Matt
Contact Material	Copper Alloy
Series	Free Height
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features a shrouded housing to ensure secure mating and prevent damage.
Made with copper alloy contacts plated in gold for excellent conductivity and corrosion resistance.
Supports a current rating of 500mA at 100V for reliable signal transmission.
Designed for surface mount technology with straight orientation allowing parallel board stacking.
Operates in temperature range from -65°C to 105°C for versatile industrial applications.
Polarization and locating bosses ensure correct PCB placement and mating.
Suitable for high-density electronic devices requiring miniaturized connectors.
Manufactured in China with high-quality materials ensuring durability.

Product Description

TE Connectivity 1-5177986-2 Free Height Series Straight Surface PCB Header is a precision-engineered board-to-board connector designed for high-density parallel board stacking in advanced electronic applications.

This PCB header features 60 male copper alloy contacts arranged in 2 rows with a 0.8 mm pitch and is shrouded to protect the contacts and prevent mis-mating. The gold plating ensures excellent conductivity and resistance to corrosion, making it ideal for reliable electrical connections in telecommunications, industrial equipment, military, aerospace, and computing applications.

Its surface mount technology mount type and straight orientation allows easy integration into PCB designs where space saving and signal integrity are critical. The connector supports currents up to 500mA at 100V and operates reliably across a wide temperature range from -65°C to 105°C.

The unique bellows type spring design of the contacts resists damage during mating and unmating cycles, maintaining strong signal integrity over the product lifespan. Polarization and locating bosses assist in accurate PCB placement to minimize assembly errors.

This Free Height Series connector is well-suited for applications including test cards, card extenders, communications, and other electronic equipment requiring compact, high-reliability connectors. It is manufactured in China with a matte housing material offering robust mechanical protection.

Shrouded housing for protection and correct mating. Gold plated copper alloy contacts for durability and signal integrity. Supports 500mA current at 100V voltage rating. Surface mount, straight orientation for parallel board stacking.

Operational temperature from -65°C to 105°C. Polarization and locating bosses for precise placement. Free Height Series suitable for high density electronic applications. Manufactured in China with matte housing material.

Ideal for industrial, telecommunications, aerospace, and military electronics PCB applications requiring reliable high-density connectors. Explore more TE Connectivity PCB connectors and related accessories at EnvMart.

Explore more products in our PCB Connectors & Wire Housings category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It supports a current rating of 500mA at a voltage of 100V, ensuring reliable signal transmission.

The contacts are arranged with a pitch of 0.8 mm, allowing for high-density connections.

It operates reliably within a temperature range of -65°C to 105°C, suitable for various industrial applications.

This model features 60 male contacts arranged in 2 rows, designed for board-to-board connections.

The contacts are made of copper alloy and are plated in gold for excellent conductivity and corrosion resistance.

It is designed for surface mount technology, allowing for easy integration into PCB designs.

Yes, it features a shrouded housing and polarization bosses to ensure secure mating and correct PCB placement.

This connector has a straight orientation, which facilitates parallel board stacking.

The termination type is solder, which is standard for PCB connections.

It belongs to the Free Height Series, designed for high-density electronic applications.

It is manufactured in China, utilizing high-quality materials for its construction.

It is suitable for telecommunications, industrial equipment, military, aerospace, and computing applications requiring compact, high-reliability connectors.
