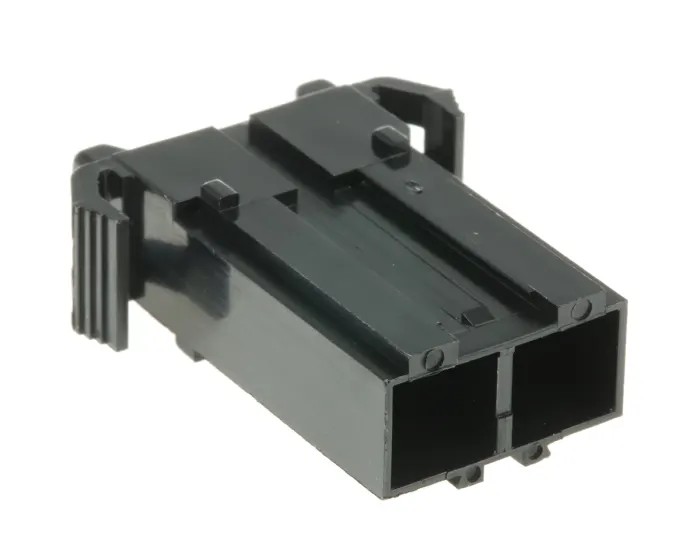

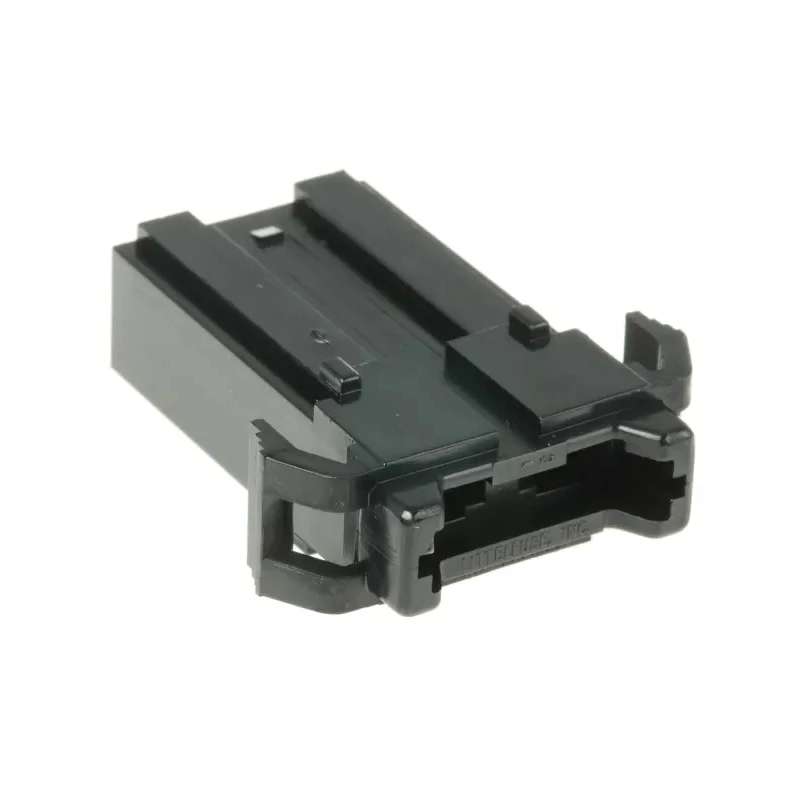

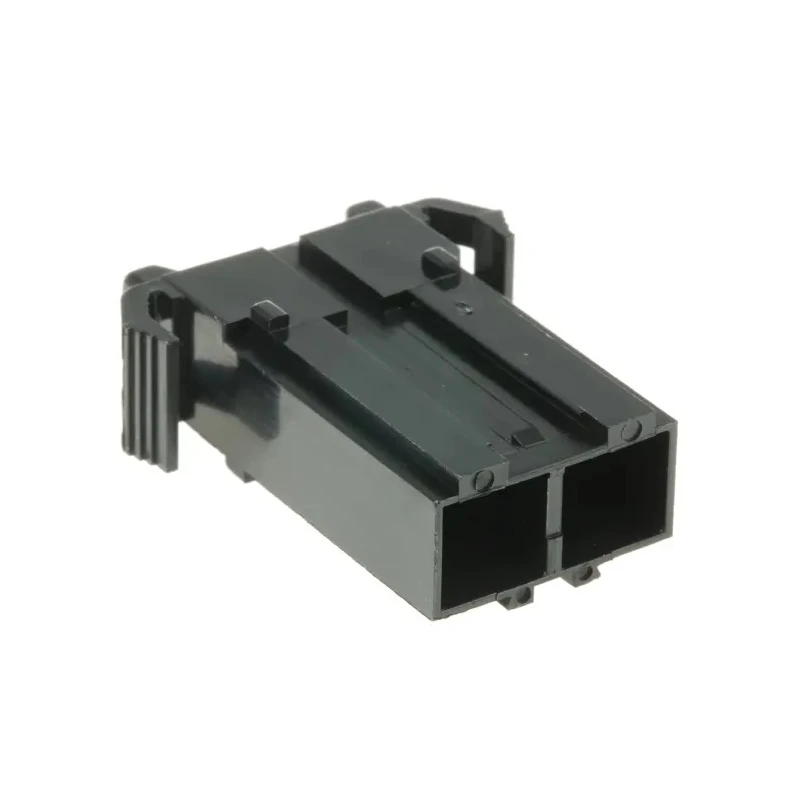

Littelfuse 20A Panel Mount Fuse Holder 32V DC 155 Series ATO Fuse Holder 01550320ZXU
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Littelfuse |
| Model | 01550320ZXU |
| Series | ATO |
| Terminal type | Wire |
Key Features
- Robust and reliable construction from high-grade thermoplastic materials.
- Compact black thermoplastic body with UL94 V2 flame retardant rating.
- Easy snap-mounting into panels with sprung loaded retention tabs.
- Interlocking design allows multiple fuse holders to be mounted together.
- Terminals designed for 14 AWG stranded wire or cable.
- Suitable for a maximum current of 20 amps and 32 volts DC.
- Wide ambient temperature operating range from -40° C to +85° C.
- Compatible with ATO style automotive blade fuses.
Product Description
Littelfuse 01550320ZXU panel mount fuse holder is engineered for 20 amp and 32 volt DC circuits, compatible with the 155 Series ATO blade automotive fuses. It is designed for secure and easy installation into panels, ensuring reliable circuit protection in a compact form factor.
The fuse holder is manufactured using high-grade thermoplastic materials that provide robustness and durability. Its black UL94 V2 rated body ensures flame retardant properties, making it safe for automotive and industrial electrical applications. The holder features sprung loaded tabs at the top and bottom to securely retain the fuse once mounted through the panel cut-out.

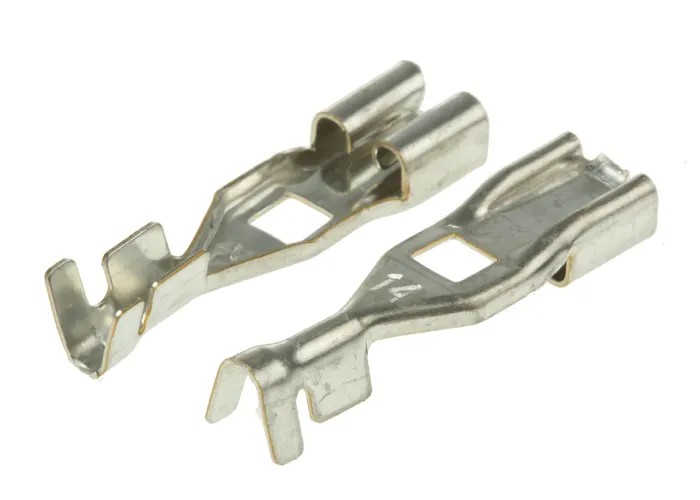

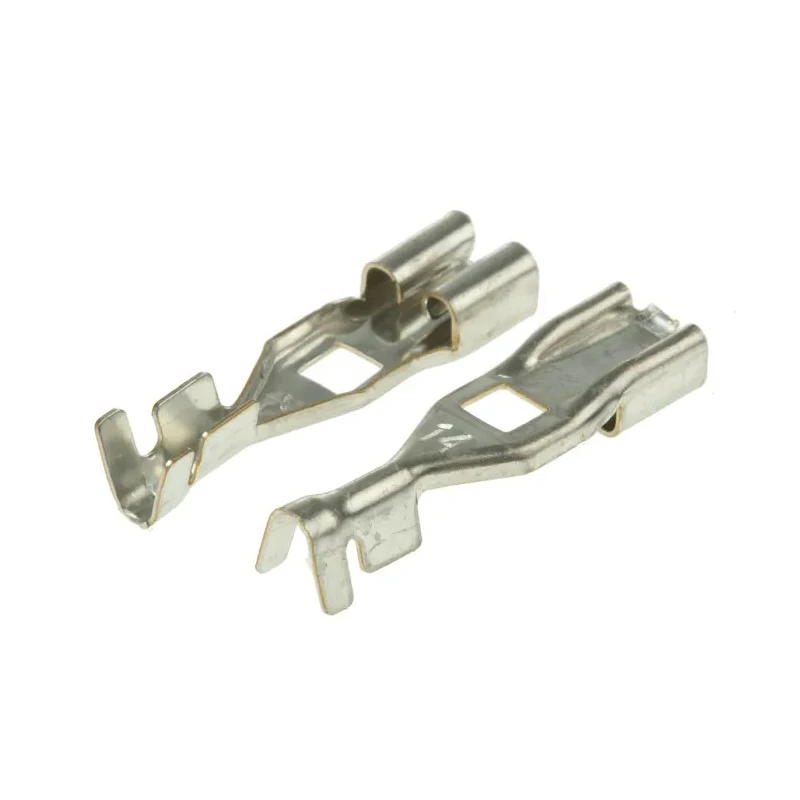

Terminals are tin-plated brass and designed to snap-lock into the fuse body, suitable for 14 AWG stranded wires for efficient current transmission. The interlocking design allows multiple fuse holders to be mounted in series for modular installation setups.
This fuse holder operates reliably over a wide ambient temperature range of -40° C to +85° C, making it suitable for harsh environments. Its compact design requires no specialist tools for installation, aiding quick maintenance and repair tasks.
Common industrial and vehicle-related applications include protecting vehicle wiring looms, motorbike electrical circuits, and agricultural machinery against excessive current that may cause damage or fire hazards. The holder fits seamlessly in automotive circuits using ATO blade fuses.
Robust high-grade thermoplastic construction ensuring long service life. UL94 V2 flame retardant body for safety. Snap-mounting into panel apertures for secure fitting. Interlocking capability for multiple fuse mounting.
Terminals support 14 AWG stranded cable or wire for electrical connectivity. Maximum continuous current rating of 20 amps. Maximum voltage rating of 32 volts DC. Wide operating temperature range from -40° C to +85° C. Ideal for automotive wiring, motorbikes, and agricultural machinery.
Explore more in Fuse Holders & Accessories category at EnvMart for high-quality panel mount fuse holders like the Littelfuse 01550320ZXU.
Explore more products in our Fuse Holders & Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous current rating for this fuse holder is 20 amps.
It is designed for a maximum voltage of 32 volts DC.
This fuse holder is compatible with ATO style automotive blade fuses.
The operating temperature range is from -40° C to +85° C.
It is constructed from high-grade thermoplastic materials with a UL94 V2 flame retardant rating.
The terminals are tin-plated brass and are designed for 14 AWG stranded wire or cable.
It features easy snap-mounting into panels with sprung loaded retention tabs, requiring no specialist tools.
Yes, the interlocking design allows multiple fuse holders to be mounted together for modular setups.
Common applications include protecting vehicle wiring looms, motorbike electrical circuits, and agricultural machinery.
The country of origin for this fuse holder is Mexico.
No, it requires no specialist tools for installation, aiding quick maintenance and repair tasks.
The model number of this fuse holder is 01550320ZXU.
