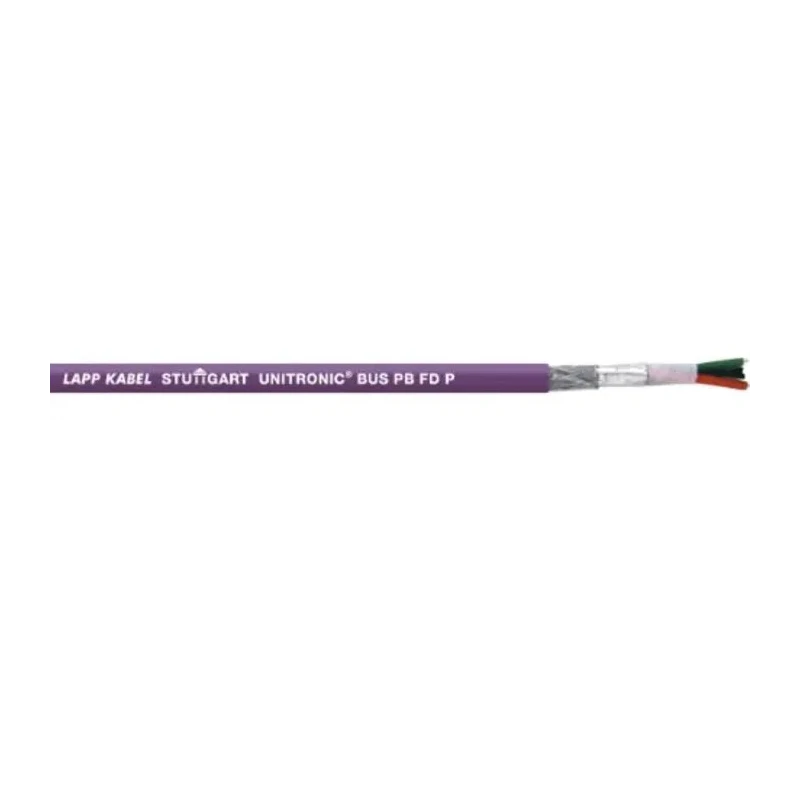

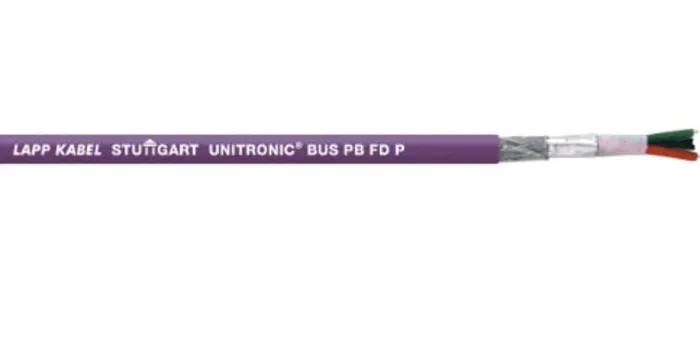

Lapp UNITRONIC BUS PB FD P Data Cable, 2 Cores, 0.32 mm² CSA 24 AWG, Screened, 250 V, Polyurethane Jacket, 100 m 2170222

Lapp 2170222 UNITRONIC BUS PB FD P Data Cable is a high-quality industrial data cable designed for reliable signal transmission in demanding environments. Featuring two cores with a 0.32 mm² cross-sectional area, the stranded bare copper conductors provide excellent electrical conductivity and mechanical flexibility.

The cable is fully screened with tin-plated copper wire braiding and plastic-laminated aluminium foil to reduce crosstalk and electromagnetic interference, ensuring robust signal integrity. Its outer polyurethane (PUR) sheath is flame retardant, oil-resistant, and halogen-free, providing exceptional durability and safety in industrial automation, sensor, and actuator applications.

With a rated operating voltage of 250 V and a wide temperature range from -40°C to +80°C, this cable is well-suited for environments with temperature extremes. The overall cable diameter of 8 mm allows for easy routing in confined spaces. The minimum bending radius of 65 mm ensures ease of installation without compromising cable integrity.

Conforming to the IEC 60332-1-2 fire behaviour standard, this cable prevents flame spread and reduces smoke emission, enhancing workplace safety. Its purple colour coding enables easy identification on assembly lines and within control panels.

2 cores with 0.32 mm² cross section for efficient power and signal wiring. Stranded bare copper conductors for optimal conductivity and ductility. Screened construction with tin-plated copper braiding and aluminium foil shield to minimise interference.

Polyurethane jacket offering flame retardancy, oil resistance, and mechanical protection. Operating voltage up to 250 V suitable for sensor and actuator data transmission. Temperature range from -40°C to 80°C for harsh industrial environments.

Complies with IEC 60332-1-2 for flame retardancy and safety compliance. Flexible cable with minimum bending radius of 65 mm for ease of installation. Length of 100 metres on a reel for versatile deployment. Made in Germany guaranteeing robust quality and manufacturing standards.

This Lapp UNITRONIC BUS PB FD P data cable is ideal for industrial automation, wind turbine wiring, sensor and actuator connections, and other demanding electrical applications requiring reliable signal quality and mechanical durability. Explore the extensive range of Sensor & Actuator Cables at EnvMart for your precise wiring and automation needs.
