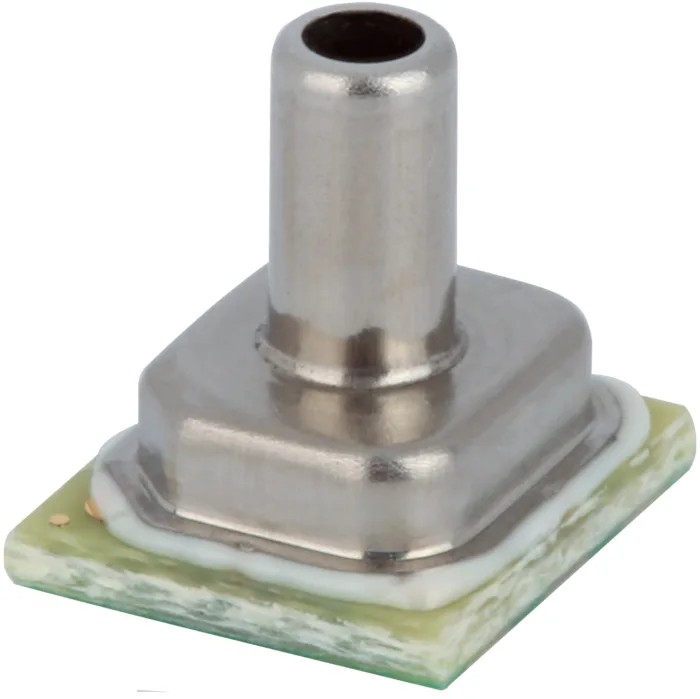

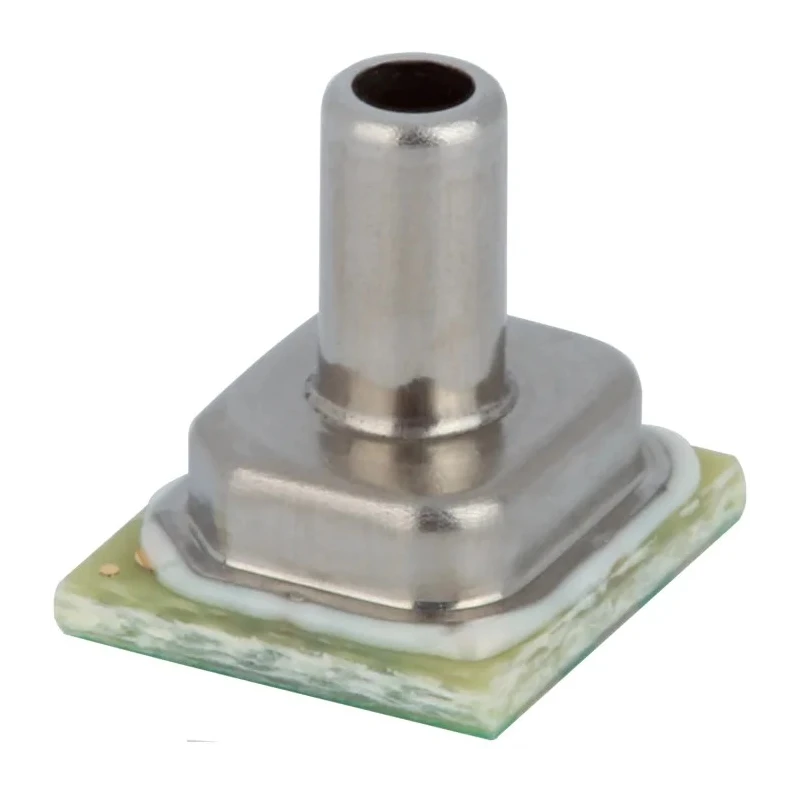

Honeywell Technologies Piezoresistive Pressure Sensor 103.42 kPa Max Operating Pressure ABP2LANT015PGSA3XX

Honeywell Technologies ABP2LANT015PGSA3XX is a compact piezoresistive pressure sensor engineered for industrial, medical, and commercial electronic systems requiring precise pressure and temperature measurement. With a maximum operating pressure of 103.42 kPa and an ambient operating temperature range from -40°C to 110°C, it excels in demanding environments.

This sensor delivers calibrated and temperature-compensated outputs available as 24-bit digital signals compatible with I2C and SPI communication protocols, as well as a ratiometric analogue output. The device updates pressure and temperature readings at an approximate rate of 200 Hz, enabling fast response times for critical applications.

Featuring ultra-low average power consumption at 0.01 mW, the sensor is ideal for battery-powered IoT devices and embedded systems. It includes a liquid-media protection option that applies a food-grade or fluorosilicone gel coating to sensitive electronics, enhancing durability and resistance against non-corrosive liquids and condensation.

Typical applications span healthcare equipment such as ventilators and patient monitors, industrial HVAC systems, pneumatic control applications, as well as consumer appliances like coffee machines and washing machines. It is also deployed in transportation sectors for CNG and air brake pressure monitoring, demonstrating its versatility across multiple industries.

This sensor provides calibrated and temperature-compensated pressure measurement with high accuracy. It supports digital output via I2C or SPI and ratiometric analogue output for versatile interfacing. Operating temperature range spans from -40°C to 110°C allowing wide thermal application use.

Ultra-low power consumption down to 0.01 mW average makes it suitable for battery-operated systems. Liquid-media gel coating option protects internal electronics for moisture and condensation resistance. Applications include medical ventilators, HVAC transmitters, IoT monitoring, and transportation systems.

Manufactured under ISO 9001-aligned processes, this sensor meets stringent quality and moisture sensitivity standards for board-mount electronic components. Its robust design and versatile output options make it suitable for a range of pneumatic and fluid power measurement needs in industrial, commercial, laboratory, and healthcare environments.
