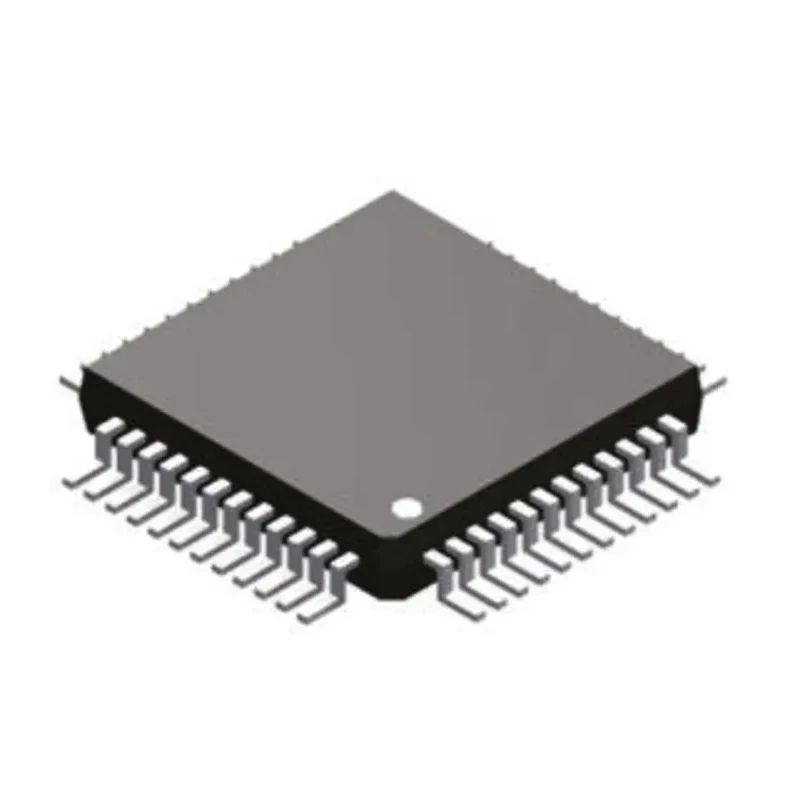

NXP Kinetis K1x ARM Cortex M4 Microcontroller 160kB FLASH, 18kB RAM, 50 MHz, 48-Pin LQFP MK10DX128VLF5
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.6mm |
| Length | 7mm |
| Model | MK10DX128VLF5 |
| Width | 7mm |
| Mount Type | Surface |
| Series | Kinetis K1x |
| Maximum Operating Temperature | 105°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 18kB |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.71V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 160kB |
| Maximum Clock Frequency | 50MHz |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | DSP |
| ADCs | 1 x 16 Bit |
| Program Memory Type | FLASH |
| DACs | 6 bit |
Key Features
- Integrates ARM Cortex M4 core for efficient processing performance.
- Equipped with 160kB flash memory and 18kB RAM for versatile applications.
- Operates at a maximum supply voltage of 3.6V with a range down to 1.71V.
- Includes 6-bit DACs and 2 analogue comparators to enhance analog signal processing.
- Compact 7 mm length and width with a height of 1.6 mm for space-constrained designs.
- Supports one 16-bit ADC and one timer for timing control.
- Wide operating temperature range from -40°C to 105°C suitable for industrial environments.
- Surface mount package type LQFP facilitates efficient PCB assembly.
Product Description
The NXP MK10DX128VLF5 microcontroller belongs to the Kinetis K1x series and features a 50 MHz ARM Cortex M4 core. It integrates 160kB of FLASH program memory and 18kB of RAM to support complex embedded applications with efficient processing performance.
This 48-pin LQFP package device measures 7 mm in length and width, with a height of 1.6 mm, making it suitable for compact electronic designs requiring surface mounting. Operating voltage ranges from 1.71 V to 3.6 V provide flexibility in power management.
The microcontroller includes 6-bit DACs and two analogue comparators, enhancing its capabilities for analog interfacing. It also offers a single 16-bit ADC and one timer to aid in precise timing and analog digital conversion.
Designed to support DSP instruction set architecture, this microcontroller caters to applications requiring digital signal processing functionality. It supports a wide operating temperature range from -40°C to 105°C, making it reliable for harsh industrial and automotive environments.
NXP's Kinetis K1x series is known for energy efficiency, flexible memory options including FLASH and FlexMemory, and comprehensive peripheral integration. The MK10DX128VLF5 is ideal for embedded systems in industrial control, consumer electronics, and automotive sectors.
Integrates ARM Cortex M4 core for efficient processing performance. Equipped with 160kB flash memory and 18kB RAM for versatile applications. Operates at a maximum supply voltage of 3.6V with a range down to 1.71V. Includes 6-bit DACs and 2 analogue comparators to enhance analog signal processing.
Compact 7 mm length and width with a height of 1.6 mm for space-constrained designs. Supports one 16-bit ADC and one timer for timing control. Wide operating temperature range from -40°C to 105°C suitable for industrial environments.
Surface mount package type LQFP facilitates efficient PCB assembly. Program memory type is FLASH allowing reliable non-volatile storage. Designed for embedded system applications requiring DSP instruction set architecture.
This microcontroller is suitable for use in industrial automation, control systems, automotive embedded solutions, and other advanced electronic applications. It is supported by a broad range of development tools and software to aid product design and implementation. Explore more NXP Microcontrollers and related components in EnvMart's comprehensive electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 50 MHz.
It features a program memory size of 160kB.
This microcontroller is equipped with 18kB of RAM.
It operates within a supply voltage range from 1.71V to 3.6V.
The MK10DX128VLF5 includes two analogue comparators.
It uses a surface mount package type LQFP.
The dimensions of this model are 7 mm in length and width, with a height of 1.6 mm.
It has a wide operating temperature range from -40°C to 105°C.
This model supports one timer for timing control.
It includes one 16-bit ADC for analog-to-digital conversion.
This microcontroller integrates an ARM Cortex M4 core architecture.
It supports a DSP instruction set architecture, suitable for digital signal processing applications.
